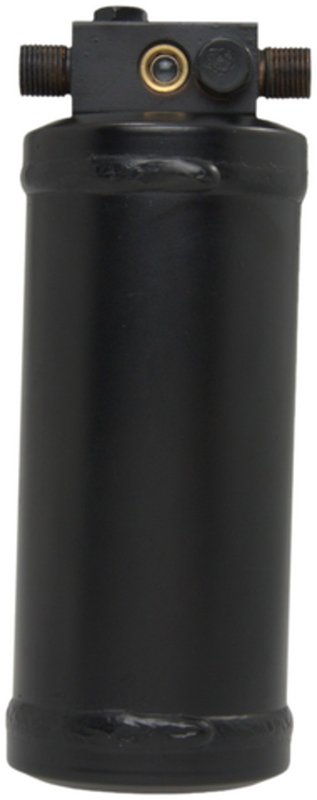

Four Seasons 33542 A/C Receiver Drier
| Brand | Four Seasons 33542 |
|---|---|
| Material | Steel |
| Inlet Filter Fitting Type | Male |
| Desiccant | Yes |
| Inlet Filter Fitting Thread Diameter | 0.625 |
| In Line Filter Material | Desiccant |
| In Line Filter Outlet Fitting Type | Male |
| Type | Washer not included |
| Body Diameter | 2.750 |
| Body Length | 9.000 |
| Moisture Indicator Window | No |
| Inlet Fitting Type | Male insert o-ring |
| Desiccant Replaceable | Not replaceable |
| Fuse Plug | Yes |
| Inlet Fitting Diameter | 0.375 |
| Outlet Fitting Type | Male insert o-ring |
| Mounting Bracket Included | Not included |
| Bracket? | W/o bracket |
| Connector B Type | Male insert o-ring |
| Connector Type | Male insert o-ring |
| Description | Filter driers |
| Dia. MM | 69.850 |
| Gasket / Seals? | Included |
| Inlet Fraction | 3/8 |
| Inlet IN | 0.375 |
| Inlet MM | 9.525 |
| Length MM | 228.600 |
| Meets / Exceeds OEM? | Yes |
| New or Reman | New |
| O-Ring A Number/Desc | [24606] / green o-ring |
| O-Ring A Quantity | 3 |
| Fits | — |
OE-spec replacement. Meets or exceeds OEM requirements for dependable system service.
Steel construction. Durable body with male insert O-ring connections for a secure seal.
Filter drier design. Built to remove moisture and protect the A/C system.
Cross-references Four Seasons 33542, Gates 7388 and Walker Exhaust 16444 for the same application. See all 33.
Four Seasons 33542 A/C Receiver Drier
Four Seasons 33542 is a steel A/C receiver drier built for HVAC systems that need moisture control, refrigerant filtration, and stable flow through the air conditioning circuit. This Filter Drier line is a direct-fit style replacement for service work on vehicles such as Honda Civic and Toyota Corolla applications where the receiver drier is part of the A/C repair.
Key Features
- Steel body construction for A/C system durability
- Male insert O-ring inlet and outlet connections
- Built-in desiccant to absorb moisture in the refrigerant circuit
- Sight glass included for visual system inspection
- Fuse plug and switch port included
- Meets or exceeds OEM requirements
- New part, not remanufactured
- Four Seasons 33542 cross-references Gates 7388 for the same application
Product Details
This Four Seasons Filter Drier is a steel receiver drier with a 2.750-inch body diameter and 9.000-inch body length. It uses 3/8-inch inlet and outlet fittings with male insert O-ring connections, includes gasket/seals, and is supplied without a mounting bracket or service port. The desiccant is not replaceable, and the unit includes a sight glass plus a fuse plug for added system service support. Four Seasons 33542 is a practical OE-style replacement for A/C repair jobs where moisture removal and refrigerant cleanliness are critical.
Common A/C Problems It Can Address
- Moisture contamination inside the refrigerant circuit
- Reduced cooling performance caused by restricted flow
- Debris buildup in the A/C system after component replacement
- Service issues related to a failing receiver drier
- Inspection needs where a sight glass is used during diagnosis
Installation Notes
Replace the receiver drier whenever the A/C system has been opened for major service, compressor replacement, or contamination cleanup. Verify inlet and outlet sizing, O-ring condition, and switch-port requirements before installation. Use the correct refrigerant oil and follow the vehicle service procedure for evacuation and recharge. Fits Honda Civic and Toyota Corolla applications only when the vehicle-specific HVAC layout calls for this receiver drier style.
Quality Assurance
Four Seasons 33542 is a new filter drier that meets or exceeds OEM specifications for the listed application type. It is built as a steel A/C receiver drier for professional HVAC service and replacement work.
