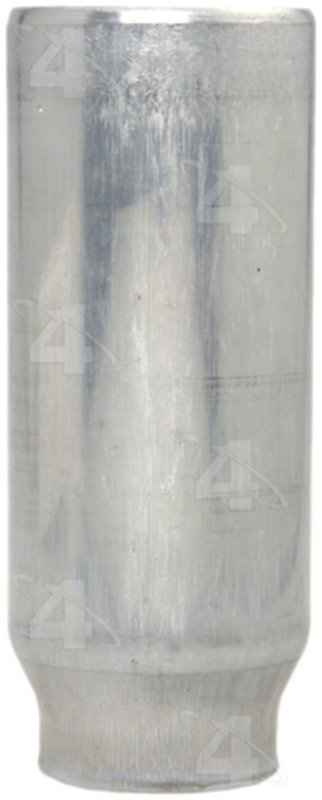

Four Seasons 33569 A/C Receiver Drier
| Brand | Four Seasons 33569 |
|---|---|
| Body Diameter | 2.375 |
| Body Length | 7.000 |
| Bracket? | w/o Bracket |
| Connector B Type | Pad Mount |
| Connector Type | Pad Mount |
| Description | Filter Driers |
| Desiccant | Yes |
| Desiccant Replaceable | Not Replaceable |
| Dia. MM | 60.325 |
| Fuse Plug | No |
| Gasket / Seals? | Included |
| In Line Filter Material | Desiccant |
| In Line Filter Outlet Fitting Type | Pad Mount |
| Inlet Filter Fitting Type | Pad Mount |
| Inlet Fitting Diameter | 0.375 |
| Inlet Fitting Type | Pad Mount |
| Inlet IN | 0.375 |
| Inlet MM | 10.000 |
| Length MM | 177.800 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Moisture Indicator Window | No |
| Mounting Bracket Included | Not Included |
| New or Reman | New |
| O-Ring A Number/Desc | [24646] / Green Round O/Ring |
| Outlet Fitting Type | Pad Mount |
| Outlet Fraction | 3/8 |
| Outlet IN | 0.375 |
| Outlet MM | 10.000 |
| Overall Depth IN | 7.000 |
| Overall Depth MM | 177.800 |
| P. R. V.? | No |
| Pad Mount | w/ Pad Mount |
| Service Port? | w/o Service Port |
| Sight Glass? | No |
| Stud? | No |
| Style | Aluminum Filter Drier w/ Pad Mount |
| Switch Port? | w/o Switch Port |
| Type | W/ Pad Mount |
| Type | Washer Not Included |
| Product line | Filter Drier |
| Fits | Honda · 3 vehicles |
OE-grade replacement. Meets or exceeds OEM requirements for dependable service.
Aluminum construction. Lightweight housing resists corrosion in HVAC use.
Desiccant filter drier. Helps remove moisture from the refrigerant system.
Cross-references AMS Automotive 4328, Continental 49110 and Four Seasons 33569 for the same application. See all 30.
Four Seasons 33569 Filter Drier
Four Seasons 33569 is an aluminum A/C receiver drier built for pad mount applications and direct replacement service. It is a new filter drier that meets or exceeds OEM requirements and includes the gasket/seals specified in the product data.
Key Features
- Aluminum filter drier with pad mount inlet and outlet fittings
- Desiccant included to help remove moisture from the A/C system
- New construction with non-replaceable desiccant
- 3/8 in. inlet and outlet connections
- Body diameter: 2.375 in.; overall length: 7.000 in.
- No moisture indicator window, service port, sight glass, fuse plug, or switch port
- Washer not included; gasket/seals included
- Meets or exceeds OEM specifications
Product Details
The Four Seasons Filter Drier line is built for HVAC service where moisture control and refrigerant cleanliness matter. Part number 33569 uses an aluminum body with pad mount connectors and a desiccant charge to support system filtration in the receiver drier location. This unit is a direct-fit style replacement for select Honda Civic and Honda Civic del Sol applications, including Fits 1992-1993 Honda Civic, N/A and Fits 1993 Honda Civic del Sol, N/A. This part cross-references UAC RD8103C for the same application.
Common Problems This Part Can Address
- Moisture contamination in the A/C refrigerant circuit
- Reduced cooling performance caused by a saturated receiver drier
- Debris accumulation in the HVAC system
- Service replacement for a worn or aging filter drier
- Leak concerns at the pad mount connection points when seals are replaced correctly
Installation Notes
Verify pad mount fitment, inlet and outlet size, and vehicle application before installation. Replace the receiver drier any time the A/C system has been opened for major service, compressor replacement, or contamination cleanup. Use the included gasket/seals and confirm proper sealing surfaces are clean and undamaged. Because the desiccant is not replaceable, install the unit as a complete service part rather than attempting internal repair.
Quality Assurance
Four Seasons 33569 is a new replacement part built to meet or exceed OEM specifications for the listed applications. The aluminum construction, pad mount design, and integrated desiccant support consistent A/C service performance in compatible Honda Civic and Honda Civic del Sol vehicles.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1993 | Honda | Civic | N/A | Filter Drier |
| 1993 | Honda | Civic del Sol | N/A | Filter Drier |
| 1992 | Honda | Civic | N/A | Filter Drier |
