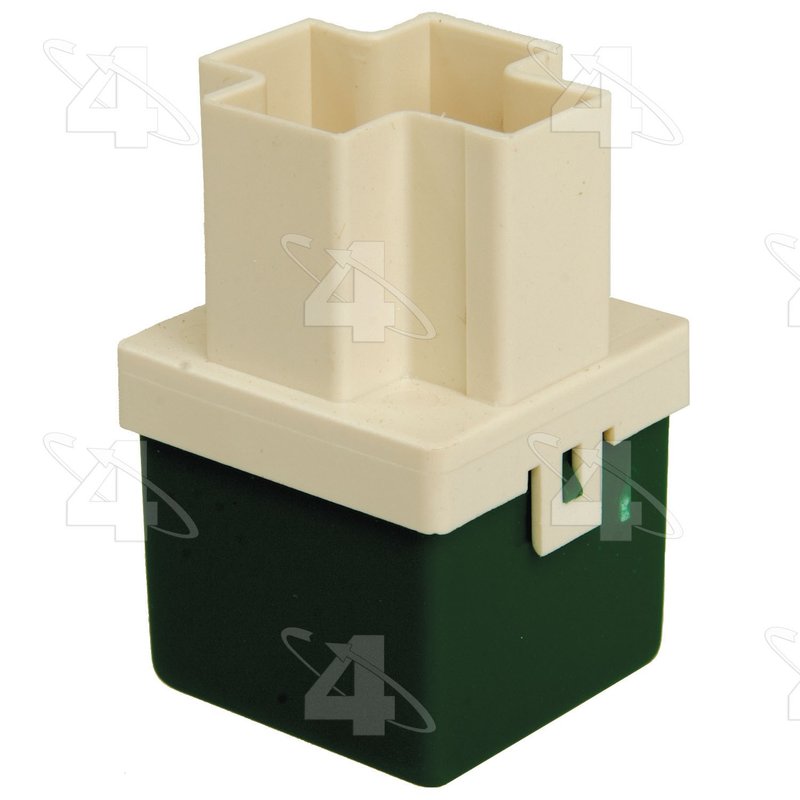

Four Seasons 36023 Engine Cooling Fan Motor Relay

Reliable Engine Cooling Fan Motor Relay for Select Toyota and Lexus Models

The Four Seasons Relay 36023 is a 12-volt engine cooling fan motor relay designed to meet or exceed OEM specifications. Engineered for vehicles such as the Toyota Camry, 4Runner, Corolla, and Lexus ES300, GS300, and GS400, this relay ensures consistent performance in your vehicle's cooling system.

• 12 Volt standard relay with a 20 amp amperage rating
• Blade terminal type with 4 terminals (2 male, 2 female)
• Green color with a skirt design for secure fitment
• Connector features a unique shape for proper installation
• Meets or exceeds OEM quality standards
• Compatible with Chevrolet, Geo, Lexus, and Toyota models

About the Four Seasons Relay Product Line

The Relay product line from Four Seasons focuses on delivering reliable electrical components for engine cooling systems. The Relay 36023 is part of this line, offering a standard style relay that integrates seamlessly with factory wiring harnesses. This ensures dependable operation of the cooling fan motor relay function across multiple vehicle makes and models.

Product Details and Specifications

This engine cooling fan motor relay operates at 12 volts and supports a 20 amp load, suitable for managing the electrical demands of cooling fans in various vehicles. The relay features a blade terminal type with four terminals, including both male and female connectors, designed for secure and proper electrical connections. The green-colored relay includes a skirt for added stability during installation. Its unique connector shape helps prevent incorrect installation, maintaining system integrity.

Common Applications and Problem Resolution

• Restores proper operation of engine cooling fans in Toyota Camry and Lexus GS430
• Resolves intermittent fan motor issues in Toyota 4Runner and Sienna
• Prevents overheating caused by faulty relay in Geo Prizm and Chevrolet models
• Eliminates electrical faults related to cooling fan relay failure in Lexus ES300 and Toyota RAV4
• Ensures consistent fan motor engagement in Toyota Celica and Avalon

Installation Notes and Tips

When installing the Four Seasons Relay 36023, ensure the vehicle's ignition is off and the battery is disconnected to avoid electrical hazards. Verify the relay's terminal configuration matches the vehicle's wiring harness. The blade terminals and unique connector shape aid in correct orientation. No bracket is required for mounting, but the skirt design helps secure the relay in place. Consult the vehicle's service manual for specific relay location and replacement procedures.

Quality Assurance and Warranty

The Four Seasons Relay 36023 is manufactured to meet or exceed OEM standards, providing reliable performance and durability. This relay undergoes rigorous testing to ensure compatibility and longevity in engine cooling applications. Please refer to Four Seasons' warranty policy for coverage details.
