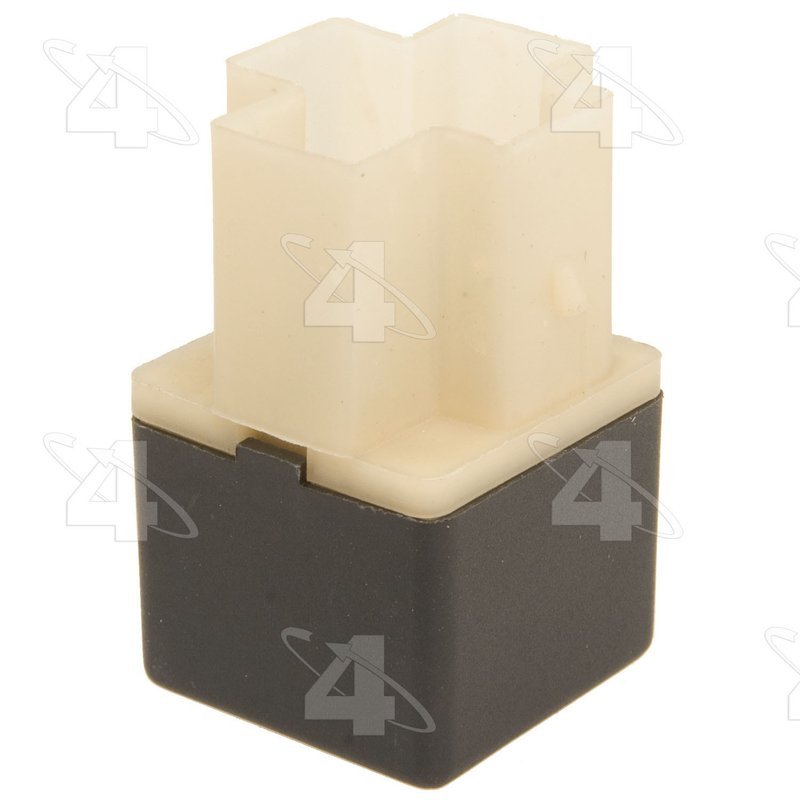

Four Seasons 36025 A/C Compressor Cut-Out Relay

Four Seasons 36025 A/C Compressor Cut-Off Relay

The Four Seasons Relay line delivers OE-style electrical control for HVAC and cooling circuits. This Four Seasons 36025 A/C compressor cut-off relay is a 12-volt standard relay with a 4-terminal blade design, built for Toyota and Lexus applications that use a female connector and male blade terminals.

Key Features

• 12-volt standard relay for HVAC and cooling circuit control
• 4 blade terminals with female connector and male terminal design
• 30 amp amperage rating for relay circuit operation
• Black housing with skirted standard relay style
• Meets or exceeds OEM requirements
• Compatible with select Toyota, Lexus, and Geo applications

Product Details

Four Seasons part number 36025 is an A/C compressor cut-off relay used in HVAC and engine cooling relay circuits on select Toyota, Lexus, and Geo vehicles. In many applications, this relay is also referenced as an engine cooling fan motor relay or radiator fan motor relay, depending on the vehicle and relay block position. The Relay product line focuses on standard replacement electrical components that match the original relay format and terminal layout used in factory systems.

This part cross-references Dorman - HELP 47026 for the same application. It also cross-references Four Seasons 20133 for select applications.

What It May Help Resolve

• A/C compressor not engaging
• Intermittent HVAC relay operation
• Cooling fan relay circuit failure
• Radiator fan motor relay issues
• Electrical switching problems in the relay block

Fitment

• Fits 2005-2007 Toyota Highlander, relay.
• Fits 2001-2002 Toyota Highlander, relay.
• Fits 2003-2005 Toyota Celica, stamping no. 90987-02009; relay.
• Fits 2001-2005 Toyota Highlander, engine cooling fan motor relay; position no. 1 in relay block; relay.
• Fits 2001-2005 Toyota Highlander, radiator fan motor relay; position no. 3 in relay block; relay.
• Fits 2001-2002 Toyota Celica, engine cooling fan motor relay; position no. 1 in relay block; relay.
• Fits 1995-2000 Lexus LS400, A/C compressor cut-off relay also known as engine cooling fan motor relay; relay.
• Fits 1992-2000 Toyota Celica, relay.
• Fits 1992-2000 Toyota Celica, A/C compressor cut-off relay also known as engine cooling fan motor relay; relay.
• Fits 1992-2000 Lexus SC300, relay.
• Fits 1992-2000 Lexus SC300, A/C compressor cut-off relay also known as engine cooling fan motor relay; relay.
• Fits 1992-2000 Lexus SC400, relay.
• Fits 1992-2000 Lexus SC400, A/C compressor cut-off relay also known as engine cooling fan motor relay; relay.
• Fits 1994-2000 Toyota Celica, relay.
• Fits 1995-1999 Toyota Avalon, engine cooling fan motor relay; position no. 1 in relay block; relay.
• Fits 1995-1999 Toyota Avalon, A/C compressor cut-off relay also known as engine cooling fan motor relay; relay.
• Fits 1995-1999 Toyota Avalon, fits vehicles with air conditioning systems; relay.
• Fits 1990-1999 Toyota Celica, fits vehicles with air conditioning systems; relay.
• Fits 1996-1999 Toyota Paseo, radiator fan motor relay; position no. 3 in relay block; relay.
• Fits 1993-1998 Lexus GS300, A/C compressor cut-off relay also known as engine cooling fan motor relay; relay.
• Fits 1998 Toyota Corolla, relay.
• Fits 1991-1992 Toyota Corolla, relay.
• Fits 1996-1998 Toyota Corolla, fits vehicles with air conditioning systems; relay.
• Fits 1996-1998 Toyota RAV4, relay.
• Fits 1996-1998 Toyota RAV4, fits vehicles with air conditioning systems; relay.
• Fits 1994-1998 Toyota Supra, relay.
• Fits 1994-1998 Toyota Supra, A/C compressor cut-off relay also known as engine cooling fan motor relay; relay.
• Fits 1994-1997 Geo Prizm, relay.
• Fits 1993-1997 Geo Prizm, radiator fan motor relay; OE no. 94853220; relay.
• Fits 1993-1997 Geo Prizm, fits vehicles with air conditioning systems; relay.
• Fits 1993-1997 Lexus GS300, relay.
• Fits 1994-1997 Toyota Celica, position no. 2 in relay block - A/C compressor cut-off relay; relay.
• Fits 1992-1996 Lexus ES300, relay.
• Fits 1992-1996 Toyota Camry, relay.
• Fits 1995-1996 Toyota Camry, engine cooling fan motor relay; position no. 1 in relay block; relay.
• Fits 1995-1996 Toyota Camry, position no. 2 in relay block - A/C compressor cut-off relay; relay.
• Fits 1992-1996 Toyota Camry, fits vehicles with air conditioning systems; relay.
• Fits 1996 Toyota Paseo, relay.
• Fits 1994-1996 Toyota Supra, fits vehicles with air conditioning systems; relay.
• Fits 1992-1995 Lexus ES300, A/C compressor cut-off relay also known as engine cooling fan motor relay; relay.
• Fits 1991-1995 Toyota MR2, relay.
• Fits 1994-1995 Toyota MR2, A/C compressor cut-off relay also known as engine cooling fan motor relay; relay.
• Fits 1992-1995 Toyota Paseo, 4-terminal HVAC wiring relay; relay.
• Fits 1994 Lexus LS400, relay.
• Fits 1991-1994 Toyota MR2, fits vehicles with air conditioning systems; relay.
• Fits 1991-1994 Toyota Tercel, 4-terminal HVAC wiring relay; relay.
• Fits 1992-1993 Toyota 4Runner, relay.
• Fits 1991-1992 Toyota Pickup, relay.

Installation Notes

Verify the relay block position, terminal layout, and connector style before installation. This 4-terminal blade relay is used in specific HVAC and cooling relay locations, so match the original part number, stamping, and application notes for your Toyota Highlander, Toyota Camry, Lexus ES300, or related vehicle before replacement.

Quality Assurance

Four Seasons states this relay meets or exceeds OEM requirements. The Relay line is built as a standard replacement electrical component for factory-style fit and function in the specified applications.
