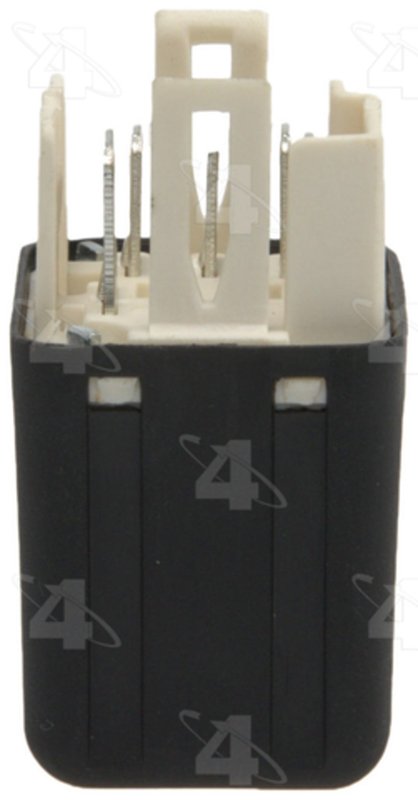

Four Seasons 36036 A/C Compressor Cut-Out Relay

Reliable A/C Compressor Cut-Off Relay for Select Vehicles

The Four Seasons Relay 36036 is a 12-volt A/C compressor cut-off relay designed to meet or exceed OEM standards. Engineered for durability and consistent performance, this relay is compatible with various Chevrolet, Dodge, Geo, Lexus, Mitsubishi, and Toyota models, including the Camry, Tacoma, and 4Runner.

Key Features of Four Seasons Relay 36036

• Voltage: 12V for standard automotive electrical systems
• Amperage rating: 60 amps to handle high current loads
• Terminal type: Blade terminals with 5 terminal quantity
• Connector gender: Female connector with male terminals
• Color: Black with a skirt design for added protection
• Standard relay style without bracket
• Connector shape: Unique design for secure fitment
• Meets or exceeds OEM specifications for reliable operation

About the Four Seasons Relay Product Line

The Relay product line from Four Seasons focuses on providing standard relays that ensure proper electrical control within HVAC systems. The Relay 36036 is part of this line, offering a dependable solution for A/C compressor cut-off functions. This line emphasizes compatibility and quality, making it suitable for a range of vehicle makes and models requiring precise relay performance.

Detailed Product Description

This A/C compressor cut-off relay is engineered to control the compressor clutch engagement in automotive HVAC systems. With a 12-volt rating and a 60-amp capacity, it supports the electrical demands of air conditioning systems in vehicles such as the Toyota Camry, Lexus RX300, and Chevrolet Pickup. The blade terminal design with five terminals ensures secure electrical connections, while the female connector and male terminals provide proper mating with factory wiring harnesses. The black color and skirt design add durability and protection against environmental factors. This relay does not include a mounting bracket but is designed for straightforward installation in compatible vehicles.

Common Applications and Issues Addressed

• Prevents A/C compressor from running continuously, protecting the system
• Resolves intermittent compressor engagement problems
• Eliminates electrical faults caused by relay failure
• Ensures proper HVAC system cycling in Chevrolet, Dodge, and Toyota models
• Supports reliable operation in Lexus and Mitsubishi air conditioning systems

Installation Notes and Tips

• Verify vehicle compatibility with Chevrolet, Dodge, Geo, Lexus, Mitsubishi, or Toyota models before installation
• Ensure the relay terminals match the factory wiring harness connectors
• Disconnect the battery before replacing the relay to avoid electrical shorts
• Check for any corrosion or damage on terminal connections during installation
• Secure the relay in the designated relay box or holder without a bracket

Quality Assurance and Warranty

The Four Seasons Relay 36036 is manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. This part undergoes quality control testing to maintain consistent electrical function. Warranty coverage details should be confirmed with the parts provider or manufacturer, as they may vary by region or distributor.
