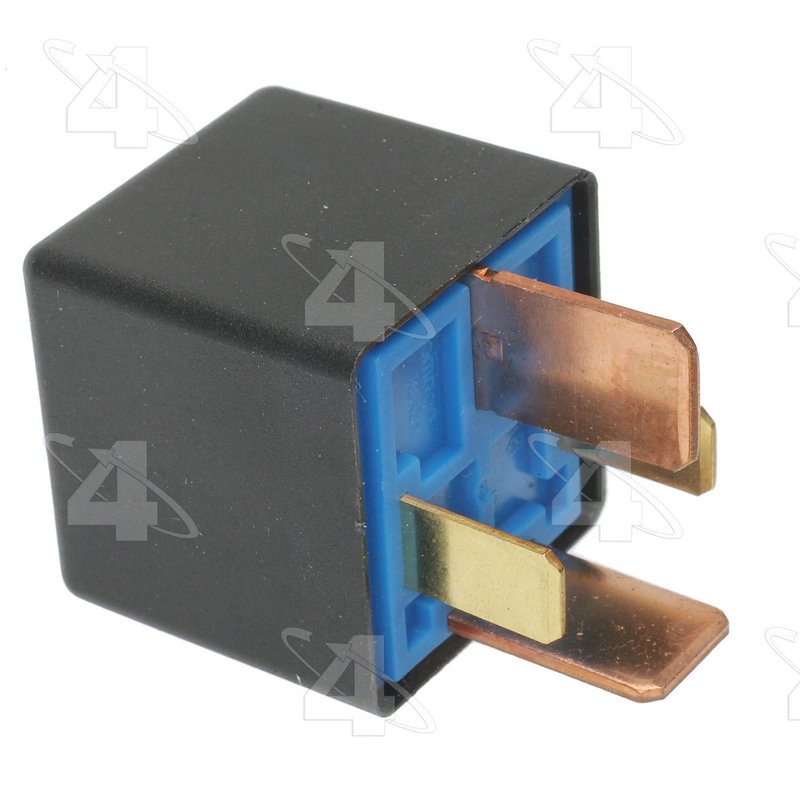

Four Seasons 36159 Engine Cooling Fan Motor Relay
| Brand | Four Seasons 36159 |
|---|---|
| Amperage Rating | 70 |
| Bracket? | No |
| Color | Black |
| Connector Gender | Male |
| Connector Qty | 1 |
| Connector Shape | Square |
| Description | Relays |
| Meets / Exceeds OEM? | Yes |
| Skirt? | No |
| Style | Standard Relay |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Type | Standard |
| Voltage | 12 |
| Product line | Relay |
| Fits | Mazda and Hyundai · 57 vehicles |
OE direct replacement. Meets OEM requirements for dependable relay performance.
Standard relay. A straightforward replacement for cooling fan control circuits.
12-volt, 70-amp rating. Built for demanding electrical loads with blade terminals.
Cross-references Four Seasons 20354, Four Seasons 36159 and 20769 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Engine Cooling Fan Relay for Mazda and Hyundai
Four Seasons Relay 36159 is a standard 12-volt engine cooling fan motor relay built for direct-fit replacement in a range of Mazda and Hyundai applications. With a 70 amp rating, 4 blade terminals, and a square single-connector design, it supports reliable electrical switching for cooling fan and related HVAC relay circuits.
Four Seasons Relay line components are built for OE-style electrical service and are specified to meet or exceed OEM requirements. This relay is a practical replacement for vehicles such as the Mazda CX-9, Mazda 6, and Hyundai Veracruz when the original relay shows signs of failure.
Key Features
- Part number: 36159
- 12-volt standard relay design
- 70 amp amperage rating
- 4 blade terminals with male connector and male terminal ends
- Single square connector, black housing
- Meets or exceeds OEM requirements
- Standard relay style for cooling fan and HVAC relay applications
Application Details
Compatible With Mazda CX-9, Mazda MX-5, Mazda MX-5 Miata, Mazda 2, Mazda 5, Mazda 3, Mazda 3 Sport, Mazda CX-7, Mazda 6, and Hyundai Azera, Elantra, Veracruz, and Tucson applications listed in the fitment data. Fits 2007-2017 Mazda CX-9, relay; Fits 2015-2016 Mazda MX-5, relay; Fits 2015-2016 Mazda MX-5 Miata, relay; Fits 2011-2012 Mazda 2, relay; Fits 2012 Mazda 5, relay; Fits 2011 Mazda 3, relay; Fits 2011 Mazda 3 Sport, relay; Fits 2011 Mazda CX-9, w/o towing package; relay; Fits 2008-2010 Hyundai Azera, relay; Fits 2008-2010 Hyundai Elantra, condenser fan relay, high speed; relay; Fits 2008-2010 Hyundai Veracruz, A/C control, black; relay; Fits 2008-2010 Hyundai Veracruz, condenser fan relay, high speed; relay; Fits 2010 Mazda 3, 4-terminal HVAC wiring relay; relay; Fits 2010 Mazda 3 Sport, 4-terminal HVAC wiring relay; relay; Fits 2007-2010 Mazda CX-7, relay; Fits 2008-2009 Hyundai Tucson, high speed; relay; Fits 2003-2008 Mazda 6, relay; Fits 2003-2006 Mazda 6, A/C control, new part; relay.
This part cross-references 20769 and RE8415 for the same application.
Common Problems This Relay Can Address
- Cooling fan not switching on at the correct time
- Intermittent condenser fan operation
- A/C control relay electrical faults
- High-speed fan circuit failure
- HVAC relay switching issues
Installation Notes and Tips
Verify the relay connector style, terminal count, and amperage rating before installation. Match the vehicle application exactly, especially on Mazda CX-9 models with and without towing package and Hyundai Veracruz configurations with different relay functions. Inspect the relay socket for heat damage, corrosion, or loose terminals before installing the replacement.
Quality Assurance
Four Seasons 36159 is specified as an OEM-equivalent relay that meets or exceeds OEM requirements. The Four Seasons Relay line is used for direct replacement electrical service in cooling and HVAC relay applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2017 | Mazda | CX-9 | — | — | N/A | Relay |
| 2016 | Mazda | CX-9 | — | — | N/A | Relay |
| 2016 | Mazda | MX-5 | — | — | N/A | Relay |
| 2016 | Mazda | MX-5 Miata | — | — | N/A | Relay |
| 2015 | Mazda | CX-9 | — | — | N/A | Relay |
| 2015 | Mazda | MX-5 | — | — | N/A | Relay |
| 2015 | Mazda | MX-5 Miata | — | — | N/A | Relay |
| 2014 | Mazda | CX-9 | — | — | N/A | Relay |
| 2013 | Mazda | CX-9 | — | — | N/A | Relay |
| 2012 | Mazda | 2 | — | — | N/A | Relay |
| 2012 | Mazda | 5 | — | — | N/A | Relay |
| 2012 | Mazda | CX-9 | — | — | N/A | Relay |
| 2011 | Mazda | 2 | — | — | N/A | Relay |
| 2011 | Mazda | 3 | — | — | N/A | Relay |
| 2011 | Mazda | 3 Sport | — | — | N/A | Relay |
| 2011 | Mazda | CX-9 | — | — | N/A | Relay |
| 2011 | Mazda | CX-9 | — | — | N/A | w/o Towing Package; Relay |
| 2010 | Hyundai | Azera | — | — | N/A | Relay |
| 2010 | Hyundai | Elantra | — | — | N/A | Condenser Fan Relay; High Speed; Relay |
| 2010 | Hyundai | Veracruz | — | — | N/A | A/C Control; Black; Relay |
| 2010 | Hyundai | Veracruz | — | — | N/A | Condenser Fan Relay; High Speed; Relay |
| 2010 | Mazda | 3 | — | — | N/A | 4-terminal HVAC wiring relay; Relay |
| 2010 | Mazda | 3 Sport | — | — | N/A | 4-terminal HVAC wiring relay; Relay |
| 2010 | Mazda | CX-7 | — | — | N/A | Relay |
| 2010 | Mazda | CX-9 | — | — | N/A | Relay |
| 2009 | Hyundai | Azera | — | — | N/A | Relay |
| 2009 | Hyundai | Elantra | — | — | N/A | Condenser Fan Relay; High Speed; Relay |
| 2009 | Hyundai | Tucson | — | — | N/A | High Speed; Relay |
| 2009 | Hyundai | Veracruz | — | — | N/A | A/C Control; Black; Relay |
| 2009 | Hyundai | Veracruz | — | — | N/A | Condenser Fan Relay; High Speed; Relay |
| 2009 | Mazda | CX-7 | — | — | N/A | Relay |
| 2009 | Mazda | CX-9 | — | — | N/A | Relay |
| 2008 | Hyundai | Azera | — | — | N/A | Relay |
| 2008 | Hyundai | Elantra | — | — | N/A | Condenser Fan Relay; High Speed; Relay |
| 2008 | Hyundai | Tucson | — | — | N/A | High Speed; Relay |
| 2008 | Hyundai | Veracruz | — | — | N/A | A/C Control; Black; Relay |
| 2008 | Hyundai | Veracruz | — | — | N/A | Condenser Fan Relay; High Speed; Relay |
| 2008 | Mazda | 6 | — | — | N/A | Relay |
| 2008 | Mazda | 6 | 3.0L | V6 | N/A | Relay |
| 2008 | Mazda | CX-7 | — | — | N/A | Relay |
| 2008 | Mazda | CX-9 | — | — | N/A | Relay |
| 2007 | Mazda | 6 | — | — | N/A | Relay |
| 2007 | Mazda | 6 | 3.0L | V6 | N/A | Relay |
| 2007 | Mazda | CX-7 | — | — | N/A | Relay |
| 2007 | Mazda | CX-9 | — | — | N/A | Relay |
| 2006 | Mazda | 6 | — | — | N/A | Relay |
| 2006 | Mazda | 6 | — | — | N/A | A/C Control; New Part; Relay |
| 2006 | Mazda | 6 | 3.0L | V6 | N/A | Relay |
| 2005 | Mazda | 6 | — | — | N/A | Relay |
| 2005 | Mazda | 6 | — | — | N/A | A/C Control; New Part; Relay |
| 2005 | Mazda | 6 | 3.0L | V6 | N/A | Relay |
| 2004 | Mazda | 6 | — | — | N/A | Relay |
| 2004 | Mazda | 6 | — | — | N/A | A/C Control; New Part; Relay |
| 2004 | Mazda | 6 | 3.0L | V6 | N/A | Relay |
| 2003 | Mazda | 6 | — | — | N/A | Relay |
| 2003 | Mazda | 6 | — | — | N/A | A/C Control; New Part; Relay |
| 2003 | Mazda | 6 | 3.0L | V6 | N/A | Relay |
