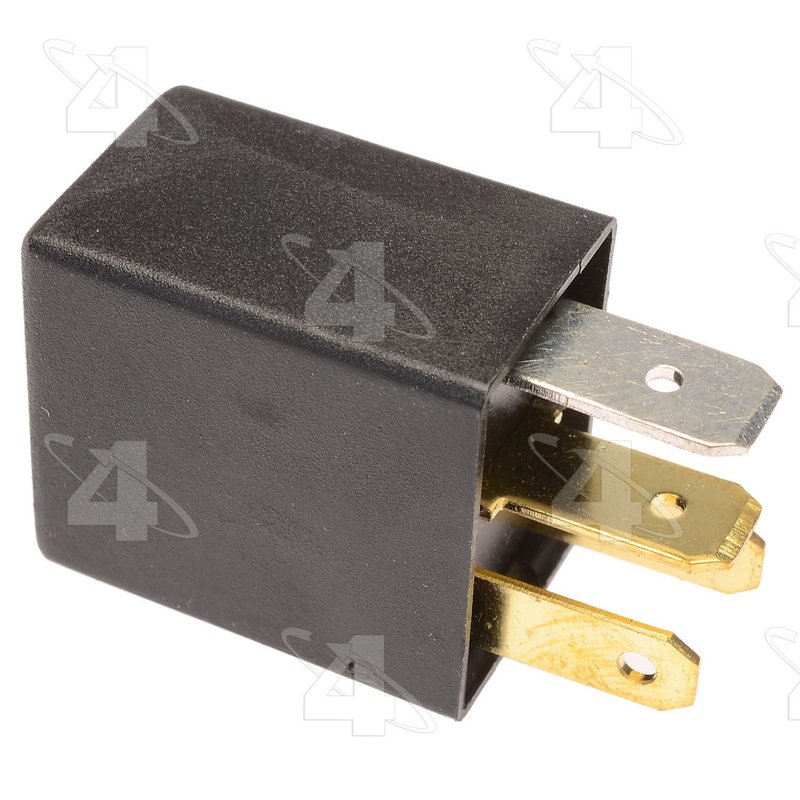

Four Seasons 36193 Engine Cooling Fan Motor Relay
| Brand | Four Seasons 36193 |
|---|---|
| Amperage Rating | 20 |
| Bracket? | No |
| Color | Black |
| Connector Gender | Male |
| Connector Qty | 1 |
| Connector Shape | Rectangular |
| Description | Relays |
| Meets / Exceeds OEM? | Yes |
| Style | Standard Relay |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Type | Standard |
| Product line | Relay |
| Fits | Hyundai · 22 vehicles |
OE direct replacement. Meets or exceeds OEM requirements for dependable relay performance.
Standard relay. A straightforward replacement for cooling system electrical control.
4-terminal design. Rectangular male connector for a secure electrical connection.
Cross-references Four Seasons 36193, UAC RE8410C and 20500 for the same application. See all 7.
Engine Cooling Fan Motor Relay for Hyundai Applications
Four Seasons Relay 36193 is a standard engine cooling fan motor relay built for direct electrical control in supported Hyundai applications. It meets or exceeds OEM requirements and uses a 4-terminal, male connector layout with a rectangular connector shape for a straightforward replacement.
Key Features
- Four Seasons Relay line standard relay construction
- Part number 36193 for accurate ordering and replacement matching
- 20 amp amperage rating
- 4 terminals with male connector and male terminal design
- 1 rectangular connector in black housing
- Meets or exceeds OEM specifications
- Standard type relay with no bracket
Product Details
Four Seasons 36193 is an engine cooling fan motor relay used in Hyundai cooling and A/C relay circuits, including applications listed as A/C compressor cut-out relay and condenser fan relay. This relay supports electrical switching for the cooling fan system and related compressor control functions in vehicles such as the Hyundai Azera, Santa Fe, Tucson, Tiburon, and Elantra. The Four Seasons Relay product line focuses on standard relay replacement parts that match common OE-style electrical configurations.
This part cross-references UAC RE8410C for the same application.
Common Issues This Relay Can Address
- Cooling fan not switching on when commanded
- Intermittent fan operation in Hyundai cooling systems
- A/C compressor cut-out relay failure
- Condenser fan relay electrical faults
- Relay-related overheating or compressor control issues
Installation Notes and Fitment
- Fits 2008-2010 Hyundai Azera, N/A; A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.
- Fits 2008-2010 Hyundai Santa Fe, N/A; A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.
- Fits 2008-2009 Hyundai Tucson, N/A; A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.
- Fits 2003-2008 Hyundai Tiburon, N/A; A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.
- Fits 2001 Hyundai Tiburon, N/A; A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.
- Fits 2008 Hyundai Tiburon, N/A; Condenser Fan Relay; High Speed.
- Fits 2001-2006 Hyundai Elantra, N/A.
Verify the connector style, terminal count, and amperage rating before installation. Confirm the relay location in the vehicle’s electrical system and compare the original part number 36193 or listed interchange references before replacement.
Quality Assurance
Four Seasons 36193 is built to meet or exceed OEM specifications for the listed Hyundai applications. The standard relay design supports reliable electrical switching in cooling fan and compressor control circuits.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Hyundai | Azera | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2010 | Hyundai | Santa Fe | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2009 | Hyundai | Azera | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2009 | Hyundai | Santa Fe | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2009 | Hyundai | Tucson | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2008 | Hyundai | Azera | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2008 | Hyundai | Santa Fe | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2008 | Hyundai | Tiburon | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2008 | Hyundai | Tiburon | N/A | Condenser Fan Relay; High Speed; Relay |
| 2008 | Hyundai | Tucson | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2007 | Hyundai | Tiburon | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2006 | Hyundai | Elantra | N/A | Relay |
| 2006 | Hyundai | Tiburon | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2005 | Hyundai | Elantra | N/A | Relay |
| 2005 | Hyundai | Tiburon | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2004 | Hyundai | Elantra | N/A | Relay |
| 2004 | Hyundai | Tiburon | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2003 | Hyundai | Elantra | N/A | Relay |
| 2003 | Hyundai | Tiburon | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2002 | Hyundai | Elantra | N/A | Relay |
| 2001 | Hyundai | Elantra | N/A | Relay |
| 2001 | Hyundai | Tiburon | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
