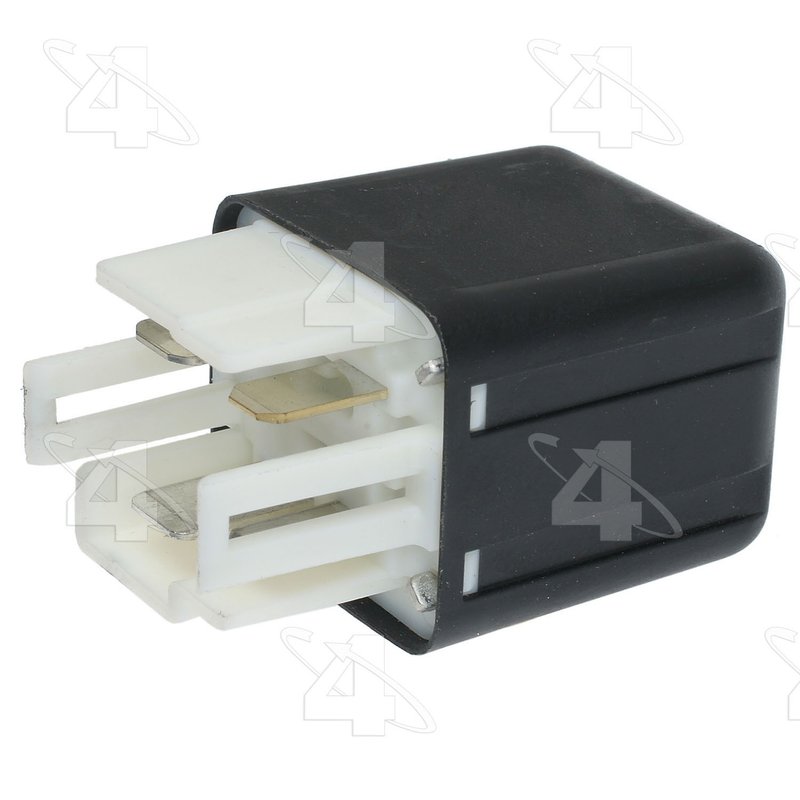

Four Seasons 36200 A/C Compressor Control Relay

Reliable A/C Compressor Control Relay for Toyota Avalon

The Four Seasons Relay 36200 is a 12-volt A/C compressor control relay designed specifically for Toyota Avalon models. Engineered to meet or exceed OEM standards, this standard relay ensures consistent performance and durability in your vehicle's HVAC system.

• Voltage: 12V for optimal electrical compatibility
• Terminal Type: Blade terminals for secure connections
• Terminal Quantity: 4 terminals to support reliable circuit control
• Connector Gender: Female connector with male terminals
• Amperage Rating: 20 amps suitable for A/C compressor control
• Color: Black housing for easy identification
• Connector Shape: Unique design for precise fitment
• Meets or exceeds OEM specifications
• Standard relay style without bracket

About the Four Seasons Relay Product Line

The Relay product line from Four Seasons focuses on providing dependable HVAC relays that maintain proper electrical control within automotive climate systems. The Relay 36200 is part of this line, offering a standard relay design that integrates seamlessly with Toyota Avalon HVAC components, ensuring consistent compressor operation and system reliability.

Detailed Product Description

This Four Seasons A/C compressor control relay (part number 36200) is engineered for use in Toyota Avalon vehicles requiring a 12-volt relay with a 20-amp rating. Featuring four blade terminals with a female connector and male terminals, it provides a secure and stable electrical connection. The black housing and unique connector shape help ensure proper installation and compatibility. This relay is designed to replace OEM parts directly, maintaining the integrity of your vehicle’s HVAC system.

Common Applications and Issues Addressed

• Restores proper A/C compressor engagement in Toyota Avalon models
• Resolves intermittent or no cooling due to relay failure
• Eliminates electrical faults caused by worn or damaged relays
• Prevents HVAC system overheating by ensuring correct compressor control
• Addresses relay-related issues that cause A/C compressor cycling problems

Installation Notes and Tips

• Ensure vehicle ignition is off before replacing the relay
• Locate the existing A/C compressor control relay in the Toyota Avalon’s fuse box or relay panel
• Disconnect the old relay by pulling it straight out from the socket
• Align the blade terminals of the new Four Seasons Relay 36200 and push firmly into place
• Verify secure connection and test A/C compressor operation after installation

Quality Assurance and Warranty

The Four Seasons Relay 36200 is manufactured to meet or exceed OEM quality standards, ensuring reliable performance in Toyota Avalon HVAC systems. This part undergoes rigorous testing to confirm electrical and mechanical durability. Warranty coverage details should be confirmed with the product documentation or supplier.
