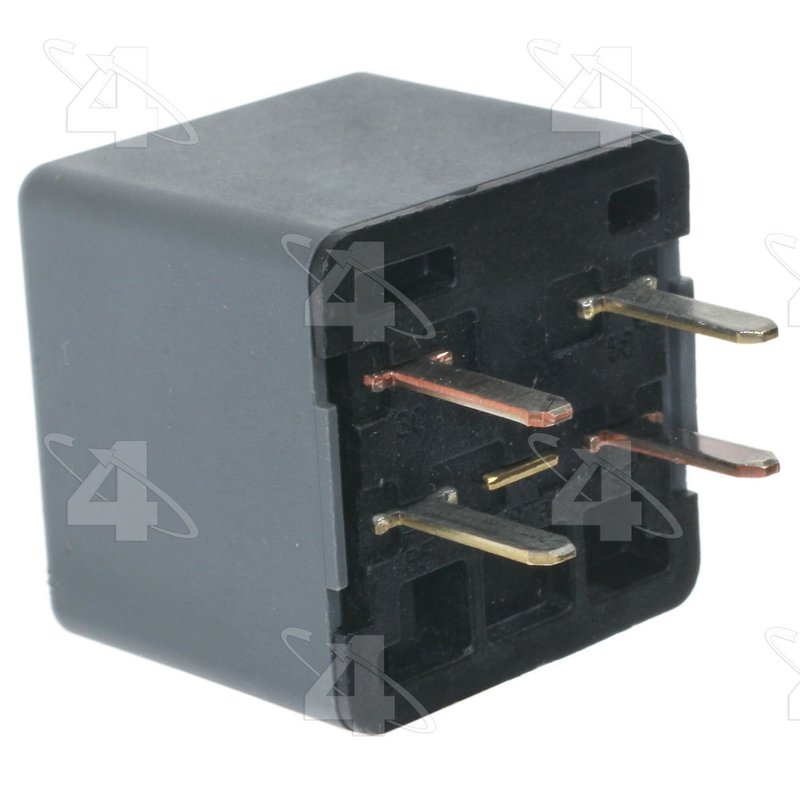

Four Seasons 36201 A/C Compressor Control Relay
| Brand | Four Seasons 36201 |
|---|---|
| Amperage Rating | 20 |
| Bracket? | w/o Bracket |
| Color | Black |
| Connector Gender | Male |
| Connector Qty | 1 |
| Connector Shape | Square |
| Description | Relays |
| Meets / Exceeds OEM? | Yes |
| Style | Standard Relay |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Type | Standard |
| Voltage | 12 |
| Product line | Relay |
| Fits | Mazda · 5 vehicles |
OE direct replacement. Meets or exceeds OEM requirements for dependable relay performance.
Standard relay. 12-volt, 20-amp design with blade terminals and a square connector.
Relay line. Four Seasons HVAC relays are built for straightforward electrical control.
Cross-references Four Seasons 20177, Four Seasons 36201 and A08953 for the same application. See all 4.
Four Seasons 36201 A/C Compressor Control Relay
The Four Seasons Relay 36201 is a standard 12-volt A/C compressor control relay built with a 4-blade terminal layout and a square 1-connector design. It meets or exceeds OEM requirements and is specified for 1998-2002 Mazda 626 applications, including A/C compressor cut-out relay and engine cooling fan motor relay use.
Key Features
- 12-volt standard relay for HVAC control circuits
- 4 blade terminals with male connector and male terminal ends
- 20 amp amperage rating for relay-controlled electrical loads
- Square connector shape with 1 connector and black housing
- Bracketless design for direct relay replacement applications
- Meets or exceeds OEM specifications
Product Details
Four Seasons Relay line components are built for straightforward electrical switching in automotive HVAC systems. Part number 36201 is an A/C compressor control relay that also cross-references Four Seasons 20177 for the same application. It is listed for Mazda 626 models from 1998 through 2002 and is identified in fitment notes as an A/C compressor cut-out relay and engine cooling fan motor relay. This makes it a direct-match service part for technicians replacing a failed relay in the Mazda 626 HVAC and cooling control circuit.
Common Problems This Relay Can Address
- A/C compressor not engaging
- Intermittent compressor cut-out operation
- Cooling fan relay circuit failure
- Noisy, sticking, or non-responsive relay operation
- Electrical switching faults in the HVAC control system
Installation Notes and Tips
Verify the relay connector style, terminal count, and amperage rating before installation. Confirm the vehicle application as a 1998-2002 Mazda 626 and compare the original relay layout to the square 4-terminal design of part number 36201. Inspect the relay socket and surrounding wiring for heat damage, corrosion, or loose terminals before installing the replacement.
Quality Assurance
Four Seasons 36201 is manufactured to meet or exceed OEM requirements for standard relay service. This part cross-references A08953 for the same application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2002 | Mazda | 626 | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2001 | Mazda | 626 | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2000 | Mazda | 626 | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 1999 | Mazda | 626 | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 1998 | Mazda | 626 | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
