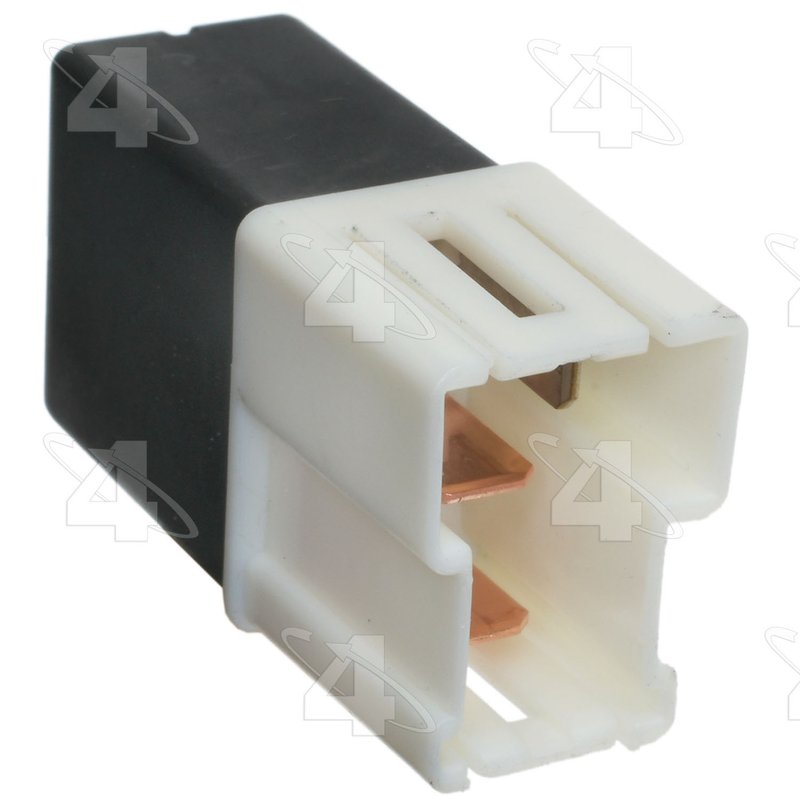

Four Seasons 36202 A/C Compressor Control Relay
| Brand | Four Seasons 36202 |
|---|---|
| Amperage Rating | 20 |
| Bracket? | No |
| Color | Black |
| Connector Gender | female |
| Connector Shape | Other design |
| Description | Relays |
| Meets / Exceeds OEM? | Yes |
| Style | Standard Relay |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Type | Standard |
| Voltage | 12 |
| Product line | Relay |
| Fits | Mazda · 3 vehicles |
OE direct replacement. Meets OEM requirements for dependable relay operation.
Standard relay. 12-volt, 20-amp design with blade terminals.
Four Seasons Relay. Built as a standard HVAC relay for consistent control.
Cross-references Four Seasons 20181, Four Seasons 36202 and A08954 for the same application. See all 4.
Four Seasons 36202 A/C Compressor Control Relay
The Four Seasons Relay line delivers standard electrical relay replacements for HVAC control circuits. Part number 36202 is a 12-volt, 4-terminal A/C compressor control relay with a female connector, male blade terminals, and a 20-amp rating.
Built as a standard relay in black housing, this Four Seasons 36202 relay meets or exceeds OEM requirements and uses a common blade-terminal layout for straightforward service replacement. It is a direct-fit option for select Mazda applications, including 2003 Mazda Protege5 and 2000-2001 Mazda MPV.
Key Features
- 12-volt standard relay for A/C compressor control circuits
- 4 blade terminals with female connector and male terminal design
- 20-amp amperage rating for HVAC relay service
- Black standard relay construction
- Meets or exceeds OEM specifications
- Four Seasons part number 36202
Product Details
Four Seasons Relay 36202 is an A/C compressor control relay used in HVAC electrical systems where reliable switching is required. The standard relay style, 12V operation, and 4-terminal blade configuration make it a practical replacement for relay service on select Mazda vehicles. This part cross-references A08954 and B11067730 for the same application. It also cross-references Four Seasons 20181 for related service coverage.
Compatible vehicle applications include Fits 2003 Mazda Protege5, N/A and Fits 2000-2001 Mazda MPV, N/A. Search terms such as Mazda Protege5 A/C compressor cut-out relay, Mazda MPV engine cooling fan motor relay, and Four Seasons 36202 relay replacement align with this part’s confirmed fitment.
Common Issues This Relay May Address
- A/C compressor not engaging
- Intermittent compressor cut-out operation
- Relay-related HVAC electrical switching faults
- Cooling fan relay circuit concerns on listed Mazda applications
- Failed standard relay causing inconsistent compressor control
Installation Notes and Quality Assurance
Verify the terminal layout, connector style, amperage rating, and vehicle application before installation. Confirm the relay location and compare the original part number against Four Seasons 36202 to ensure proper replacement on the listed Mazda Protege5 and Mazda MPV models.
Four Seasons manufactures HVAC electrical components to meet or exceed OEM specifications, and this relay follows that standard for service replacement accuracy and fitment consistency.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Mazda | Protege5 | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2001 | Mazda | MPV | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2000 | Mazda | MPV | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
