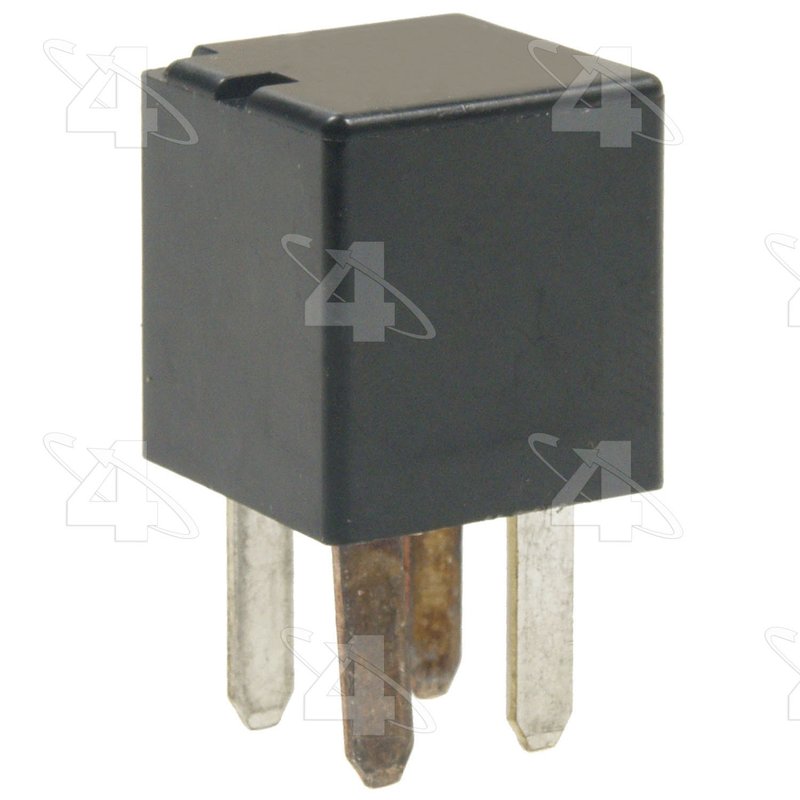

Four Seasons 36206 A/C Compressor Control Relay
| Brand | Four Seasons 36206 |
|---|---|
| Amperage Rating | 20 |
| Bracket? | No |
| Color | Black |
| Connector Gender | Male |
| Connector Shape | Square |
| Description | Relays |
| Meets / Exceeds OEM? | Yes |
| Style | Standard Relay |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Type | Standard |
| Voltage | 12 |
| Product line | Relay |
| Fits | Ford · 4 vehicles |
OE direct replacement. Meets or exceeds OEM requirements for dependable relay performance.
Standard relay. 12-volt, 20-amp design with blade terminals for straightforward electrical connection.
Square connector. Male 4-terminal layout in a compact black housing.
Cross-references BBB Industries 13507, Davico Mfg 16236 and Dorman - HELP 20753 for the same application. See all 11.
Four Seasons 36206 A/C Compressor Control Relay
Four Seasons 36206 is a standard 12-volt A/C compressor control relay built for HVAC relay applications that require a 4-blade male terminal layout. It meets or exceeds OEM requirements and is rated at 20 amps for dependable electrical switching in the air conditioning circuit.
Compatible with 2005-2007 Ford F-150 and 2008 Ford F-150 applications, this Four Seasons Relay line part is a direct-fit style replacement for common compressor control and cut-out relay needs. The black square housing and standard relay design support straightforward identification during HVAC electrical service.
Key Features
- Brand: Four Seasons Relay
- Part number: 36206
- 12-volt standard relay design
- 20-amp amperage rating
- 4 blade male terminals with male connector and terminal gender
- Square connector shape, black housing
- Meets or exceeds OEM specifications
- No bracket included
Product Details
The Four Seasons 36206 A/C Compressor Control Relay is used in HVAC relay circuits to switch compressor control signals with the correct voltage and terminal configuration. In Ford F-150 applications, it is listed for 2005-2007 models as an A/C Compressor Cut-Out Relay, also known as an Engine Cooling Fan Motor Relay, and for 2008 Ford F-150 models in the same relay family. If you are searching for a Ford F-150 A/C compressor relay, compressor cut-out relay, or standard HVAC relay replacement, this part number 36206 is a direct reference point for service matching.
This part cross-references Dorman - HELP 20753 and Remy 16236 for the same application.
Common Issues This Relay May Address
- A/C compressor not engaging
- Intermittent compressor cycling
- Relay-related loss of HVAC electrical control
- Faulty compressor cut-out relay operation
- Cooling fan or compressor circuit switching problems in Ford F-150 service
Installation Notes and Tips
Verify the relay socket matches the 4-terminal blade layout, square connector shape, and 12-volt standard relay specification before installation. Confirm the vehicle application against the listed Ford F-150 years and compare the original relay part number or circuit function when diagnosing HVAC electrical faults. Always inspect the relay terminals and connector for heat damage, corrosion, or looseness before replacing the part.
Quality Assurance
Four Seasons 36206 is built to meet or exceed OEM requirements for standard relay service, supporting consistent fit and electrical performance in the specified Ford F-150 applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Ford | F-150 | N/A | — |
| 2007 | Ford | F-150 | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2006 | Ford | F-150 | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
| 2005 | Ford | F-150 | N/A | A/C Compressor Cut-Out Relay also known as Engine Cooling Fan Motor Relay.; Relay |
