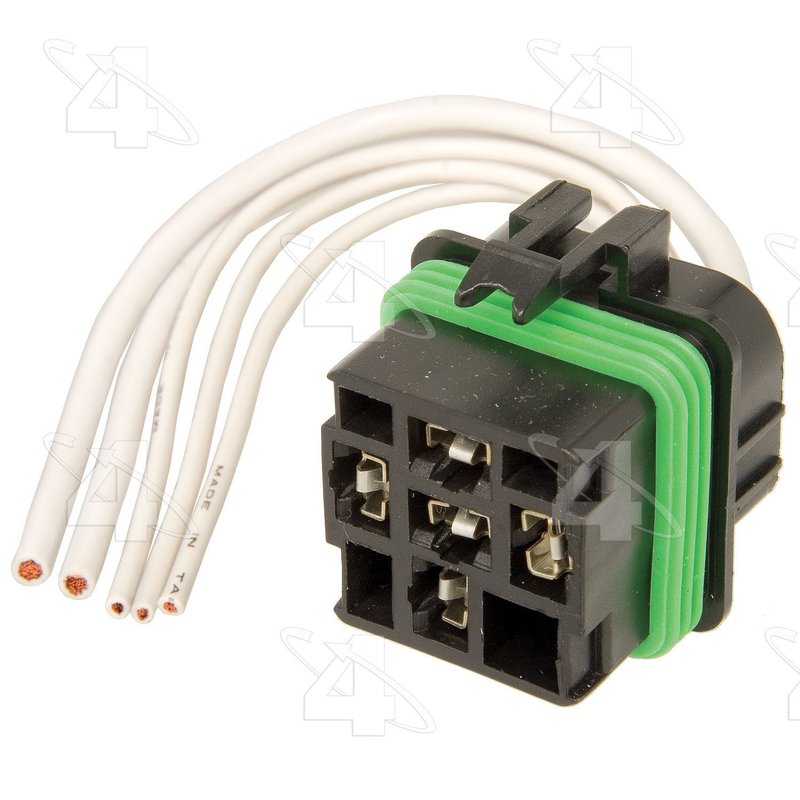

Four Seasons 37220 HVAC Automatic Temperature Control (ATC) Relay Connector

Overview of Four Seasons Harness Connector 37220

The Four Seasons Harness Connector 37220 is a male HVAC automatic temperature control (ATC) relay connector designed for reliable electrical connections. This 5-terminal, square-shaped connector is engineered to meet the specific needs of various GM and Chrysler vehicles, ensuring proper fit and function.

• Brand: Four Seasons
• Brand Line: Harness Connector
• Part Number: 37220
• Type: HVAC Automatic Temperature Control (ATC) Relay Connector
• Gender: Male connector housing with female terminals
• Terminal Quantity: 5
• Connector Shape: Square
• Connector Pin Quantity: 5

Detailed Product Description

The Four Seasons Harness Connector 37220 is part of the Harness Connector product line, which focuses on providing durable and precise electrical connectors for HVAC systems. This connector features a male housing with five female terminals arranged in a square configuration, designed to interface seamlessly with HVAC automatic temperature control relays. Its construction supports secure and stable electrical connections, essential for maintaining proper climate control system operation in vehicles.

Compatible with a range of makes and models including Buick 60 Special, Cadillac DeVille, Chevrolet Caprice, Chrysler PT Cruiser, Dodge Dakota, Oldsmobile Cutlass Ciera, and Pontiac Firebird, this connector ensures OEM-level fitment and performance. The 5-terminal design supports multiple circuit connections, making it suitable for complex HVAC relay applications.

Common Applications and Issues Addressed

• Replacement of worn or damaged HVAC relay connectors in Buick, Cadillac, Chevrolet, Chrysler, Dodge, Oldsmobile, and Pontiac vehicles
• Resolving intermittent HVAC automatic temperature control relay failures due to poor electrical connections
• Restoring proper electrical continuity in HVAC systems with faulty or corroded connectors
• Ensuring secure terminal connections to prevent HVAC relay malfunction
• Supporting maintenance and repair of climate control systems in compatible vehicle models

Installation Notes and Tips

• Verify vehicle compatibility with the Four Seasons Harness Connector 37220 before installation
• Ensure terminals are properly seated and locked within the male connector housing
• Inspect wiring harness for damage or corrosion prior to connector installation
• Use appropriate tools to avoid terminal or housing damage during installation
• Confirm secure connection by testing HVAC relay operation after installation

Quality Assurance and Warranty

Four Seasons products, including the Harness Connector 37220, are manufactured to meet industry standards for durability and electrical performance. While specific warranty details are not provided here, Four Seasons typically offers coverage against manufacturing defects. Users should consult product packaging or official documentation for exact warranty terms.
