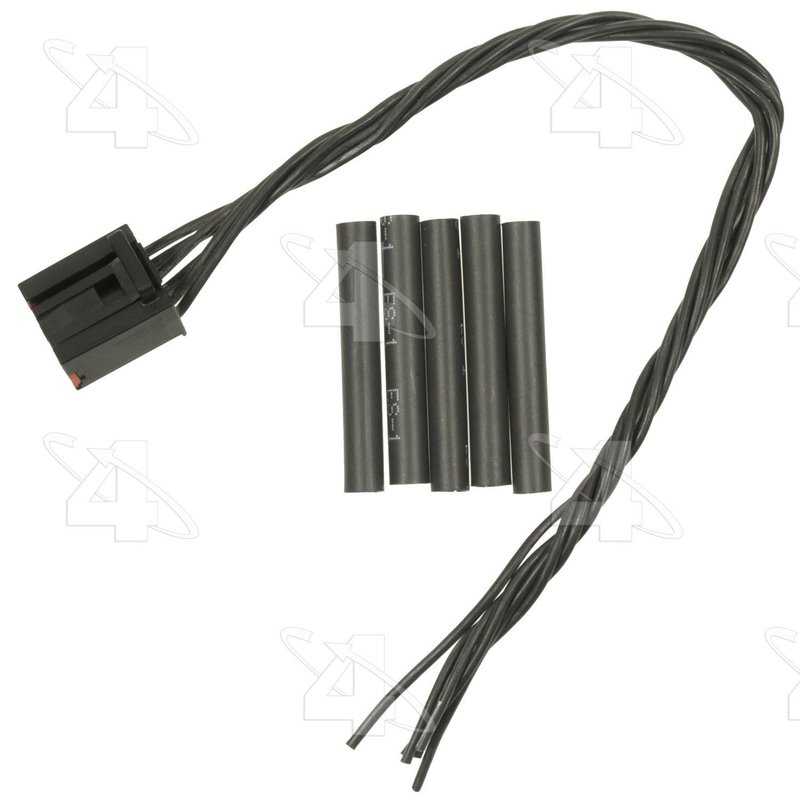

Four Seasons 37284 HVAC Blend Door Actuator Connector

HVAC Blend Door Actuator Connector

Four Seasons 37284 is a rectangular harness connector for HVAC electrical repairs where the original blend door, mode door, or recirculation door actuator plug is damaged. It uses a male connector body with 6 female terminals to restore a secure electrical connection in the climate control circuit.

Use this Four Seasons harness connector when servicing Lincoln Town Car, Lincoln LS, Ford Thunderbird, or Ford Focus HVAC wiring. The Four Seasons Harness Connector line is built for repair-focused applications where the connector housing and terminal interface need to match the vehicle harness layout.

Key Features

• Part number: 37284
• Four Seasons Harness Connector line
• Male connector body with 6 female terminals
• Rectangular connector shape for HVAC electrical repair work
• Used for blend door actuator, mode door actuator, and recirculation door actuator connections
• Also listed for A/C compressor cut-out switch harness connector repair on select applications

Detailed Description

Four Seasons 37284 is an HVAC blend door actuator connector designed for repair of damaged harness connections in the climate control system. It is listed for multiple Ford and Lincoln applications, including Lincoln Town Car, Lincoln LS, Ford Thunderbird, and Ford Focus, where the connector is used for mode door actuator, recirculation door actuator, or related harness repair service. If the original plug is heat-damaged, broken, or no longer locks securely, this connector provides the correct electrical interface for the repair.

This part cross-references 1P2474 and WPT502 for the same application. Four Seasons 37284 is a direct-fit style connector for select HVAC electrical repairs and should be matched to the vehicle’s original connector shape, terminal count, and terminal gender before installation.

What It Helps Repair

• Broken or cracked HVAC actuator connector housings
• Intermittent blower or temperature door control caused by poor connector contact
• Recirculation door actuator wiring faults at the connector
• Mode door actuator connector damage in the dash HVAC harness
• Damaged A/C compressor cut-out switch harness connector on listed applications

Installation Notes and Tips

Verify the original connector style, terminal count, and terminal gender before installation. Inspect the harness for heat damage, corrosion, or loose terminals and repair those issues before connecting the new plug. Confirm proper pin alignment and secure locking engagement after installation to maintain a stable HVAC electrical connection.

Quality Assurance

Four Seasons 37284 is cataloged for specific OE-style HVAC electrical repair applications and fitment-listed Ford and Lincoln vehicles. Confirm vehicle year, make, model, and connector configuration against the original part before service.

• Fits 2003-2011 Lincoln Town Car, N/A, Mode Door Actuator Connector; Harness Connector
• Fits 2003-2011 Lincoln Town Car, N/A, Recirculation Door Actuator Connector; Harness Connector-Repair; Harness Connector
• Fits 1998-2011 Lincoln Town Car, N/A, Replacement connector for damaged A/C Compressor Cut-Out Switch Harness connectors.; Harness Connector
• Fits 2000-2006 Lincoln LS, N/A, Mode Door Actuator Connector; Harness Connector-Repair; Harness Connector
• Fits 2000-2006 Lincoln LS, N/A, Recirculation Door Actuator Connector; Harness Connector-Repair; Harness Connector
• Fits 2000-2006 Lincoln LS, N/A, Harness Connector-Repair; Cold Air Bypass; Harness Connector
• Fits 2002-2005 Ford Thunderbird, N/A, Mode Door Actuator Connector; Harness Connector-Repair; Harness Connector
• Fits 2002-2005 Ford Thunderbird, N/A, Recirculation Door Actuator Connector; Harness Connector-Repair; Harness Connector
• Fits 2002-2005 Ford Thunderbird, N/A, Harness Connector-Repair; Cold Air Bypass; Harness Connector
• Fits 2002 Ford Focus, N/A, Recirculation Door Actuator Connector; To 11/01; Harness Connector
• Fits 1998-2002 Lincoln Town Car, N/A, Recirculation Door Actuator Connector; Harness Connector
• Fits 2000-2001 Ford Focus, N/A, Recirculation Door Actuator Connector; Harness Connector
