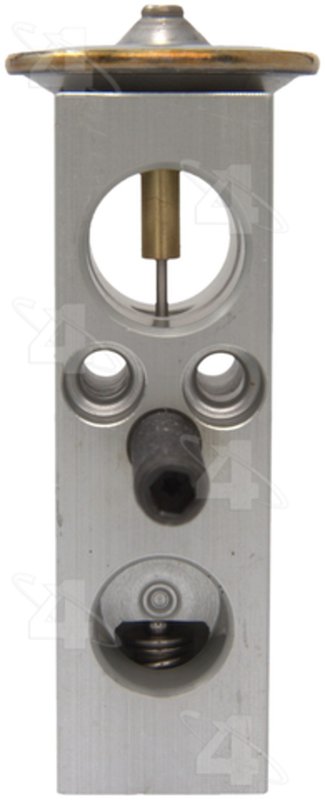

Four Seasons 39016 A/C Expansion Valve - Front
| Brand | Four Seasons 39016 |
|---|---|
| Position | Front |
| Color | Aluminum |
| Description | Expansion Valves |
| Liquid Inlet Fitting Gender | Female |
| Liquid Inlet Fitting Thread Diameter | No. 10 |
| Liquid Inlet Size IN | 0.610 |
| Liquid Inlet Size MM | 15.500 |
| Liquid Inlet Style | O-Ring |
| Liquid Inlet Thread Type | Not Threaded |
| Liquid Inlet Type | O-Ring |
| Liquid Outlet Fitting Gender | Female |
| Liquid Outlet Fitting Thread Diameter | No. 8 |
| Liquid Outlet Style | Female Insert O-Ring |
| Liquid Outlet Thread Type | Not Threaded |
| Liquid Outlet Type | Insert O-Ring |
| Lqd Out Size IN | 0.540 |
| Lqd Out Size MM | 13.6 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mounting Hole Quantity | 2 |
| O-Ring A Number/Desc | [24608] / Green O-Ring |
| O-Ring B Number/Desc | [24612] / Green O-Ring |
| O-Ring C Number/Desc | [24661] / Green O-Ring |
| O-Ring D Number/Desc | [24681] / Green O-Ring |
| Refrigerant Type | R134A |
| Style | w/o Solenoid |
| Suc In Size IN | 0.770 |
| Suc In Size MM | 19.600 |
| Suc Out Size IN | 0.77 |
| Suc Out Size MM | 18.3 |
| Suction Inlet Fitting Gender | Female |
| Suction Inlet Fitting Thread Diameter | No. 8 |
| Suction Inlet Style | Female Insert O-Ring |
| Suction Inlet Thread Type | Not Threaded |
| Suction Inlet Type | Insert O-Ring |
| Suction Outlet Fitting Gender | Female |
| Suction Outlet Fitting Thread Diameter | No. 10 |
| Suction Outlet Style | Female Insert O-Ring |
| Suction Outlet Thread Type | Not Threaded |
| Suction Outlet Type | O-Ring |
| Super Heat | 3.000 |
| Switch Included? | Not Included |
| Tonnage | 1.500 |
| Type | Block Type |
| Product line | Expansion Valve |
| Fits | Chrysler and Dodge · 19 vehicles |
OE direct replacement. Meets or exceeds OEM requirements for dependable A/C flow control.
Aluminum construction. Lightweight material resists corrosion in demanding HVAC service.
Block type design. Provides precise refrigerant metering without a solenoid.
Cross-references Four Seasons 39016, Global Parts Distributors LLC 3411419 and Pioneer Automotive Industries 759016 for the same application. See all 20.
Four Seasons 39016 Expansion Valve Overview
The Four Seasons 39016 A/C expansion valve is a block-type HVAC flow restrictor built for R134A systems. It is an aluminum replacement that meets or exceeds OEM requirements and is specified for 1.5 ton applications with a 3.0 super heat setting.
Use this Four Seasons expansion valve when servicing the air conditioning system on select Chrysler, Dodge, and Pacifica applications that require precise refrigerant metering and OE-style fitment.
Key Features
- Block-type A/C expansion valve for R134A refrigerant systems
- Aluminum construction with aluminum finish
- Female suction and liquid connections with O-ring sealing
- Designed with 2 mounting holes
- Meets or exceeds OEM specifications
- Includes OE-style green O-rings for the listed connection points
- Style: w/o solenoid
- Part number: 39016
Detailed Description
Four Seasons 39016 is an A/C expansion valve used to regulate refrigerant flow into the evaporator, helping maintain proper system pressure and cooling performance. Its block-type design, female insert O-ring connections, and R134A compatibility make it a direct-fit service part for HVAC repairs on 2002-2008 Chrysler Pacifica, 2004-2007 Chrysler Town & Country front, 2002-2007 Dodge Caravan front, and 2004-2007 Dodge Grand Caravan front applications. The part number 39016 is also cross-referenced to UAC EX10149C for the same application.
Compatible With: 2005-2008 Chrysler Pacifica, 2004-2007 Chrysler Town & Country front, 2002-2007 Dodge Caravan front, and 2004-2007 Dodge Grand Caravan front. For 2004 Chrysler Pacifica, this valve applies from 12/01/03.
Common Problems This Part Can Address
- Weak or inconsistent cabin cooling
- Incorrect refrigerant metering at the evaporator
- HVAC performance issues caused by a worn or restricted expansion valve
- Leaks at O-ring sealed A/C connections
- Service replacement for a failed OE-style block expansion valve
Installation Notes and Tips
Verify refrigerant type, connection sizes, and vehicle application before installation. This valve uses female insert O-ring style fittings and is intended for systems with the listed suction and liquid port dimensions. Replace sealing O-rings as needed during A/C service, evacuate the system properly, and recharge with the correct R134A specification after repairs.
Quality Assurance
Four Seasons lists this expansion valve as meeting or exceeding OEM requirements for the specified application. The part is built as an OE-style replacement for service work on Chrysler and Dodge HVAC systems, including Pacifica, Town & Country, Caravan, and Grand Caravan models.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Chrysler | Pacifica | — | — | N/A | Expansion Valve |
| 2007 | Chrysler | Pacifica | — | — | N/A | Expansion Valve |
| 2007 | Chrysler | Town & Country | — | — | Front | Expansion Valve |
| 2007 | Dodge | Caravan | — | — | Front | Expansion Valve |
| 2007 | Dodge | Grand Caravan | — | — | Front | Expansion Valve |
| 2006 | Chrysler | Pacifica | — | — | N/A | Expansion Valve |
| 2006 | Chrysler | Town & Country | — | — | Front | Expansion Valve |
| 2006 | Dodge | Caravan | — | — | Front | Expansion Valve |
| 2006 | Dodge | Grand Caravan | — | — | Front | Expansion Valve |
| 2005 | Chrysler | Pacifica | — | — | N/A | Expansion Valve |
| 2005 | Chrysler | Town & Country | — | — | Front | Expansion Valve |
| 2005 | Dodge | Caravan | — | — | Front | Expansion Valve |
| 2005 | Dodge | Grand Caravan | — | — | Front | Expansion Valve |
| 2004 | Chrysler | Pacifica | — | — | N/A | From 12/01/03; Expansion Valve |
| 2004 | Chrysler | Town & Country | — | — | Front | Expansion Valve |
| 2004 | Dodge | Caravan | — | — | Front | Expansion Valve |
| 2004 | Dodge | Grand Caravan | — | — | Front | Expansion Valve |
| 2003 | Dodge | Caravan | 2.4L | L4 | Front | Expansion Valve |
| 2002 | Dodge | Caravan | 2.4L | L4 | Front | Expansion Valve |
