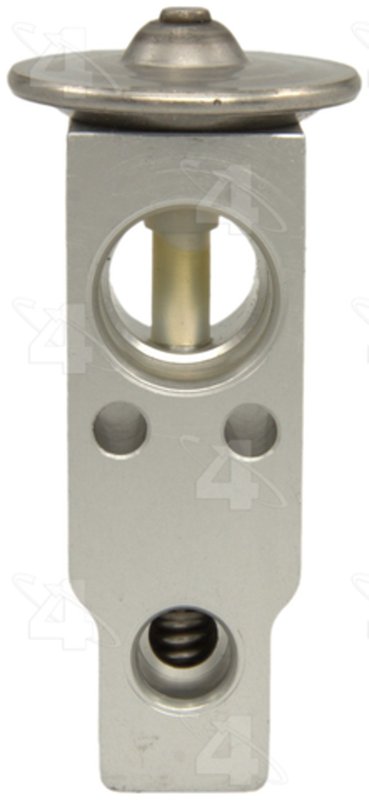

Four Seasons 39097 A/C Expansion Valve
Overview of Four Seasons Expansion Valve 39097
The Four Seasons Expansion Valve 39097 is engineered for precise control of refrigerant flow in automotive air conditioning systems. Designed specifically for Toyota RAV4 models, this aluminum block-type valve ensures efficient cooling performance with R134a refrigerant compatibility.
- Constructed from durable aluminum material for corrosion resistance
- Compatible with R134a refrigerant systems
- Block type design with two mounting holes for secure installation
- Female suction and liquid inlet/outlet fittings with captured o-ring seals
- Meets or exceeds OEM specifications for reliable fit and function
Detailed Product Features and Specifications
The Four Seasons Expansion Valve 39097 features a block-type design made from aluminum, providing strength and resistance to corrosion in demanding HVAC environments. It is designed for use with R134a refrigerant, the standard for many modern automotive A/C systems. The valve includes two mounting holes to ensure a secure fit within the system. Both suction inlet and outlet fittings are female with No. 12 thread diameters, while liquid inlet and outlet fittings are also female with No. 6 and No. 10 thread diameters respectively. All fittings utilize captured o-ring seals to prevent leaks and maintain system integrity. This expansion valve is engineered to meet or exceed OEM standards, ensuring compatibility and performance for Toyota RAV4 vehicles.
About the Four Seasons Expansion Valve Product Line
The Four Seasons Expansion Valve product line focuses on delivering precise refrigerant flow control components for automotive HVAC systems. This line includes block-type expansion valves like the 39097, designed to provide consistent performance and durability. By using high-quality materials and adhering to OEM specifications, the Expansion Valve line supports reliable air conditioning operation in vehicles such as the Toyota RAV4.
Common Applications and Problem Resolution
- Regulates refrigerant flow to maintain optimal evaporator temperature
- Prevents compressor damage caused by improper refrigerant metering
- Eliminates inconsistent cabin cooling due to faulty expansion valves
- Addresses refrigerant leaks with captured o-ring fittings
- Supports system efficiency by maintaining correct pressure differentials
Installation Notes and Tips
When installing the Four Seasons Expansion Valve 39097, ensure the vehicle is compatible—specifically Toyota RAV4 models using R134a refrigerant. Use proper tools to avoid damaging the aluminum fittings and verify that all o-rings are seated correctly to prevent leaks. Tighten mounting bolts securely using the two provided holes. It is recommended to evacuate and recharge the A/C system following installation to maintain optimal performance.
Quality Assurance and Warranty
This expansion valve meets or exceeds OEM quality standards, providing reliable performance for Toyota RAV4 air conditioning systems. Four Seasons products typically come with a limited warranty covering defects in material and workmanship. Refer to the manufacturer’s warranty documentation for specific terms related to part number 39097.
| Brand | Four Seasons |
|---|---|
| Part Number | 39097 |
| Position | Expansion Valve |
| Color | Aluminum |
| Description | Expansion Valves |
| Liquid Inlet Fitting Gender | Female |
| Liquid Inlet Fitting Thread Diameter | No. 6 |
| Liquid Inlet Size IN | 0.4 |
| Liquid Inlet Size MM | 10.15 |
| Liquid Inlet Style | Captured O-Ring |
| Liquid Inlet Thread Type | Not Threaded |
| Liquid Inlet Type | O-Ring |
| Liquid Outlet Fitting Gender | Female |
| Liquid Outlet Fitting Thread Diameter | No. 10 |
| Liquid Outlet Style | Captured O-Ring |
| Liquid Outlet Thread Type | Not Threaded |
| Liquid Outlet Type | O-Ring |
| Lqd Out Size IN | 0.61 |
| Lqd Out Size MM | 15.5 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mounting Hole Quantity | 2 |
| O-Ring A Number/Desc | [24611] / Green O-Ring |
| O-Ring B Number/Desc | [24661] / Green O-Ring |
| O-Ring C Number/Desc | [24681] / Green O-Ring |
| Refrigerant Type | R134A |
| Style | w/o Solenoid |
| Suc In Size IN | 0.72 |
| Suc In Size MM | 18.3 |
| Suc Out Size IN | 0.72 |
| Suc Out Size MM | 18.3 |
| Suction Inlet Fitting Gender | Female |
| Suction Inlet Fitting Thread Diameter | No. 12 |
| Suction Inlet Style | Captured O-Ring |
| Suction Inlet Thread Type | Not Threaded |
| Suction Inlet Type | O-Ring |
| Suction Outlet Fitting Gender | Female |
| Suction Outlet Fitting Thread Diameter | No. 12 |
| Suction Outlet Style | Captured O-Ring |
| Suction Outlet Thread Type | Not Threaded |
| Suction Outlet Type | O-Ring |
| Super Heat | 3.000 |
| Switch Included? | Not Included |
| Tonnage | 1.500 |
| Type | Block Type |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Toyota | RAV4 | N/A | To 11/05; Expansion Valve |
| 2004 | Toyota | RAV4 | N/A | Expansion Valve |
| 2003 | Toyota | RAV4 | N/A | Expansion Valve |
| 2002 | Toyota | RAV4 | N/A | Expansion Valve |
| 2001 | Toyota | RAV4 | N/A | Expansion Valve |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
