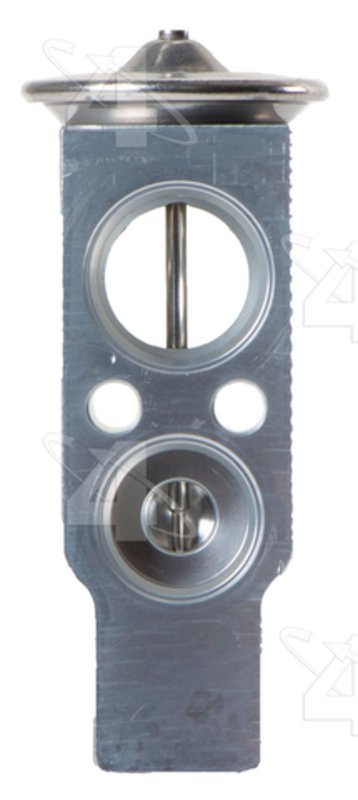

Four Seasons 39562 A/C Expansion Valve
| Brand | Four Seasons 39562 |
|---|---|
| Color | Aluminum |
| Description | Expansion Valves |
| Liquid Inlet Fitting Gender | Female |
| Liquid Inlet Fitting Thread Diameter | No. 6 |
| Liquid Inlet Size IN | 0.4 |
| Liquid Inlet Size MM | 10.15 |
| Liquid Inlet Style | Captured O-Ring |
| Liquid Inlet Thread Type | Not Threaded |
| Liquid Inlet Type | O-Ring |
| Liquid Outlet Fitting Gender | Female |
| Liquid Outlet Fitting Thread Diameter | No. 10 |
| Liquid Outlet Style | Captured O-Ring |
| Liquid Outlet Thread Type | Not Threaded |
| Liquid Outlet Type | O-Ring |
| Lqd Out Size IN | 0.61 |
| Lqd Out Size MM | 15.5 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mounting Hole Quantity | 2 |
| O-Ring A Number/Desc | [24611] / Green O-Ring |
| O-Ring B Number/Desc | [24109] / Green O-Ring |
| O-Ring C Number/Desc | [24150] / Green O-Ring |
| Refrigerant Type | R134A |
| Style | w/o Solenoid |
| Suc In Size IN | 0.72 |
| Suc In Size MM | 18.3 |
| Suc Out Size IN | 0.72 |
| Suc Out Size MM | 18.3 |
| Suction Inlet Fitting Gender | Female |
| Suction Inlet Fitting Thread Diameter | No. 12 |
| Suction Inlet Style | Captured O-Ring |
| Suction Inlet Thread Type | Not Threaded |
| Suction Inlet Type | O-Ring |
| Suction Outlet Fitting Gender | Female |
| Suction Outlet Fitting Thread Diameter | No. 12 |
| Suction Outlet Style | Captured O-Ring |
| Suction Outlet Thread Type | Not Threaded |
| Suction Outlet Type | O-Ring |
| Super Heat | -10.0 |
| Switch Included? | Not Included |
| Tonnage | 1.5 |
| Type | Block Type |
| Product line | Expansion Valve |
| Fits | Jaguar · 31 vehicles |
OE direct replacement. Meets or exceeds OEM requirements for dependable A/C flow control.
Block type design. Aluminum construction with captured O-ring connections for a secure seal.
R134A compatible. Built for modern refrigerant systems without a solenoid.
Cross-references Four Seasons 39562, UAC EX9772C and 217562 for the same application. See all 7.
Four Seasons 39562 Expansion Valve Overview
Four Seasons 39562 is a block-type A/C expansion valve for R134A systems, built with an aluminum body and captured O-ring connections for secure refrigerant control. It is a direct-fit HVAC flow restrictor for select Jaguar applications, including Jaguar F-Type, XK, XKR, and XKR-S models.
Key Features
- Block-type A/C expansion valve for R134A refrigerant systems
- Aluminum construction with aluminum finish
- Captured O-ring liquid and suction connections
- Female inlet and outlet fittings with No. 12 suction ports and No. 6 / No. 10 liquid ports
- 2 mounting holes for OE-style installation
- Meets or exceeds OEM requirements
- Style: w/o solenoid
- Super heat setting: -10.0
- Brand line: Four Seasons Expansion Valve
Application Details
This Four Seasons Expansion Valve line is built for HVAC service work where precise refrigerant metering is required. Part number 39562 is listed for 2014-2024 Jaguar F-Type, 2009-2015 Jaguar XK, 2009-2015 Jaguar XKR, and 2012-2015 Jaguar XKR-S, making it a relevant choice when replacing a worn or restricted Jaguar A/C expansion valve. This part cross-references UAC EX9772C for the same application.
What It Helps Address
- Inconsistent cabin cooling on Jaguar F-Type, XK, XKR, or XKR-S models
- Restricted refrigerant flow through the A/C evaporator circuit
- Improper superheat control in an R134A system
- Leaking or degraded O-ring sealing surfaces at the valve connections
- HVAC performance loss caused by a failing expansion valve
Installation Notes
Verify refrigerant type, port style, and mounting-hole layout before installation. This valve uses captured O-ring liquid and suction fittings, so the sealing surfaces should be inspected and cleaned during service. Confirm the vehicle’s A/C system configuration matches the listed Jaguar fitment before replacing the original valve. Part number 39562 should be matched to the correct application by year, model, and HVAC layout.
Quality Assurance
Four Seasons lists this expansion valve as meeting or exceeding OEM specifications, which supports OE-style fitment and function for the specified Jaguar applications. Four Seasons 39562 is engineered for service replacement in R134A systems where accurate refrigerant metering is required.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2024 | Jaguar | F-Type | — | — | N/A | Expansion Valve |
| 2023 | Jaguar | F-Type | — | — | N/A | Expansion Valve |
| 2022 | Jaguar | F-Type | — | — | N/A | Expansion Valve |
| 2021 | Jaguar | F-Type | — | — | N/A | Expansion Valve |
| 2020 | Jaguar | F-Type | — | — | N/A | Expansion Valve |
| 2019 | Jaguar | F-Type | — | — | N/A | Expansion Valve |
| 2018 | Jaguar | F-Type | 3.0L | V6 | N/A | Expansion Valve |
| 2018 | Jaguar | F-Type | 5.0L | V8 | N/A | Expansion Valve |
| 2018 | Jaguar | F-Type | 2.0L | L4 | N/A | Expansion Valve |
| 2017 | Jaguar | F-Type | — | — | N/A | Expansion Valve |
| 2016 | Jaguar | F-Type | — | — | N/A | Expansion Valve |
| 2015 | Jaguar | F-Type | — | — | N/A | Expansion Valve |
| 2015 | Jaguar | XK | — | — | N/A | Expansion Valve |
| 2015 | Jaguar | XKR | — | — | N/A | Expansion Valve |
| 2015 | Jaguar | XKR-S | — | — | N/A | Expansion Valve |
| 2014 | Jaguar | F-Type | — | — | N/A | Expansion Valve |
| 2014 | Jaguar | XK | — | — | N/A | Expansion Valve |
| 2014 | Jaguar | XKR | — | — | N/A | Expansion Valve |
| 2014 | Jaguar | XKR-S | — | — | N/A | Expansion Valve |
| 2013 | Jaguar | XK | — | — | N/A | Expansion Valve |
| 2013 | Jaguar | XKR | — | — | N/A | Expansion Valve |
| 2013 | Jaguar | XKR-S | — | — | N/A | Expansion Valve |
| 2012 | Jaguar | XK | — | — | N/A | Expansion Valve |
| 2012 | Jaguar | XKR | — | — | N/A | Expansion Valve |
| 2012 | Jaguar | XKR-S | — | — | N/A | Expansion Valve |
| 2011 | Jaguar | XK | — | — | N/A | Expansion Valve |
| 2011 | Jaguar | XKR | — | — | N/A | Expansion Valve |
| 2010 | Jaguar | XK | — | — | N/A | Expansion Valve |
| 2010 | Jaguar | XKR | — | — | N/A | Expansion Valve |
| 2009 | Jaguar | XK | — | — | N/A | Expansion Valve |
| 2009 | Jaguar | XKR | — | — | N/A | Expansion Valve |
