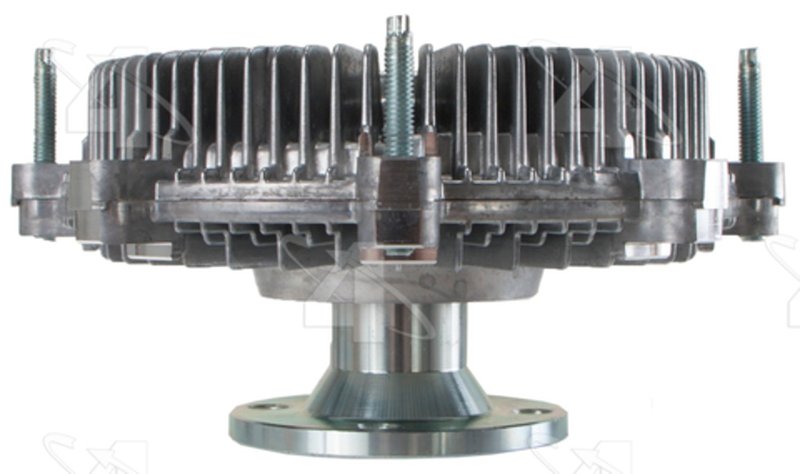

Four Seasons 46133 Engine Cooling Fan Clutch

Four Seasons 46133 Thermal Fan Clutch

The Four Seasons 46133 engine cooling fan clutch is a standard duty thermal unit built with an aluminum body and reverse rotation operation. It is engineered for direct replacement use on select Isuzu Axiom, Rodeo, and Rodeo Sport applications, with OE-style mounting dimensions and performance-rated construction.

Key Features

• Thermal engine cooling fan clutch for temperature-based fan engagement
• Standard duty design for everyday cooling system service
• Aluminum construction with raw aluminum finish
• Reverse rotation (REV) configuration
• Flange mount design with 4 bolt holes and 4 mounting holes
• Meets or exceeds OEM requirements
• Performance rated and new, not remanufactured
• Four Seasons 46133 direct replacement fitment

Product Details

Four Seasons Fan Clutch 46133 is a thermal engine cooling fan clutch designed to regulate fan engagement based on operating temperature. It features a 7.03-inch maximum diameter, 3.37-inch overall height, 3.07-inch mount diameter, and a 6.46-inch fan bolt circle. The unit uses an M6 x 1.0 hole thread pattern, a 0.63-inch pilot diameter, and a 0.83-inch pilot depth for OE-style fitment. This part cross-references AMS Automotive 6232 for the same application.

Compatible With 2003-2004 Isuzu Axiom, N/A; 2003-2004 Isuzu Rodeo, N/A; and 2003 Isuzu Rodeo Sport, N/A. If you are replacing a reverse rotation standard duty thermal fan clutch on these vehicles, Four Seasons 46133 provides the specified mounting and rotational configuration for the application.

Common Replacement Reasons

• Engine cooling fan stays engaged longer than normal
• Fan clutch does not engage when engine temperature rises
• Cooling fan noise increases from worn clutch operation
• Temperature control becomes inconsistent in stop-and-go driving
• Original clutch shows wear, leakage, or reduced response

Installation Notes

Verify reverse rotation, flange mounting style, bolt pattern, and pilot dimensions before installation. Mounting hardware is not included, so reuse or source the correct hardware as needed. Confirm fan clearance and belt-driven accessory alignment during replacement, and inspect the cooling fan, water pump, and surrounding components for wear while the system is apart.

Quality Assurance

Four Seasons 46133 is a new, performance-rated fan clutch that meets or exceeds OEM specifications for the listed Isuzu applications. Four Seasons is a recognized cooling system brand, and this thermal fan clutch is built for direct-fit replacement service in standard duty use.
