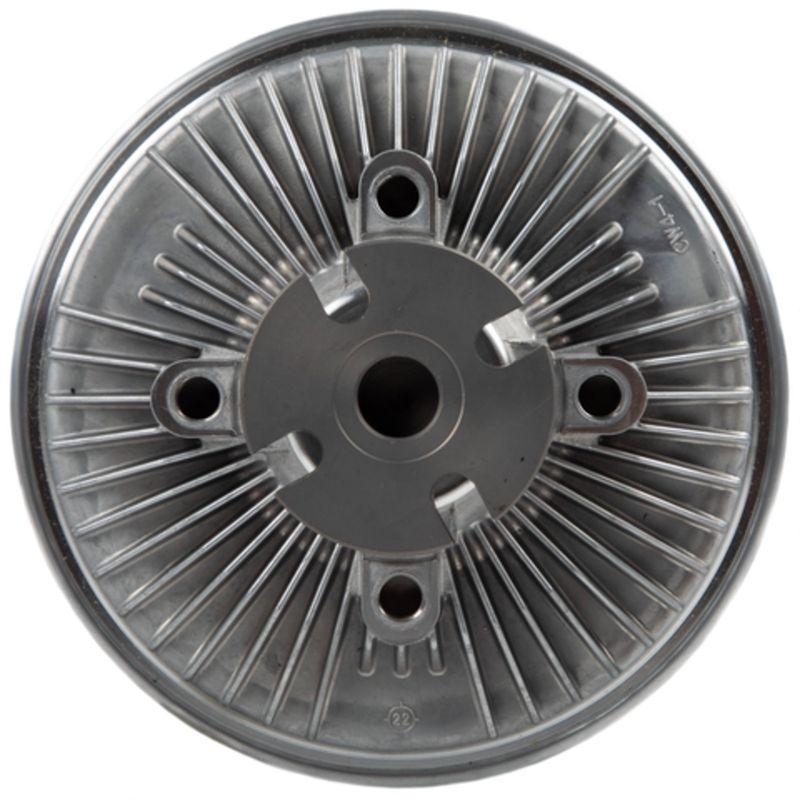

Four Seasons 46162 Engine Cooling Fan Clutch
| Brand | Four Seasons 46162 |
|---|---|
| Material | Aluminum |
| Color | Raw aluminum in color |
| Bolt Hole Quantity | 4 |
| Grade Type | Severe duty |
| Mounting Hole Quantity | 4 |
| Thermal Or Centrifugal | Thermal |
| Clutch Maximum Diameter | 6.45 |
| Rotation | Rev |
| Bolt Thread | M10x1.500 |
| Description | Fan clutches |
| Electronic Clutch? | No |
| Fan Bolt Circle IN | 3.25 |
| Fan Bolt Circle MM | 82.6 |
| New or Reman | New |
| Overall Dia. IN | 6.45 |
| Overall Dia. MM | 163.83 |
| Overall Height IN | 3.13 |
| Overall Height MM | 79.5 |
| Pilot Depth IN | 0.63 |
| Pilot Depth MM | 16 |
| Pilot Dia. IN | .63 |
| Style | Severe duty |
| Type | Thermal |
| Product line | Fan Clutch |
| Fits | Buick · 3 vehicles |
Thermal design. Uses temperature-based engagement for mechanical fan control.
Severe-duty style. Built for demanding cooling system service and repeated use.
Aluminum housing. Lightweight construction with a raw aluminum finish.
Cross-references Anchor 2985 and Four Seasons 46162 for the same application. See all 2.
Overview
The Four Seasons 46162 engine cooling fan clutch is a thermal, severe-duty replacement built for applications that require controlled fan engagement. It uses an aluminum housing and a non-electronic design for straightforward service on compatible cooling systems.
Fits 1991-1993 Buick Roadmaster, N/A, for applications requiring fan clutch height less than 3 inches.
Key Features
- Thermal fan clutch design for temperature-based fan control.
- Severe-duty style for demanding cooling system service.
- Aluminum construction with a raw aluminum finish.
- Non-electronic design for simpler mechanical operation.
- 4-bolt and 4-mounting-hole configuration with M10x1.500 threads.
Detailed Description
Four Seasons 46162 is a new engine cooling fan clutch engineered as a thermal replacement for vehicles that use a compact clutch package and reverse rotation. The 6.45-inch overall diameter, 3.13-inch overall height, and 0.63-inch pilot dimensions help identify the correct application before installation. This part cross-references Anchor 2985 for the same application.
For Buick Roadmaster cooling system service, this fan clutch provides a direct mechanical solution where thermal engagement is required. The Four Seasons 46162 part number is also useful when matching replacement specifications against the original unit.
Common Uses
- Restoring proper engine fan engagement when the original clutch is worn.
- Addressing overheating caused by inconsistent fan drive operation.
- Replacing a damaged thermal clutch with the correct reverse-rotation design.
- Correcting fitment issues on applications that require a shorter clutch height.
Installation Notes
Verify overall height, pilot diameter, bolt circle, and thread size before installation. Confirm reverse rotation and thermal operation match the original cooling fan clutch specification. Use the vehicle fitment notes for 1991-1993 Buick Roadmaster applications that require fan clutch height less than 3 inches.
Quality Assurance
Four Seasons states that its products are engineered and tested for long service life, backed by more than 50 years of mobile A/C experience. The 46162 is a new part built to support dependable cooling system operation.
| Year | Make | Model | Notes |
|---|---|---|---|
| 1993 | Buick | Roadmaster | For Applications Requiring Fan Clutch Height Less Than 3 Inches; Fan Clutch |
| 1992 | Buick | Roadmaster | For Applications Requiring Fan Clutch Height Less Than 3 Inches; Fan Clutch |
| 1991 | Buick | Roadmaster | For Applications Requiring Fan Clutch Height Less Than 3 Inches; Fan Clutch |
