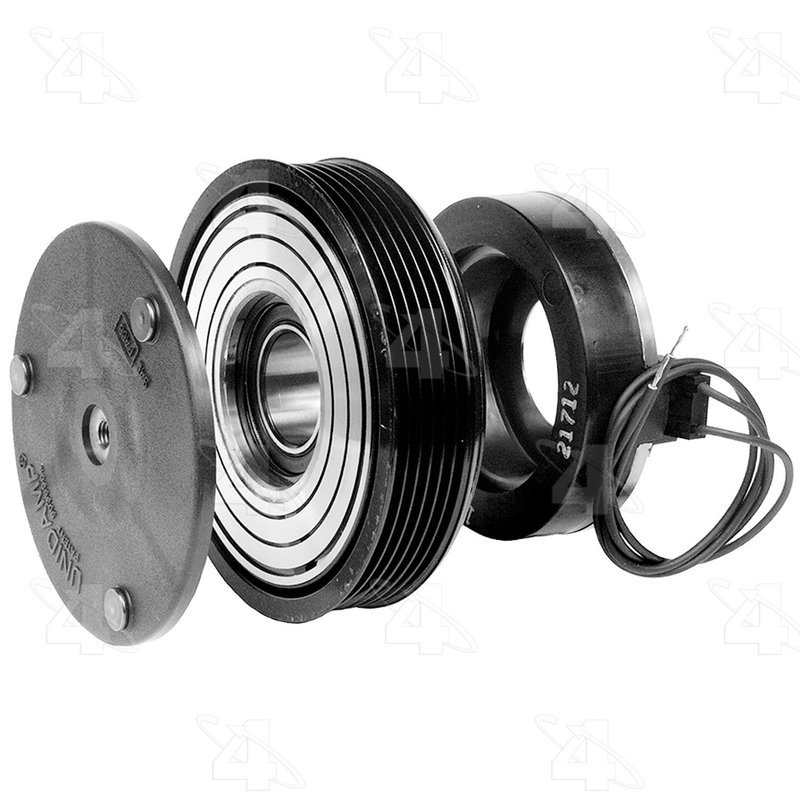

Four Seasons 47866 A/C Compressor Clutch

Overview of Four Seasons New Clutch Assembly 47866

The Four Seasons New Clutch Assembly 47866 is designed specifically for select Chrysler, Dodge, and Plymouth vehicles, including Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager models. This A/C compressor clutch ensures reliable engagement and smooth operation of your vehicle's air conditioning system.

• Constructed from durable steel with a black finish
• Compatible with serpentine belts measuring 0.750 inches wide
• Features a snap ring mounting type for secure installation
• Rotation direction: counterclockwise to clockwise (CCW-CW)
• Includes coil with 12-volt coil voltage and lead wires
• Clutch maximum diameter of 5.000 inches (127 mm primary diameter)
• Designed with 6-groove style for 10PA belt type compressors
• Meets or exceeds OEM specifications for reliable performance

Details About the New Clutch Assembly Product Line

The Four Seasons New Clutch Assembly product line offers replacement clutch assemblies that come complete with coil and lead wires, designed to match original equipment specifications. This ensures compatibility and performance consistency for HVAC A/C compressor clutches, such as part number 47866, providing a direct fit for your vehicle’s air conditioning system.

Technical Description and Specifications

This A/C compressor clutch assembly is engineered with a steel construction and a black finish to resist wear and corrosion. The clutch has a maximum diameter of 5 inches and a mounting distance of approximately 0.953 inches from the clutch to the mounting flange. It is designed for serpentine belt systems with a 0.750-inch belt width and features a 6-groove design compatible with 10PA style compressors. The snap ring mounting type allows for secure and straightforward installation. The included coil operates at 12 volts and comes with lead wires for electrical connection. The clutch rotates in a counterclockwise to clockwise direction, matching the OEM rotation pattern for Chrysler, Dodge, and Plymouth vehicles.

Applications and Common Issues Addressed

• Replacement for worn or damaged A/C compressor clutches in Chrysler Caravan and Grand Caravan models
• Restores proper engagement of the A/C compressor clutch in Dodge Grand Voyager and Town & Country vehicles
• Solves issues related to clutch slippage or failure in Plymouth Voyager air conditioning systems
• Addresses electrical coil failures causing compressor clutch malfunction
• Improves belt alignment and reduces noise from worn clutch components

Installation Notes and Tips

Installation of the Four Seasons New Clutch Assembly 47866 requires attention to the snap ring mounting method to ensure a secure fit. It may require the use of the original equipment manifold for proper assembly. Verify belt type and width compatibility before installation, confirming a serpentine belt of 0.750 inches width is used. Proper alignment of the clutch grooves with the belt is essential to avoid premature wear. Electrical connections should be checked for secure lead wire attachment to the 12-volt coil.

Quality Assurance and Warranty Information

This A/C compressor clutch assembly meets or exceeds OEM standards, ensuring reliable performance and durability. Four Seasons backs this product with quality assurance to maintain consistent operation within the specified Chrysler, Dodge, and Plymouth vehicle applications. Please refer to Four Seasons warranty terms for coverage details.
