Four Seasons 4946NK A/C Compressor and Component Kit
| Brand | Four Seasons 4946NK |
|---|---|
| Compressor Oil Included | Included |
| Compressor Oil Type | Oil |
| Expansion Device Type | Block Type |
| Expansion Valve Inlet Type | O-Ring |
| Expansion Valve Outlet Type | O-Ring |
| Gasket / Seals? | Included |
| Kit Includes | 98580 (New Compressor), 83029 (Filter Drier), 39331 (Exp Valve), 59007 (Oil), O-Rings |
| Receiver Drier/Accumulator Diameter IN | 1.000 |
| Receiver Drier/Accumulator Length IN | 9.000 |
| Refrigerant Type | R134a |
| Type | Complete Air Conditioning Kit w/ New Compressor |
| Warranty | Limited Lifetime |
| Product line | Complete A/C Kit |
| Fits | Honda · 5 vehicles |
Complete A/C kit. Includes a new compressor, filter drier, expansion valve, oil, and O-rings.

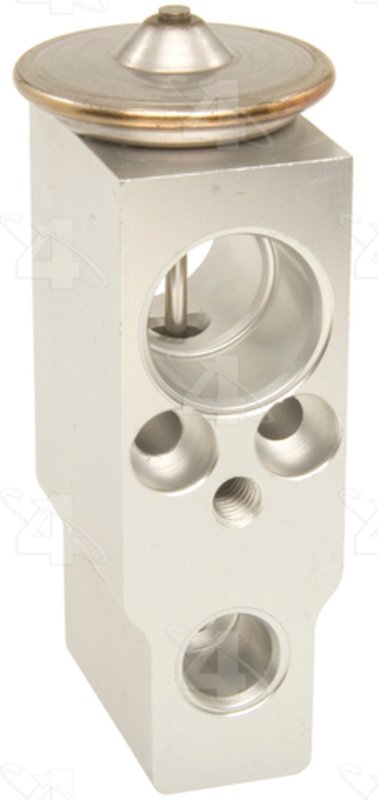

Block-type expansion valve. Uses O-ring inlet and outlet connections for a secure seal.
Compressor oil included. Supplied with oil and seals for a more complete installation.
Cross-references Four Seasons 4946NK, Raybestos Brakes MK1025 and 520511 for the same application. See all 3.
Complete A/C Kit for Honda CR-V
Restore air conditioning performance with the Four Seasons Complete A/C Kit, part number 4946NK. This kit is built for 2007-2011 Honda CR-V models equipped with the TRSE09 compressor, including 2007-2008 Honda CR-V and 2009-2011 Honda CR-V applications with the specified 4.17" pulley configuration.
Four Seasons Complete A/C Kit 4946NK combines the major components needed for a full A/C service in one package, including a new compressor, filter drier, expansion valve, oil, and O-rings. It is set up for R134a refrigerant systems and uses a block-type expansion device with O-ring inlet and outlet connections.
Key Features
- Complete A/C kit with new compressor for Honda CR-V service
- Includes compressor oil and O-rings
- Block-type expansion valve with O-ring inlet and outlet
- Receiver drier/accumulator included for system moisture control
- Configured for R134a refrigerant systems
- Limited lifetime warranty
Product Details
The Four Seasons Complete A/C Kit line is built for technicians and vehicle owners who need a coordinated replacement solution rather than sourcing individual air conditioning parts separately. Part number 4946NK includes the compressor, filter drier, expansion valve, oil, and sealing components needed for a proper A/C repair on the Honda CR-V platform listed above. This part cross-references Raybestos Brakes MK1025 for the same application.
Compatible With 2007-2008 Honda CR-V, N/A, and 2009-2011 Honda CR-V, N/A, when equipped with the TRSE09 compressor. For 2009-2011 Honda CR-V applications, the notes specify the 4.17" diameter pulley configuration.
Common A/C Problems This Kit Addresses
- Weak or inconsistent cabin cooling
- Compressor noise or compressor failure
- Moisture contamination in the A/C system
- Expansion valve restriction affecting refrigerant flow
- Leaking seals or O-ring connections
Installation Notes
Verify the vehicle’s compressor type and pulley diameter before ordering. Replace the receiver drier and expansion valve during A/C service to help support proper system operation after compressor replacement. Always evacuate and recharge the system with the correct amount of R134a refrigerant and compressor oil according to service specifications.
Quality Assurance
Four Seasons 4946NK is backed by a limited lifetime warranty. The kit is assembled with the listed service components to support a complete repair on the specified Honda CR-V applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2011 | Honda | CR-V | N/A | w/ TRSE09 Compressor; Compressor w/ 4.17" Dia. Pulley; Includes: 98580 (New Compressor), 83029 (Filter Drier), 39331 (Exp Valve), 59007 (Oil), O-Rings; Complete A/C Kit |
| 2010 | Honda | CR-V | N/A | w/ TRSE09 Compressor; Compressor w/ 4.17" Dia. Pulley; Includes: 98580 (New Compressor), 83029 (Filter Drier), 39331 (Exp Valve), 59007 (Oil), O-Rings; Complete A/C Kit |
| 2009 | Honda | CR-V | N/A | w/ TRSE09 Compressor; Compressor w/ 4.17" Dia. Pulley; Includes: 98580 (New Compressor), 83029 (Filter Drier), 39331 (Exp Valve), 59007 (Oil), O-Rings; Complete A/C Kit |
| 2008 | Honda | CR-V | N/A | w/ TRSE09 Compressor; Includes: 98580 (New Compressor), 83029 (Filter Drier), 39331 (Exp Valve), 59007 (Oil), O-Rings; Complete A/C Kit |
| 2007 | Honda | CR-V | N/A | w/ TRSE09 Compressor; Includes: 98580 (New Compressor), 83029 (Filter Drier), 39331 (Exp Valve), 59007 (Oil), O-Rings; Complete A/C Kit |
