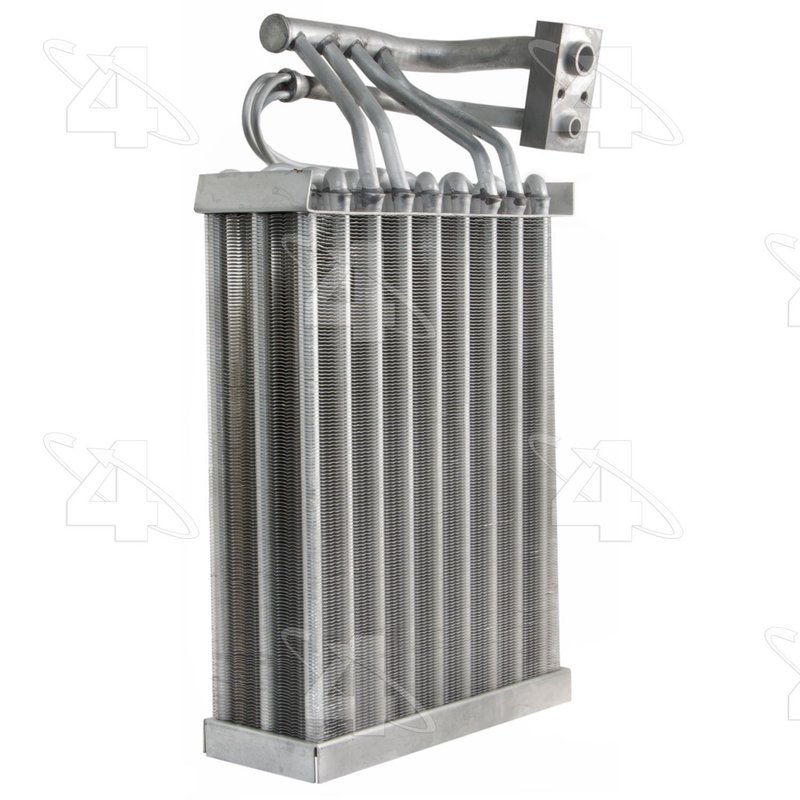

Four Seasons 54105 A/C Evaporator Core - Front

Overview of Four Seasons Evaporator Core 54105

The Four Seasons Evaporator Core 54105 is designed specifically for Dodge B-series vans including B100, B150, B200, B250, B300, and B350 models. This A/C evaporator core ensures efficient cooling performance by effectively managing refrigerant flow within the vehicle's HVAC system.

• Compatible with Dodge B100, B150, B200, B250, B300, and B350 vans
• Part number 54105 for precise identification
• Constructed from durable aluminum material
• Tube and fin design for optimal heat exchange
• Block fitting inlet and outlet for secure connections
• Core dimensions: 9.0 inches width, 14.25 inches height, 3.25 inches depth
• Includes one gasket O-ring (part number 24149) for proper sealing

Detailed Product Description

The Four Seasons Evaporator Core 54105 features a tube and fin construction made from aluminum, providing reliable heat transfer and corrosion resistance. The core measures 9 inches in width, 14.25 inches in height, and 3.25 inches in depth (82.55 mm core depth, 361.95 mm core height, 228.6 mm core width), ensuring a precise fit within the HVAC housing of Dodge B-series vans. Both the inlet and outlet fittings utilize block fittings, which facilitate secure and leak-free connections to the vehicle’s refrigerant lines. This evaporator core is engineered to maintain consistent cooling performance and durability under typical operating conditions.

About the Four Seasons Evaporator Core Product Line

The Evaporator Core line by Four Seasons focuses on delivering reliable HVAC components designed to meet or exceed OEM specifications. This product line emphasizes quality materials such as aluminum and precise manufacturing tolerances to ensure proper fitment and efficient heat exchange. The 54105 evaporator core is part of this line, providing a direct replacement solution for Dodge B-series vans requiring dependable air conditioning system repairs.

Common Applications and Issues Addressed

• Replacement of leaking or clogged evaporator cores in Dodge B100 through B350 vans
• Restoring proper A/C cooling performance in vehicles with reduced airflow or refrigerant leaks
• Resolving issues related to evaporator core corrosion or physical damage
• Eliminating unpleasant odors caused by mold or debris buildup within the evaporator
• Improving overall HVAC system efficiency and passenger comfort

Installation Notes and Tips

• Ensure compatibility with Dodge B100, B150, B200, B250, B300, and B350 models before installation
• Use the included gasket O-ring (part number 24149) to prevent refrigerant leaks
• Handle the aluminum core carefully to avoid damage to fins and tubes
• Follow vehicle manufacturer guidelines for refrigerant evacuation and recharging
• Inspect and clean surrounding HVAC components during installation for optimal performance

Quality Assurance and Warranty

Four Seasons manufactures the 54105 evaporator core to meet stringent quality standards, using corrosion-resistant aluminum and precise tube and fin construction. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. Always verify warranty terms with the product documentation or supplier.
