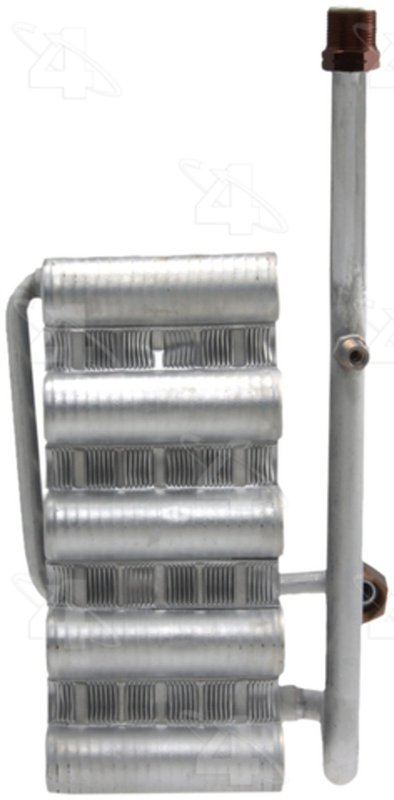

Four Seasons 54169 A/C Evaporator Core

Overview of Four Seasons Evaporator Core 54169 for Mazda Miata

The Four Seasons Evaporator Core 54169 is designed specifically for the Mazda Miata, providing reliable air conditioning performance. This A/C evaporator core is engineered to meet OEM specifications, ensuring proper fit and function within your vehicle's HVAC system.

• Compatible with Mazda Miata models
• Part number 54169 for precise identification
• Constructed from durable aluminum material
• Serpentine core type for efficient cooling
• Includes female o-ring inlet and male insert o-ring outlet fittings
• Core dimensions: approximately 9.25" width, 10.25" height, and 2.85" to 4.00" depth

Four Seasons Evaporator Core Product Line Details

The Four Seasons Evaporator Core line focuses on delivering quality replacement evaporator cores that maintain the integrity of your vehicle's air conditioning system. The 54169 model features a serpentine design that optimizes refrigerant flow and heat exchange. Manufactured from aluminum, this evaporator core offers corrosion resistance and durability, essential for long-term HVAC performance in the Mazda Miata.

Technical Specifications and Features

This evaporator core measures approximately 9-1/4 inches in width and 10-1/4 inches in height, with a core depth of about 2-13/16 inches (72.39 mm). The inlet fitting has a No. 8 outside diameter with a female o-ring connection, while the outlet fitting features a No. 10 outside diameter with a male insert o-ring. The inclusion of green o-rings ([24608] and [24610]) ensures a secure, leak-free seal during installation.

Common Applications and Problem Resolution

• Restores proper cooling performance in Mazda Miata A/C systems
• Replaces leaking or clogged evaporator cores
• Eliminates unpleasant odors caused by mold or debris buildup
• Resolves insufficient airflow or inconsistent cabin temperature
• Addresses refrigerant leaks within the evaporator core assembly

Installation Notes and Tips

When installing the Four Seasons Evaporator Core 54169, ensure all O-rings are properly seated to prevent refrigerant leaks. Verify compatibility with your specific Mazda Miata model year before installation. It is recommended to inspect and replace the receiver/drier or accumulator and flush the A/C system to maintain optimal performance. Professional installation is advised due to the complexity of HVAC system components.

Quality Assurance and Warranty

Four Seasons manufactures the 54169 evaporator core to meet strict quality standards, using corrosion-resistant aluminum and precise fitting specifications. This part is backed by Four Seasons' warranty coverage, providing assurance of durability and performance when installed correctly in compatible Mazda Miata vehicles.
