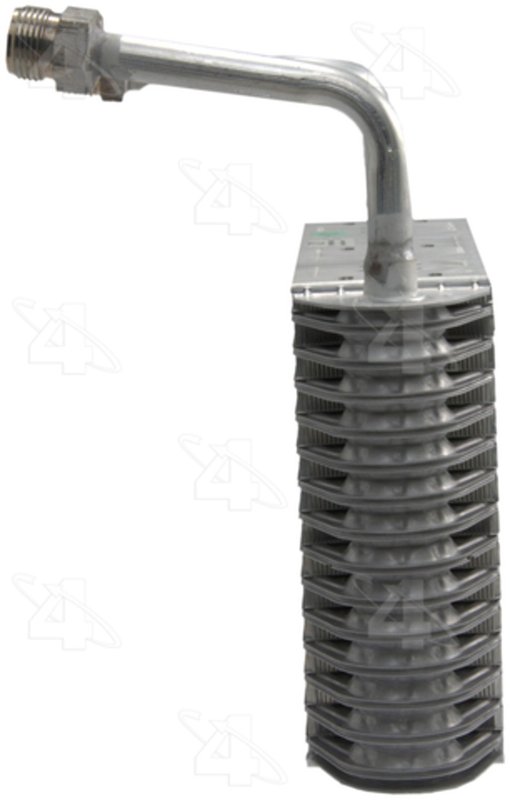

Four Seasons 54269 A/C Evaporator Core
Overview of Four Seasons Evaporator Core 54269
The Four Seasons Evaporator Core 54269 is designed specifically for Chevrolet Cavalier and Pontiac Sunfire models. This A/C evaporator core ensures efficient cooling performance by effectively removing heat and moisture from the vehicle's cabin air.
- Compatible with Chevrolet Cavalier and Pontiac Sunfire
- Part Number: 54269
- Core dimensions: 13.5 inches width, 7.5 inches height, 3 inches depth
- Plate & fin aluminum construction for durability and heat transfer
- Male insert o-ring inlet and outlet fittings (No. 10 and No. 12 diameters)
- Includes green O-rings [24682] and [24678] for secure sealing
Product Line Details: Four Seasons Evaporator Core
The Four Seasons Evaporator Core product line focuses on delivering reliable HVAC components that meet or exceed OEM specifications. The 54269 evaporator core features a plate and fin design constructed from aluminum, providing efficient heat exchange and corrosion resistance. This product line is engineered to maintain optimal air conditioning performance in compatible vehicles, including the Chevrolet Cavalier and Pontiac Sunfire.
Technical Description and Specifications
This A/C evaporator core measures 13.5 inches in width, 7.5 inches in height, and 3 inches in depth (342.9 mm x 190.5 mm x 76.2 mm). It utilizes a plate and fin design made from aluminum, which enhances heat dissipation and durability. The inlet and outlet fittings are male insert o-ring types, with outside diameters of No. 10 and No. 12 respectively, ensuring a secure and leak-free connection. The included green O-rings ([24682] and [24678]) provide additional sealing reliability during installation.
Common Applications and Issues Addressed
- Restores proper air conditioning cooling in Chevrolet Cavalier and Pontiac Sunfire
- Replaces leaking or clogged evaporator cores causing reduced A/C performance
- Eliminates musty odors caused by mold or debris buildup inside the evaporator
- Prevents refrigerant leaks that can lead to system failure
- Improves overall HVAC system efficiency and cabin comfort
Installation Notes and Tips
When installing the Four Seasons Evaporator Core 54269, ensure the vehicle is compatible with this part number and model fitment. Proper handling of the aluminum core is important to avoid damage. Replace the included green O-rings to maintain a secure seal on the inlet and outlet fittings. It is recommended to inspect the entire A/C system for leaks or blockages during installation to ensure optimal performance.
Quality Assurance and Warranty
Four Seasons manufactures the 54269 evaporator core to meet strict quality standards, using durable aluminum materials and precise manufacturing processes. This part is designed to provide reliable service life when installed correctly. Warranty coverage details should be confirmed with the supplier or manufacturer, as they may vary by region.
| Brand | Four Seasons |
| Part Number | 54269 |
| Position | Evaporator Core |
| Core Depth Fraction | 3 |
| Core Depth MM | 76.200 |
| Core Height Fraction | 7-1/2 |
| Core Height MM | 190.500 |
| Core Width Fraction | 13-1/2 |
| Core Width MM | 342.900 |
| Depth | 3.000 |
| Description | Evaporator Cores |
| Height | 7.500 |
| Inlet Fitting Outside Diameter | No. 10 |
| Inlet Fitting Type | Male Insert O-Ring |
| Material | Aluminum |
| O-Ring A Number/Desc | [24682] / Green O-Ring |
| O-Ring B Number/Desc | [24678] / Green O-Ring |
| Outlet Fitting Outside Diameter | No. 12 |
| Outlet Fitting Type | Male Insert O-Ring |
| Type | Plate & Fin |
| Width | 13.352 |
| Width | 13.500 |
This part fits 22 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Chevrolet | Cavalier | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2005 | Pontiac | Sunfire | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2004 | Chevrolet | Cavalier | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2004 | Pontiac | Sunfire | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2003 | Chevrolet | Cavalier | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2003 | Pontiac | Sunfire | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2002 | Chevrolet | Cavalier | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2002 | Pontiac | Sunfire | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2001 | Chevrolet | Cavalier | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2001 | Pontiac | Sunfire | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2000 | Chevrolet | Cavalier | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2000 | Pontiac | Sunfire | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 1999 | Chevrolet | Cavalier | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 1999 | Pontiac | Sunfire | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 1998 | Chevrolet | Cavalier | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 1998 | Pontiac | Sunfire | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 1997 | Chevrolet | Cavalier | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 1997 | Pontiac | Sunfire | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 1996 | Chevrolet | Cavalier | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 1996 | Pontiac | Sunfire | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 1995 | Chevrolet | Cavalier | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 1995 | Pontiac | Sunfire | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
