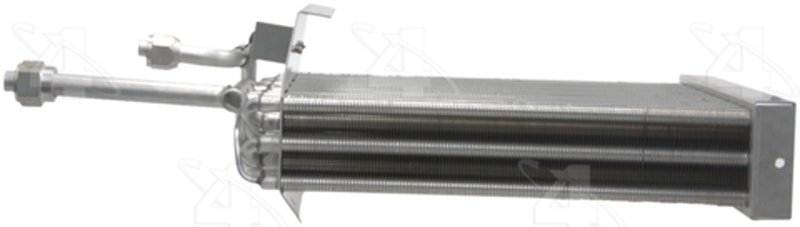

Four Seasons 54529 A/C Evaporator Core - Front

Overview of Four Seasons Evaporator Core 54529

The Four Seasons Evaporator Core 54529 is designed specifically for Ford E-Series Econoline vans, including E-100, E-150, E-250, and E-350 models along with their Club Wagon variants. This A/C evaporator core ensures efficient cooling performance by effectively managing refrigerant flow within the vehicle's HVAC system.

• Compatible with Ford E-100, E-150, E-250, and E-350 Econoline and Club Wagon models
• Part number 54529 for precise identification and fitment
• Constructed from durable aluminum material for corrosion resistance
• Serpentine core type with dimensions: width approx. 9.875 inches, height approx. 13.25 inches, depth 2.5 inches
• Female o-ring inlet and outlet fittings with No. 8 and No. 10 outside diameters respectively
• Includes green o-rings [24608] and [24610] for secure sealing

Four Seasons Evaporator Core Product Line Details

The Evaporator Core line by Four Seasons focuses on delivering reliable HVAC components engineered to meet OEM specifications. This product line emphasizes precise fitment and material quality, such as the aluminum construction found in part 54529, to maintain optimal heat exchange and refrigerant flow in vehicle air conditioning systems.

Detailed Product Description

The Four Seasons Evaporator Core 54529 features a serpentine design that maximizes surface area for efficient heat absorption. Measuring approximately 9.875 inches in width, 13.25 inches in height, and 2.5 inches in depth, this core fits directly into the HVAC housing of compatible Ford Econoline vans. The aluminum construction provides durability and resistance to corrosion, which is critical for long-term performance in automotive HVAC systems. The inlet and outlet fittings use female o-ring connections with No. 8 and No. 10 outside diameters, ensuring a tight, leak-free seal with included green o-rings. This evaporator core is engineered to replace worn or damaged units, restoring proper cooling function to the vehicle’s air conditioning system.

Common Applications and Issues Addressed

• Restores cooling efficiency in Ford E-100, E-150, E-250, and E-350 Econoline vans
• Replaces evaporator cores with leaks or corrosion damage
• Solves issues related to reduced airflow or inconsistent cabin temperature
• Addresses refrigerant leaks caused by damaged inlet or outlet fittings
• Improves overall HVAC system reliability and performance

Installation Notes and Tips

• Ensure compatibility with specific Ford Econoline model and year before installation
• Inspect and replace O-rings [24608] and [24610] to prevent refrigerant leaks
• Handle the aluminum core carefully to avoid damage to fins and fittings
• Follow manufacturer HVAC system service procedures for safe removal and installation
• Recharge the A/C system with the correct refrigerant type and amount after installation

Quality Assurance and Warranty

Four Seasons manufactures the Evaporator Core 54529 to meet or exceed OEM standards for fit, form, and function. The aluminum construction and precise fitting components contribute to long-lasting performance. While specific warranty details are not provided here, Four Seasons typically offers coverage against defects in materials and workmanship. Consult product documentation or supplier information for exact warranty terms.
