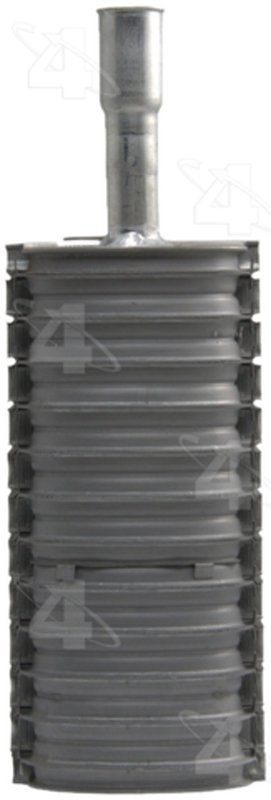

Four Seasons 54534 A/C Evaporator Core

Overview of Four Seasons Evaporator Core 54534

The Four Seasons Evaporator Core 54534 is designed for reliable HVAC performance in select Ford, Lincoln, and Mercury vehicles. This A/C evaporator core is engineered to meet the specific cooling needs of models like the Continental, Sable, and Taurus, ensuring efficient air conditioning operation.

• Core dimensions: 8.000 inches width, 7.250 inches height, 3.625 inches depth
• Plate & fin type aluminum construction for effective heat exchange
• Female springlock inlet and outlet fittings with No. 8 and No. 12 outside diameters
• Includes two sets of green O-rings ([24608] and [24612]) for secure sealing
• Compatible with Ford, Lincoln, and Mercury Continental, Sable, and Taurus models

Detailed Product Description

The Four Seasons Evaporator Core 54534 features a plate and fin design constructed from aluminum, providing durability and efficient thermal conductivity. The core measures 8 inches wide, 7.25 inches high, and 3.625 inches deep (92.075 mm depth), fitting precisely within the HVAC system of compatible vehicles. Both the inlet and outlet fittings are female springlock types, with the inlet fitting having a No. 8 outside diameter and the outlet fitting a No. 12 outside diameter, facilitating secure and leak-resistant connections. The inclusion of two sets of green O-rings ([24608] and [24612]) ensures proper sealing and prevents refrigerant leaks during operation.

About the Four Seasons Evaporator Core Product Line

The Evaporator Core line by Four Seasons focuses on delivering reliable HVAC components tailored for specific vehicle applications. This product line emphasizes precise fitment and material quality, such as aluminum cores with plate and fin construction, to maintain optimal air conditioning performance. The 54534 evaporator core is part of this line, designed to meet OEM specifications for Ford, Lincoln, and Mercury models, ensuring compatibility and durability.

Common Applications and Issues Addressed

• Restores proper cooling function in Ford Taurus, Lincoln Continental, and Mercury Sable A/C systems
• Resolves issues related to evaporator core leaks or corrosion
• Eliminates reduced airflow or insufficient cabin cooling caused by clogged or damaged cores
• Prevents refrigerant loss due to faulty seals or fittings
• Addresses HVAC system inefficiencies linked to worn evaporator components

Installation Notes and Tips

• Verify compatibility with vehicle make and model before installation
• Ensure all O-rings are properly seated and lubricated to prevent leaks
• Handle the aluminum core carefully to avoid damage to fins or fittings
• Follow manufacturer torque specifications for springlock fittings
• Inspect the HVAC system for additional issues such as clogged expansion valves or contaminated refrigerant

Quality Assurance and Warranty

Four Seasons manufactures the 54534 evaporator core to meet industry standards for durability and performance. The aluminum plate and fin construction provides corrosion resistance and efficient heat transfer. This part includes factory-installed green O-rings to ensure a secure seal. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
