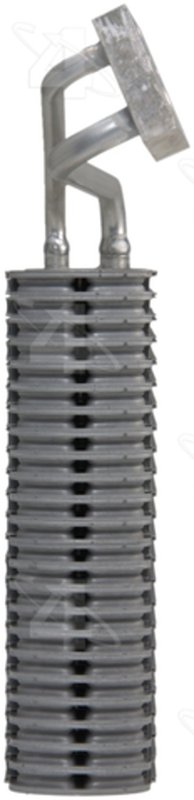

Four Seasons 54568 A/C Evaporator Core - Front

Overview of Four Seasons Evaporator Core 54568

The Four Seasons Evaporator Core 54568 is designed for reliable HVAC performance in Chrysler, Dodge, and Plymouth vehicles. This A/C evaporator core is engineered to meet the specific cooling needs of models like the Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager.

• Core dimensions: 10 inches width, approximately 10.5 to 11 inches height, and 3.125 inches depth
• Constructed from durable aluminum with plate and fin design for efficient heat exchange
• Block fitting inlet and outlet for secure and leak-resistant connections
• Includes one gasket O-ring (part number 24149) for proper sealing
• Compatible with multiple Chrysler, Dodge, and Plymouth minivan models

Detailed Product Features and Specifications

The Four Seasons Evaporator Core 54568 features a plate and fin construction made from aluminum, providing effective heat transfer and corrosion resistance. The core measures 10 inches in width and varies in height from 10.5 to 11 inches, with a depth of 3.125 inches (79.375 mm). Both the inlet and outlet fittings use block fittings, ensuring a secure connection to the vehicle’s HVAC system. This evaporator core includes one gasket O-ring (part number 24149) to maintain a tight seal and prevent refrigerant leaks.

This part is part of the Four Seasons Evaporator Core product line, which focuses on delivering reliable and precise HVAC components designed to restore factory-level air conditioning performance. The Evaporator Core line emphasizes quality materials and exact fitment for specific vehicle applications, such as Chrysler, Dodge, and Plymouth minivans.

Compatible Vehicles and Common Applications

• Chrysler Caravan and Grand Caravan
• Chrysler Town & Country
• Dodge Grand Caravan
• Plymouth Grand Voyager and Voyager

This evaporator core is intended for use in HVAC systems to replace worn or damaged evaporator cores that cause issues such as reduced cooling efficiency, refrigerant leaks, or unpleasant odors inside the vehicle cabin.

Common Issues Addressed by This Evaporator Core

• Loss of air conditioning cooling performance
• Refrigerant leaks due to damaged or corroded evaporator core
• Unusual odors from mold or debris buildup in the evaporator
• HVAC system moisture buildup causing fogging or condensation
• Inconsistent airflow or temperature control inside the vehicle

Installation Notes and Tips

Installation of the Four Seasons Evaporator Core 54568 requires disassembly of the vehicle’s HVAC housing. It is recommended to have professional service experience or consult a repair manual specific to Chrysler, Dodge, or Plymouth minivans. Ensure all O-rings and gaskets are properly seated to prevent refrigerant leaks. After installation, the A/C system should be evacuated and recharged according to manufacturer specifications.

Quality Assurance and Warranty

Four Seasons provides this evaporator core with a focus on durability and fitment accuracy. The aluminum construction and plate & fin design contribute to long service life. This part is backed by Four Seasons’ standard warranty coverage, which protects against defects in materials and workmanship under normal use conditions.
