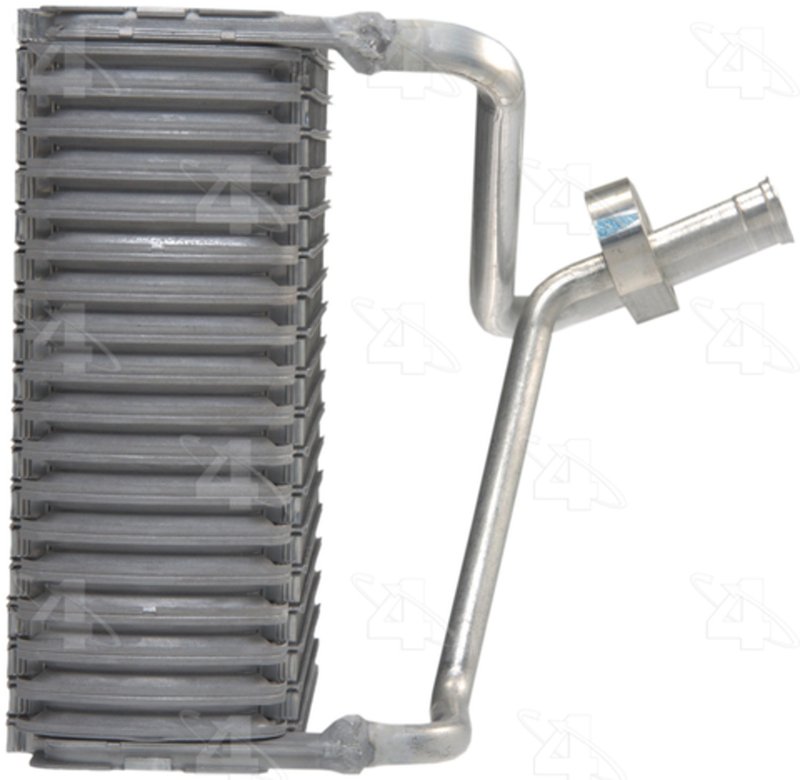

Four Seasons 54584 A/C Evaporator Core

Overview of Four Seasons Evaporator Core 54584

The Four Seasons Evaporator Core 54584 is designed specifically for Hyundai Sonata models, providing reliable HVAC performance. This aluminum evaporator core features precise dimensions and fittings to ensure proper integration with your vehicle's air conditioning system.

• Compatible with Hyundai Sonata models
• Dimensions: 9.375" width, 8.625" height, 3.625" depth
• Plate & fin type construction for efficient heat exchange
• Block fitting inlet and outlet with No. 10 outside diameter outlet fitting
• Includes green O-rings: two of part number 24608 and two of 24612

Four Seasons Evaporator Core Product Line Details

The Evaporator Core line by Four Seasons focuses on delivering durable and precise HVAC components. This product line emphasizes aluminum construction and plate & fin design to optimize cooling efficiency and fitment accuracy. The 54584 evaporator core is engineered to meet the specific requirements of Hyundai Sonata vehicles, ensuring compatibility and performance within the HVAC system.

Detailed Product Description and Specifications

This A/C evaporator core measures 9.375 inches in width, 8.625 inches in height, and 3.625 inches in depth, with core dimensions closely matching these measurements (238.125 mm width, 219.075 mm height, and 92.075 mm depth). The plate & fin design enhances heat transfer efficiency, while the aluminum material provides corrosion resistance and durability. Both the inlet and outlet fittings use block fitting types, with the outlet fitting having a No. 10 outside diameter, ensuring a secure connection within the HVAC system. The included green O-rings (part numbers 24608 and 24612) help maintain a tight seal to prevent refrigerant leaks.

Common Applications and Issues Addressed

• Replacement for faulty or leaking evaporator cores in Hyundai Sonata A/C systems
• Resolves insufficient cabin cooling due to evaporator core blockages or damage
• Addresses refrigerant leaks caused by worn or damaged evaporator cores
• Improves overall HVAC system efficiency and air quality
• Prevents moisture buildup and related HVAC malfunctions

Installation Notes and Tips

When installing the Four Seasons Evaporator Core 54584, ensure the vehicle is compatible with this part number and model. Proper handling of the aluminum core is important to avoid damage. Replace all O-rings with the included green O-rings to maintain a secure, leak-free seal. Follow manufacturer guidelines for refrigerant handling and system evacuation before and after installation. Professional installation is recommended to ensure correct fitment and system performance.

Quality Assurance and Warranty

Four Seasons manufactures the Evaporator Core 54584 to meet industry standards for durability and performance. The aluminum construction and plate & fin design contribute to long service life. This part includes the necessary O-rings for proper sealing. Warranty details should be confirmed with the product documentation or supplier, as coverage may vary.
