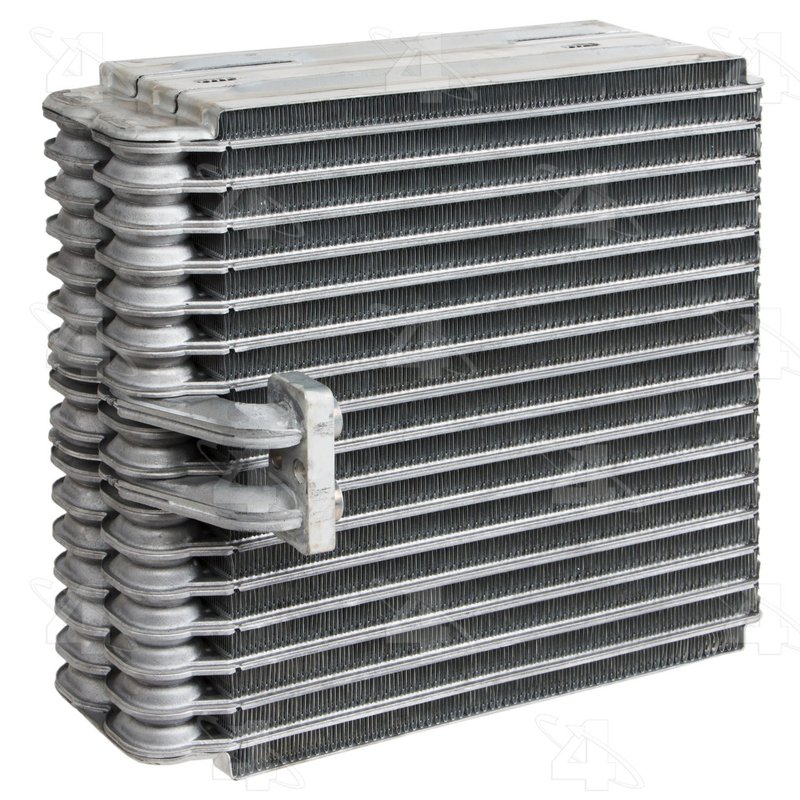

Four Seasons 54616 A/C Evaporator Core
OE Quality 60-Day Returns
Four Seasons
 Evaporator Core

Four Seasons 54616 A/C Evaporator Core

Brand Four Seasons 54616
Core Depth Fraction 3-1/8
Core Depth MM 79.375
Core Height Fraction 8-1/2
Core Height MM 215.900
Core Width Fraction 9-1/2
Core Width MM 241.300
Depth 3.125
Description Evaporator Cores
Height 8.500
Inlet Fitting Outside Diameter No. 10
Inlet Fitting Type Block Fitting
Material Aluminum
O-Ring A Number/Desc [24610] / Green O-Ring
Outlet Fitting Outside Diameter No. 10
Type Plate & Fin
Width 9.500
Product line Evaporator Core
Fits Toyota · 11 vehicles

Plate and fin design. Promotes efficient heat transfer in the A/C evaporator core.

Aluminum construction. Lightweight material helps support reliable cooling performance.

Block fittings. Uses No. 10 inlet and outlet connections for a secure fit.

Cross-references AMS Automotive 6485, Four Seasons 54616 and Global Parts Distributors LLC 4711437 for the same application. See all 30.

$104.00Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $104.00
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all A/C Evaporator Core options

Four Seasons 54616 Evaporator Core Overview

Four Seasons 54616 is an aluminum A/C evaporator core built for the HVAC system in select Toyota applications. With a plate & fin design, 9-1/2 in. width, 8-1/2 in. height, and 3-1/8 in. depth, it matches the dimensional requirements for direct replacement service in the cabin cooling circuit.

Compatible With 1991-1999 Toyota Tercel and 1992-1993 Toyota Paseo applications, this Four Seasons evaporator core is a fitment-based replacement for vehicles using No. 10 inlet and outlet block fittings. The Four Seasons 54616 part number is also referenced in aftermarket interchange listings for the same application.

Key Features

  • Aluminum evaporator core with plate & fin construction
  • Core dimensions: 9-1/2 in. wide, 8-1/2 in. high, 3-1/8 in. deep
  • No. 10 inlet and outlet fitting size
  • Block fitting inlet design
  • Uses green O-ring sealing points with OE-style fitment dimensions
  • Built for Toyota Tercel and Toyota Paseo HVAC service applications

Product Details

This evaporator core is the heat-exchange component inside the air conditioning system that absorbs cabin heat as refrigerant passes through the core. Four Seasons 54616 is sized for the listed Toyota fitments and uses an aluminum plate & fin layout to match the original HVAC packaging. If you are replacing a leaking, restricted, or inefficient A/C evaporator core on a 1992-1999 Toyota Tercel or 1992-1993 Toyota Paseo, this part number provides a direct-reference option for the correct application.

This part cross-references UAC EV16121PFXC for the same application.

Common Reasons for Replacement

  • Refrigerant loss from a leaking evaporator core
  • Weak cabin cooling caused by internal restriction
  • Corrosion or damage to the aluminum core
  • Persistent A/C odor from a contaminated evaporator assembly
  • Poor airflow performance through the HVAC evaporator section

Installation Notes

Verify the vehicle’s HVAC configuration, fitting style, and core dimensions before installation. Confirm No. 10 inlet and outlet connections and inspect the sealing surfaces and O-ring condition during service. Proper evacuation, leak testing, and refrigerant recharge procedures should be followed after replacement to restore system operation.

Quality Assurance

Four Seasons is a recognized aftermarket HVAC brand, and this evaporator core is built to match the listed application dimensions and fitting style for service replacement use.

Related reading

This part fits 11 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
1999ToyotaTercelN/APlate fin A/C evaporator core.; Evaporator Core
1998ToyotaTercelN/APlate fin A/C evaporator core.; Evaporator Core
1997ToyotaTercelN/APlate fin A/C evaporator core.; Evaporator Core
1996ToyotaTercelN/APlate fin A/C evaporator core.; Evaporator Core
1995ToyotaTercelN/APlate fin A/C evaporator core.; Evaporator Core
1994ToyotaTercelN/APlate fin A/C evaporator core.; Evaporator Core
1993ToyotaPaseoN/APlate fin A/C evaporator core.; Evaporator Core
1993ToyotaTercelN/APlate fin A/C evaporator core.; Evaporator Core
1992ToyotaPaseoN/APlate fin A/C evaporator core.; Evaporator Core
1992ToyotaTercelN/APlate fin A/C evaporator core.; Evaporator Core
1991ToyotaTercelN/AUSA - Plate Fin; w/ Pad Fitting; Evaporator Core
Directly replaces or cross-references 30 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
AMS Automotive — 6485Four Seasons — 54616Global Parts Distributors LLC — 4711437Global Parts Distributors LLC — 4711530UAC — EV3640PFCUAC — EV16121PFXC2330392880285926397203817731077731088090300149490615621642720315C37731073773108476002147600231115461619191229889196158850110110A88028CWK773107EP37229EV16121EV16121PFCT54616
