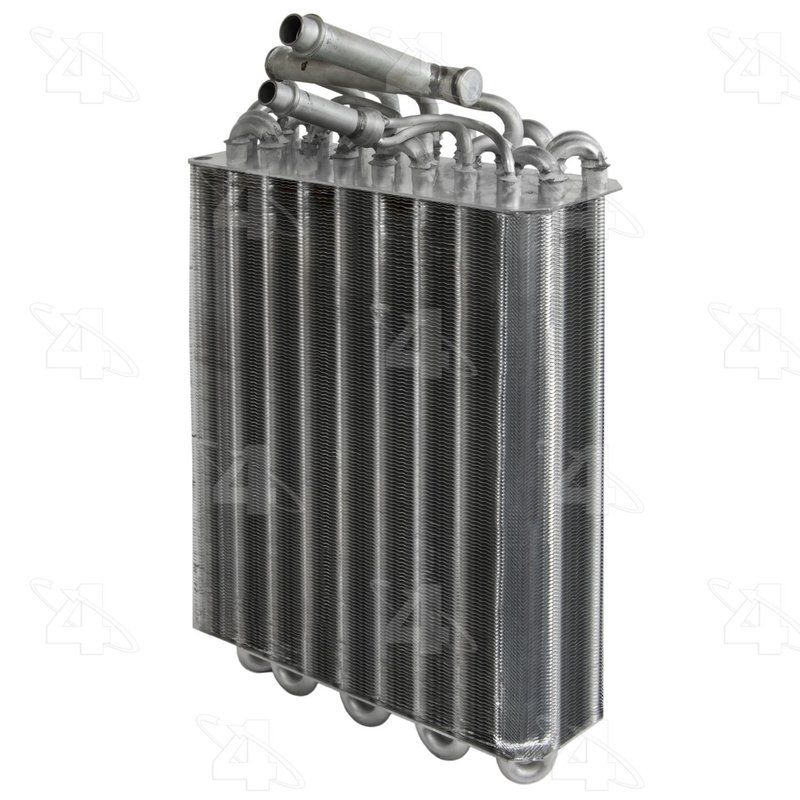

Four Seasons 54672 A/C Evaporator Core

Overview of Four Seasons Evaporator Core 54672

The Four Seasons Evaporator Core 54672 is designed for Volkswagen vehicles including the Cabrio, Corrado, Golf, Jetta, and Passat models. This A/C evaporator core is engineered to restore efficient cooling performance in your vehicle's HVAC system.

• Compatible with Volkswagen Cabrio, Corrado, Golf, Jetta, and Passat
• Part number 54672 for precise identification
• Constructed from durable aluminum material
• Tube and fin design for effective heat exchange
• Includes green O-rings [24608] and [24610] for secure sealing
• Core dimensions: 9.0" width, 10.25" height, and approximately 3.18" depth
• Inlet and outlet fittings: No. 8 block fitting inlet, No. 10 outlet diameter

Product Line Details: Evaporator Core

The Four Seasons Evaporator Core product line focuses on delivering reliable HVAC components that meet OEM specifications. This line features tube and fin evaporator cores designed to optimize heat transfer and maintain cabin comfort. The 54672 model fits specific Volkswagen vehicles, ensuring compatibility and performance within the Evaporator Core range.

Technical Description and Specifications

This A/C evaporator core is constructed from aluminum, providing corrosion resistance and durability. The core measures 9 inches in width, 10.25 inches in height, and has a depth of approximately 3.18 inches (80.8 mm). It features a tube and fin design that facilitates efficient refrigerant flow and heat exchange. The inlet fitting is a No. 8 block fitting, while the outlet fitting has a No. 10 outside diameter. Included are two green O-rings ([24608] and [24610]) to ensure a tight seal and prevent leaks during installation.

Common Applications and Problem Resolution

• Restores proper cooling in Volkswagen Cabrio, Corrado, Golf, Jetta, and Passat A/C systems
• Replaces leaking or clogged evaporator cores causing reduced airflow or poor cooling
• Addresses issues with refrigerant leaks due to worn or damaged evaporator cores
• Improves HVAC system efficiency and cabin comfort
• Eliminates unpleasant odors caused by mold or debris buildup in the evaporator

Installation Notes and Tips

When installing the Four Seasons Evaporator Core 54672, ensure the correct orientation of the inlet and outlet fittings to match the vehicle’s HVAC system. Use the included green O-rings to create a secure seal and prevent refrigerant leaks. It is recommended to inspect and replace any related seals or components during installation. Proper handling of the aluminum core is important to avoid damage to the fins or tubes.

Quality Assurance and Warranty

Four Seasons manufactures this evaporator core to meet or exceed OEM standards for fit, form, and function. The use of corrosion-resistant aluminum and precise manufacturing processes supports long-term durability. This part number 54672 is backed by Four Seasons’ quality assurance protocols. Please refer to Four Seasons for specific warranty details applicable to this evaporator core.
