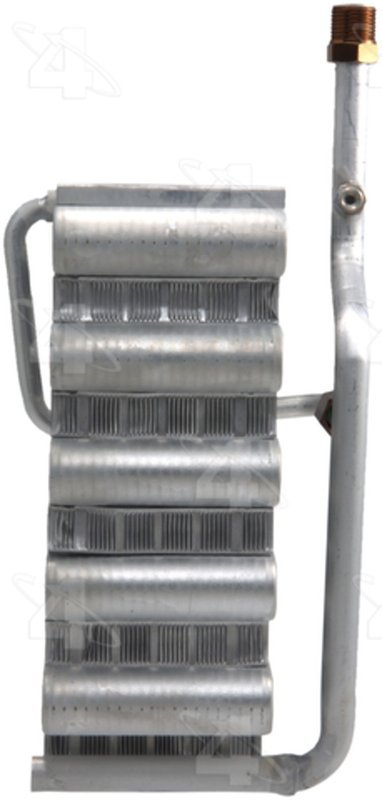

Four Seasons 54692 A/C Evaporator Core

Overview of Four Seasons Evaporator Core 54692

The Four Seasons Evaporator Core 54692 is designed specifically for Acura Integra models, providing reliable air conditioning performance. This A/C evaporator core is engineered to meet OEM specifications, ensuring efficient cooling and durability.

• Compatible with Acura Integra vehicles
• Part number 54692 for precise identification
• Constructed from corrosion-resistant aluminum
• Serpentine core design for optimal airflow
• Includes female o-ring inlet and male insert o-ring outlet fittings
• Core dimensions: approximately 8.75" width, 10.625" height, and 4.25" depth
• Equipped with green o-rings for secure sealing

Detailed Product Features and Specifications

The Four Seasons Evaporator Core 54692 belongs to the Evaporator Core product line, which focuses on delivering durable and efficient HVAC components. This evaporator core features a serpentine design that enhances heat exchange efficiency within the vehicle's air conditioning system. Made from aluminum, it offers resistance to corrosion and long service life. The core measures approximately 8.75 inches in width, 10.625 inches in height, and 4.25 inches in depth, fitting precisely within the HVAC housing of Acura Integra models.

Inlet and outlet fittings are designed for secure connections: the inlet fitting has a No. 8 outside diameter with a female o-ring type, while the outlet fitting has a No. 10 outside diameter with a male insert o-ring type. The product includes three green o-rings ([24604], [24608], and [24610]) to ensure leak-free installation and optimal system performance.

Applications and Common Issues Addressed

• Restores proper cooling function in Acura Integra A/C systems
• Replaces leaking or clogged evaporator cores
• Eliminates musty odors caused by mold or debris buildup
• Resolves insufficient cabin cooling due to evaporator failure
• Prevents refrigerant leaks that reduce system efficiency

Installation Notes and Tips

Installation of the Four Seasons Evaporator Core 54692 requires removal of the vehicle’s HVAC housing. Ensure all refrigerant is properly evacuated before beginning work. Verify that the green o-rings are correctly seated on the inlet and outlet fittings to prevent leaks. It is recommended to replace the receiver/drier or accumulator and flush the A/C system to maintain optimal performance. Professional installation is advised to comply with safety and environmental regulations.

Quality Assurance and Warranty

Four Seasons manufactures the Evaporator Core 54692 to meet strict quality standards, using durable aluminum materials and precise manufacturing processes. The product is designed to match OEM fit and function for Acura Integra vehicles. While specific warranty details are not provided here, Four Seasons typically offers limited warranties on their HVAC components to cover defects in materials and workmanship.
