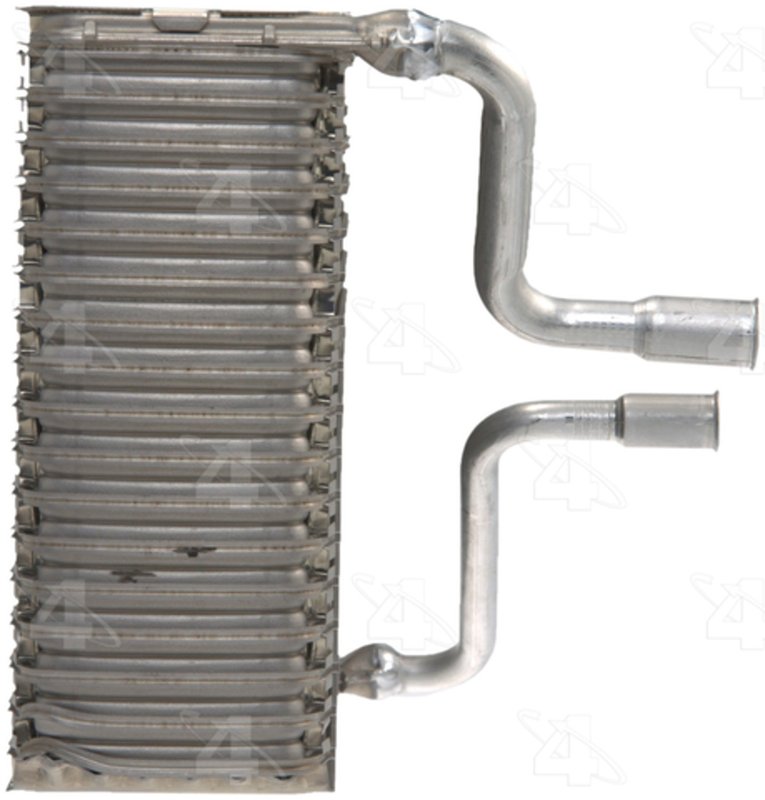

Four Seasons 54717 A/C Evaporator Core
OE Quality 60-Day Returns
Four Seasons
 Evaporator Core

Four Seasons 54717 A/C Evaporator Core

Brand Four Seasons 54717
Core Depth Fraction 3-9/16
Core Depth MM 90.487
Core Height Fraction 8-7/16
Core Height MM 213.800
Core Width Fraction 9-1/4
Core Width MM 235.000
Depth 3.563
Depth 3.625
Description Evaporator Cores
Height 8.42
Height 8.625
Inlet Fitting Outside Diameter No. 8
Inlet Fitting Type Female Springlock
Material Aluminum
O-Ring A Number/Desc [24668] / Green O-Ring
O-Ring B Number/Desc [24670] / Green O-Ring
Outlet Fitting Outside Diameter No. 10
Outlet Fitting Type Female Springlock
Type Plate & Fin
Width 9.250
Width 9.500
Product line Evaporator Core
Fits Hyundai · 5 vehicles

Aluminum construction. Plate-and-fin evaporator core for efficient heat transfer.

Female springlock fittings. Simplifies connection with inlet and outlet springlock ends.

OE-style replacement. Direct-fit evaporator core for HVAC service.

Cross-references Four Seasons 54717, Global Parts Distributors LLC 4711498 and UAC EV2732PFC for the same application. See all 23.

$108.66Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $108.66
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all A/C Evaporator Core options

Four Seasons 54717 A/C Evaporator Core

The Four Seasons 54717 evaporator core is an aluminum, plate-and-fin HVAC component built for the A/C system in select Hyundai Sonata models. It matches the core dimensions and springlock fitting layout needed for a direct-service replacement in 1989-1993 Hyundai Sonata applications.

Key Features

  • Brand: Four Seasons Evaporator Core line
  • Part number: 54717
  • Aluminum construction for HVAC service applications
  • Plate & fin design
  • Core width: 9-1/4 in. (235.000 mm)
  • Core height: 8-7/16 in. (213.800 mm)
  • Core depth: 3-9/16 in. (90.487 mm)
  • Female springlock inlet and outlet fittings
  • Inlet fitting outside diameter: No. 8
  • Outlet fitting outside diameter: No. 10

Product Details

Four Seasons 54717 is an A/C evaporator core for HVAC systems that use a compact aluminum plate-and-fin core. The listed dimensions, fitting style, and tube sizes are important for matching the original evaporator layout in the vehicle’s air conditioning case. This part cross-references UAC EV2732PFC for the same application. Compatible With 1989-1993 Hyundai Sonata, N/A. Four Seasons 54717 is also referenced in interchange listings under related OE and aftermarket numbers for this Hyundai Sonata fitment.

Common Problems This Part Can Address

  • Loss of cabin cooling performance from a leaking or restricted evaporator core
  • Refrigerant odor or visible residue from evaporator housing leakage
  • Weak airflow temperature control caused by internal blockage
  • A/C system service needs after corrosion or age-related core deterioration
  • HVAC repair on 1989-1993 Hyundai Sonata models with the original springlock connection layout

Installation Notes and Tips

Replacement on this Hyundai Sonata application may require extended labor, specialized tools, and HVAC service experience. Verify core width, height, depth, and female springlock fitting orientation before installation. Always inspect the system for contamination, replace worn seals as needed, and evacuate and recharge the A/C system according to proper service procedures after installation. Fits 1989-1993 Hyundai Sonata, N/A.

Quality Assurance

Four Seasons supplies HVAC service parts with application-specific dimensions and fitting details to support accurate replacement selection. Confirm part number 54717 against the vehicle’s original evaporator core specifications before ordering.

Related reading

This part fits 5 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
1993HyundaiSonataN/AExtended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core
1992HyundaiSonataN/AExtended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core
1991HyundaiSonataN/AExtended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core
1990HyundaiSonataN/AExtended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core
1989HyundaiSonataN/AExtended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core
Directly replaces or cross-references 23 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Four Seasons — 54717Global Parts Distributors LLC — 4711498UAC — EV2732PFC52732159602169602232067288396292732PF592554773175805042156214337731751115471719191287889195949761133000A88396CWK773175EP38229EV2732PFT54717
