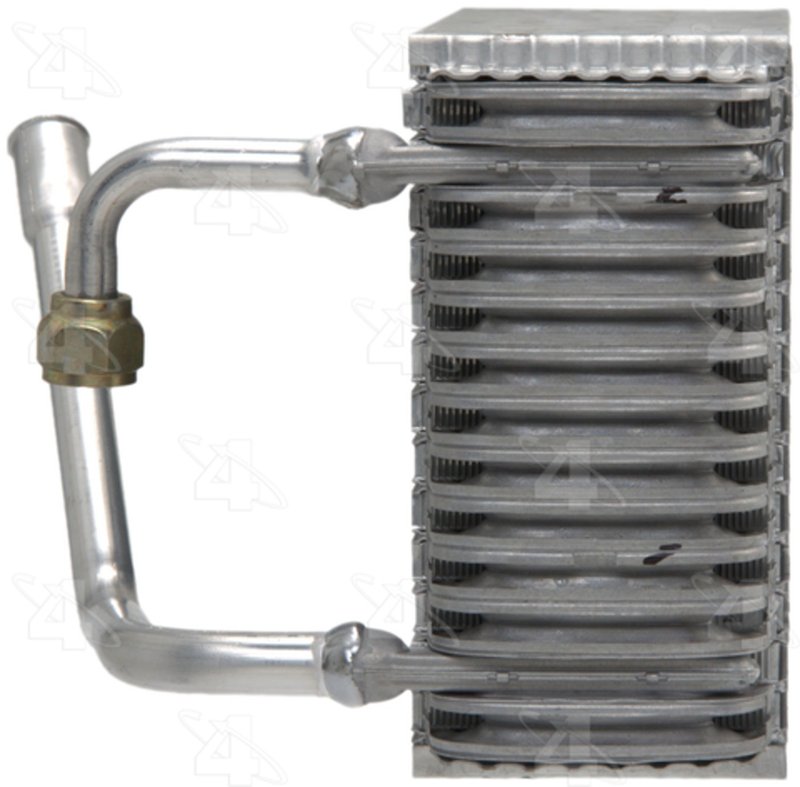

Four Seasons 54774 A/C Evaporator Core - Rear
OE Quality 60-Day Returns
Four Seasons
 Evaporator Core

Four Seasons 54774 A/C Evaporator Core - Rear

Brand Four Seasons 54774
Position Rear
Core Depth Fraction 3-9/16
Core Depth MM 90.487
Core Height Fraction 7
Core Height MM 177.800
Core Width Fraction 10-1/2
Core Width MM 266.700
Depth 3.563
Depth 3.625
Description Evaporator Cores
Height 7.000
Height 7.250
Inlet Fitting Outside Diameter No. 8
Inlet Fitting Type Female O-Ring
Material Aluminum
O-Ring A Number/Desc [24608] / Green O-Ring
O-Ring B Number/Desc [24670] / Green O-Ring
Outlet Fitting Outside Diameter No. 10
Outlet Fitting Type Female Springlock
Type Plate & Fin
Width 10.500
Product line Evaporator Core
Fits Ford and Mercury · 9 vehicles

OE-style replacement. Plate-and-fin evaporator core with aluminum construction.

Aluminum construction. Helps resist corrosion while keeping weight down.

Female O-ring inlet. Female springlock outlet for secure refrigerant connections.

Cross-references AP Exhaust 54774, Global Parts Distributors LLC 4711522 and Karlyn 60112 for the same application. See all 31.

$85.29Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $85.29
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all A/C Evaporator Core options

Rear A/C Evaporator Core for Ford Applications

Four Seasons 54774 is a rear A/C evaporator core built for select Ford minivan applications. It is an aluminum, plate-and-fin evaporator core with OE-style inlet and outlet fitting configurations for service replacement in the rear HVAC system.

Key Features

  • Brand: Four Seasons Evaporator Core line
  • Part number: 54774
  • Aluminum plate-and-fin construction
  • Core width: 10-1/2 in. (266.700 mm)
  • Core height: 7 in. (177.800 mm)
  • Core depth: 3-9/16 in. (90.487 mm)
  • Inlet fitting: No. 8 female O-ring
  • Outlet fitting: No. 10 female springlock
  • Includes OE-style O-ring references for sealing points

Product Details

Four Seasons 54774 is part of the Evaporator Core product line, focused on replacement evaporator cores for automotive HVAC service. This unit uses an aluminum plate-and-fin design with dimensions that match the rear evaporator housing requirements for the listed Ford Freestar and Ford Windstar applications. The fitting layout includes a No. 8 female O-ring inlet and a No. 10 female springlock outlet, which supports direct replacement planning for rear air conditioning repairs. This part number 54774 is also referenced in aftermarket cross listings for the same application.

Compatible with 2004-2007 Ford Freestar, rear, and 1999-2003 Ford Windstar, rear. Four Seasons 54774 is a direct-fit rear evaporator core for these Ford minivan HVAC systems.

Common Repair Uses

  • Restoring rear cabin cooling performance
  • Replacing a leaking or corroded evaporator core
  • Addressing weak airflow caused by internal HVAC restriction
  • Repairing refrigerant loss at the rear evaporator assembly
  • Correcting temperature inconsistency in the rear A/C circuit

Installation Notes

Verify the inlet and outlet fitting styles before installation, since rear HVAC evaporator connections must match the vehicle’s existing lines. Confirm core dimensions and housing fitment against the removed part to ensure proper alignment in the rear evaporator case. Use the specified O-ring sealing points during assembly and evacuate and recharge the system according to factory service procedures after installation.

Quality Assurance

Four Seasons supplies replacement HVAC components for automotive service applications, and this evaporator core is built to match the listed Ford Freestar and Ford Windstar rear fitments. Cross-reference part numbers include Spectra Premium 1054774 and TYC 97086 for the same application.

Related reading

This part fits 9 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2007FordFreestarRearEvaporator Core
2006FordFreestarRearEvaporator Core
2005FordFreestarRearEvaporator Core
2004FordFreestarRearEvaporator Core
2003FordWindstarRearEvaporator Core
2002FordWindstarRearEvaporator Core
2001FordWindstarRearEvaporator Core
2000FordWindstarRearEvaporator Core
1999FordWindstarRearEvaporator Core
Directly replaces or cross-references 31 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
AP Exhaust — 54774Global Parts Distributors LLC — 4711522Karlyn — 60112Spectra Premium — 1054774TYC — 97086UAC — EV0177PFC4F2Z19860SA6F2Z19860SA6178N60177970752301772498542884165925357205567711391010084014763141563617377113947118681115477419191320A88416CWK771139EV939605PFCT54774XF2Z19860BAYK177YK215
