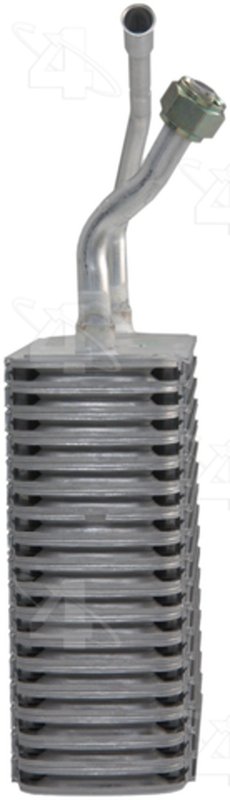

Four Seasons 54795 A/C Evaporator Core

Overview of Four Seasons Evaporator Core 54795

The Four Seasons Evaporator Core 54795 is designed for reliable air conditioning performance in select Ford and Mazda vehicles. This A/C evaporator core is engineered to meet the specific dimensions and fitting requirements of models like the Ford Ranger and Mazda B-series trucks.

• Core dimensions: 10.5" width x 9.625" height x 3.625" depth
• Material: Durable aluminum construction
• Inlet fitting: Female springlock with No. 8 outside diameter
• Outlet fitting: Female o-ring with No. 10 outside diameter
• Includes green o-rings and orifice tube for proper sealing
• Plate & fin core type for efficient heat exchange

Detailed Product Description

The Four Seasons Evaporator Core 54795 features a plate and fin design constructed from aluminum, providing effective heat transfer and corrosion resistance. Its core dimensions measure 10.5 inches in width, 9.625 inches in height, and 3.625 inches in depth (approximately 266.7 mm x 244.475 mm x 92.075 mm). The inlet fitting is a female springlock type with a No. 8 outside diameter, while the outlet fitting is a female o-ring type with a No. 10 outside diameter, ensuring compatibility with the HVAC system of compatible vehicles.

This evaporator core includes multiple green o-rings ([24610] and [24668]) and an orifice tube ([38635]) to maintain a secure, leak-free connection within the A/C system. The part is specifically designed for use in Ford and Mazda trucks, including the Ford Ranger (F-100 Ranger) and Mazda B2300, B3000, and B4000 models.

About the Four Seasons Evaporator Core Product Line

The Evaporator Core line from Four Seasons focuses on delivering precise fit and reliable performance for vehicle HVAC systems. These cores are engineered to match OEM specifications, ensuring proper airflow and cooling efficiency. The 54795 model is part of this line, offering a direct replacement solution for Ford and Mazda trucks requiring a plate and fin evaporator core.

Common Applications and Issues Addressed

• Restores proper cooling in Ford Ranger and Mazda B-series trucks
• Replaces leaking or clogged evaporator cores causing reduced A/C performance
• Solves issues related to poor airflow or unpleasant odors from the HVAC system
• Addresses refrigerant leaks due to damaged or worn evaporator cores
• Improves overall air conditioning system efficiency and reliability

Installation Notes and Tips

• Ensure compatibility with vehicle make and model before installation
• Inspect and replace all associated O-rings and seals to prevent leaks
• Handle the aluminum core carefully to avoid damage during installation
• Flush the A/C system if contamination or debris is suspected
• Follow manufacturer torque specifications for fittings and connections

Quality Assurance and Warranty

Four Seasons manufactures the Evaporator Core 54795 to meet industry standards for durability and performance. The aluminum construction and included sealing components contribute to a reliable, long-lasting repair. Warranty coverage details should be confirmed with the product documentation or supplier, as they may vary by region or distributor.
