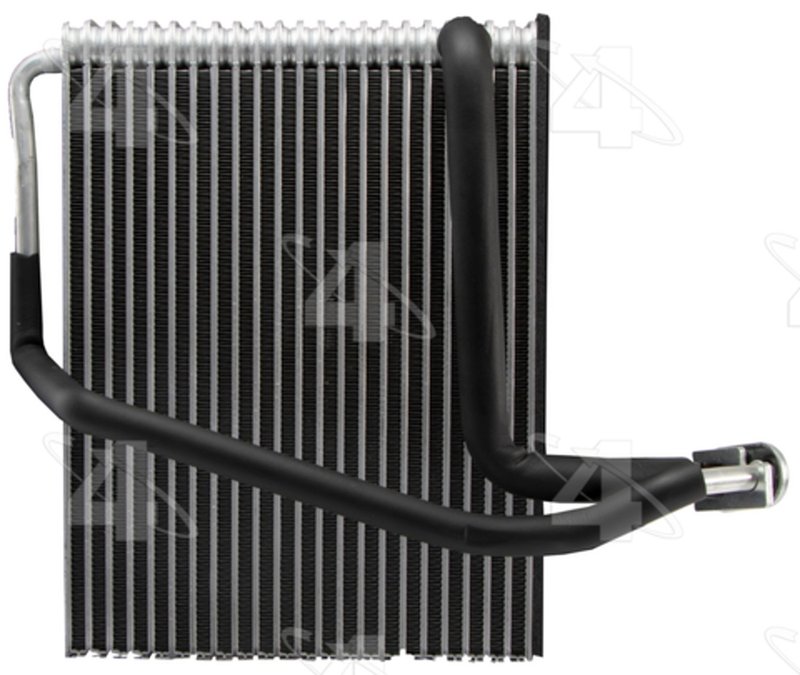

Four Seasons 54807 A/C Evaporator Core - Front

Four Seasons 54807 Evaporator Core Overview

Four Seasons 54807 is an aluminum A/C evaporator core built as a plate-and-fin unit for select Chrysler, Dodge, and related applications. It is sized for the listed HVAC cases and uses captured O-ring connections to support a direct replacement in vehicles such as the Chrysler Pacifica, Chrysler Town & Country, Dodge Caravan, and Dodge Grand Caravan.

The Four Seasons Evaporator Core line focuses on replacement HVAC components that match application-specific dimensions and fittings. This part number, 54807, is specified with a core width of 13-1/8 in., core height of 9-7/8 in., and core depth of 3-1/2 in., helping maintain proper fit inside the evaporator housing.

Key Features

• Aluminum evaporator core construction
• Plate and fin design for HVAC service replacement
• Core dimensions: 13-1/8 in. wide, 9-7/8 in. high, 3-1/2 in. deep
• Inlet fitting: No. 8 block fitting with captured O-ring
• Outlet fitting: No. 12 captured O-ring
• Includes green O-ring service points referenced by the application data
• Compatible with select 2001-2008 Chrysler and Dodge minivan HVAC systems

Detailed Description

Four Seasons 54807 evaporator core is engineered for vehicles that use a vertical mounted TXV arrangement in the HVAC system, including 2008 Chrysler Pacifica, 2004-2007 Chrysler Pacifica, 2001-2007 Chrysler Town & Country, 2001-2007 Dodge Caravan, 2001-2007 Dodge Grand Caravan, 2001-2003 Chrysler Voyager, and 2001-2002 Chrysler Grand Voyager. This part cross-references UAC EV939505PFXC for the same application. If you are searching for a Chrysler Pacifica evaporator core or a Dodge Grand Caravan A/C evaporator core, part number 54807 is the application-specific reference to verify.

As an HVAC evaporator core, this component sits inside the air conditioning case and transfers heat from the cabin air to the refrigerant circuit. The listed dimensions, fitting style, and aluminum construction are important for proper case alignment and refrigerant line connection during replacement.

What This Part Helps Address

• Loss of cabin cooling performance from a leaking or restricted evaporator core
• Refrigerant odor or residue traced to the HVAC evaporator housing
• Improper A/C operation caused by damaged evaporator fittings
• Fitment issues when replacing a worn Chrysler Pacifica or Dodge Caravan evaporator core
• HVAC service needs on vehicles with vertical mounted TXV layouts

Installation Notes and Tips

Evaporator core replacement on these applications may require significant time, specialized tools, and HVAC service experience, especially on vehicles with a vertical mounted TXV. Verify the inlet and outlet fitting types, core dimensions, and vehicle-specific HVAC case configuration before installation. For best results, confirm the application against the exact year, make, model, and position listed for your vehicle.

Quality Assurance

Four Seasons supplies replacement HVAC components for professional repair use, and this evaporator core is built to the listed dimensional and fitting specifications for the stated applications. Confirm part number 54807 against the vehicle fitment data before ordering.
