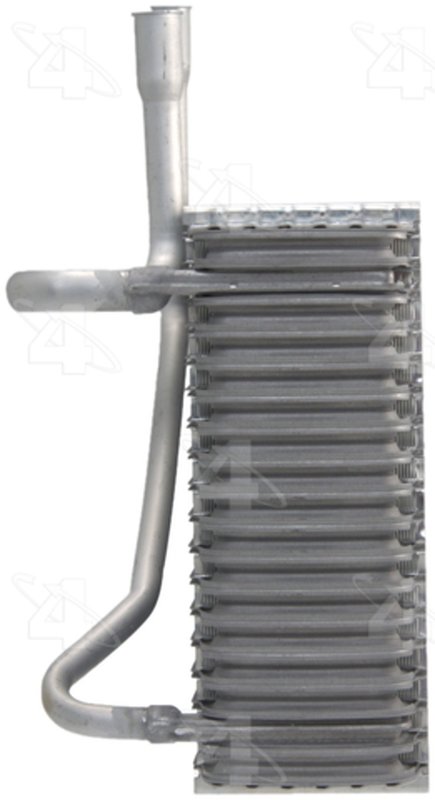

Four Seasons 54810 A/C Evaporator Core - Front
| Brand | Four Seasons 54810 |
|---|---|
| Position | Front |
| Core Depth Fraction | 3-1/2 |
| Core Depth MM | 88.900 |
| Core Height Fraction | 9 |
| Core Height MM | 228.600 |
| Core Width Fraction | 10-1/2 |
| Core Width MM | 266.700 |
| Depth | 3.500 |
| Depth | 3.625 |
| Description | Evaporator Cores |
| Height | 9.000 |
| Inlet Fitting Outside Diameter | No. 8 |
| Inlet Fitting Type | Female Springlock |
| Material | Aluminum |
| O-Ring A Number/Desc | [24668] / Green O-Ring |
| O-Ring B Number/Desc | [24670] / Green O-Ring |
| Outlet Fitting Outside Diameter | No. 10 |
| Outlet Fitting Type | Female Springlock |
| Type | Plate & Fin |
| Width | 10.500 |
| Width | 10.625 |
| Product line | Evaporator Core |
| Fits | Ford, Mercury, and Mazda · 33 vehicles |
OE-style evaporator core. Plate-and-fin aluminum construction for efficient heat transfer.
Female springlock fittings. Simplifies connection with No. 8 inlet and No. 10 outlet ports.
Includes green O-rings for a secure seal at the connections.
Cross-references Four Seasons 54810, Global Parts Distributors LLC 4711546 and PIAA 97040 for the same application. See all 39.
Four Seasons 54810 A/C Evaporator Core
The Four Seasons 54810 evaporator core is a plate-and-fin aluminum replacement for the vehicle HVAC system. It is built to match the listed core dimensions and springlock fitting layout for service on select Ford, Mercury, and Mazda applications, including Ford Escape, Mercury Mariner, and Mazda Tribute models.
Key Features
- Aluminum plate-and-fin evaporator core construction
- Core width: 10-1/2 in. (266.700 mm)
- Core height: 9 in. (228.600 mm)
- Core depth: 3-1/2 in. (88.900 mm)
- Female springlock inlet and outlet fittings
- Inlet fitting outside diameter: No. 8
- Outlet fitting outside diameter: No. 10
- Four Seasons evaporator core part number 54810
Product Details
Four Seasons Evaporator Core 54810 is specified for HVAC service where the evaporator core must match the original housing and refrigerant line connection style. The aluminum plate-and-fin design supports efficient heat transfer in the A/C system, while the listed dimensions help confirm fitment before replacement. This part cross-references TYC 97040 for the same application.
Compatible With 2005-2007 Ford Escape, front; 2006-2007 Mercury Mariner, front; 2001-2006 Mazda Tribute; 2005 Mercury Mariner; and 2001-2004 Ford Escape. Use the part number 54810 when verifying the correct evaporator core for these Ford Escape, Mercury Mariner, and Mazda Tribute HVAC repairs.
Common Repair Uses
- Restores cooling performance when the evaporator core is leaking
- Addresses loss of cabin A/C output caused by restricted or damaged core passages
- Replaces a corroded or contaminated evaporator core in the HVAC case
- Helps correct refrigerant odor or moisture-related HVAC issues tied to core failure
- Supports repair of refrigerant line connection problems at the springlock fittings
Installation Notes
Replacement of this A/C evaporator core can require extended labor, specialized tools, and HVAC system expertise. Confirm the core width, height, depth, and female springlock fitting sizes before installation, and verify the vehicle application by year, make, model, and position. For best results, compare the original unit to Four Seasons 54810 before disassembly.
Quality Assurance
Four Seasons supplies HVAC replacement components with application-specific dimensions and fitting details to support accurate service work. This evaporator core is built to the listed aluminum plate-and-fin specification for the confirmed vehicle applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2007 | Ford | Escape | — | 2.3L | L4 | GAS | Front | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2007 | Ford | Escape | — | 2.3L | L4 | ELECTRIC/GAS | Front | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2007 | Ford | Escape | — | 3.0L | V6 | — | Front | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2007 | Ford | Escape | — | 3.0L | V6 | GAS | Front | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2007 | Mercury | Mariner | — | 2.3L | L4 | GAS | Front | Evaporator Core |
| 2007 | Mercury | Mariner | — | 3.0L | V6 | — | Front | Evaporator Core |
| 2007 | Mercury | Mariner | — | 3.0L | V6 | GAS | Front | Evaporator Core |
| 2006 | Ford | Escape | — | 2.3L | L4 | GAS | Front | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2006 | Ford | Escape | — | 2.3L | L4 | ELECTRIC/GAS | Front | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2006 | Ford | Escape | — | 3.0L | V6 | — | Front | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2006 | Ford | Escape | — | 3.0L | V6 | GAS | Front | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2006 | Mazda | Tribute | — | — | — | — | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2006 | Mercury | Mariner | — | 2.3L | L4 | GAS | Front | Evaporator Core |
| 2006 | Mercury | Mariner | — | 3.0L | V6 | — | Front | Evaporator Core |
| 2006 | Mercury | Mariner | — | 3.0L | V6 | GAS | Front | Evaporator Core |
| 2005 | Ford | Escape | — | 2.3L | L4 | GAS | Front | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2005 | Ford | Escape | — | 2.3L | L4 | ELECTRIC/GAS | Front | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2005 | Ford | Escape | — | 3.0L | V6 | — | Front | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2005 | Ford | Escape | — | 3.0L | V6 | GAS | Front | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2005 | Mazda | Tribute | — | — | — | — | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2005 | Mercury | Mariner | — | — | — | — | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2004 | Ford | Escape | — | — | — | — | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2004 | Mazda | Tribute | — | 2.0L | L4 | — | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2004 | Mazda | Tribute | — | 3.0L | V6 | — | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2004 | Mazda | Tribute | LX | 3.0L | V6 | — | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2004 | Mazda | Tribute | ES | 3.0L | V6 | — | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2004 | Mazda | Tribute | DX | 2.0L | L4 | — | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2003 | Ford | Escape | — | — | — | — | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2003 | Mazda | Tribute | — | — | — | — | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2002 | Ford | Escape | — | — | — | — | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2002 | Mazda | Tribute | — | — | — | — | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2001 | Ford | Escape | — | — | — | — | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
| 2001 | Mazda | Tribute | — | — | — | — | N/A | Extended labor, specialized tools, and expertise may be necessary for replacement of this A/C Evaporator Core.; Evaporator Core |
