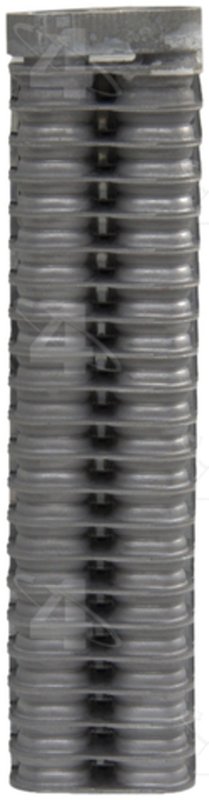

Four Seasons 54856 A/C Evaporator Core
OE Quality 60-Day Returns
Four Seasons
 Evaporator Core

Four Seasons 54856 A/C Evaporator Core

Brand Four Seasons 54856
Core Depth Fraction 2-3/8
Core Depth MM 60.000
Core Height Fraction 9
Core Height MM 228.600
Core Width Fraction 8-7/8
Core Width MM 225.425
Depth 2.375
Description Evaporator Cores
Height 9.000
Inlet Fitting Type Block Fitting
Material Aluminum
O-Ring A Number/Desc [24668] / Green O-Ring
O-Ring B Number/Desc [24670] / Green O-Ring
Outlet Fitting Type Block Fitting
Type Plate & Fin
Width 8.875
Product line Evaporator Core
Fits Volvo · 29 vehicles

Aluminum construction. Lightweight material helps support efficient heat transfer.

Plate and fin design. Promotes effective airflow through the evaporator core.

Block fittings. Uses matching inlet and outlet connections for a clean install.

Cross-references Four Seasons 54856, Global Parts Distributors LLC 4712064 and TYC 97237 for the same application. See all 16.

$99.56Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $99.56
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all A/C Evaporator Core options

Four Seasons 54856 Evaporator Core for Volvo HVAC Repair

Four Seasons 54856 is an aluminum A/C evaporator core built for Volvo HVAC service where precise fit and efficient heat transfer matter. It is a plate-and-fin evaporator core with block inlet and outlet fittings, sized for the specified Volvo applications.

Key Features

  • Brand: Four Seasons Evaporator Core line
  • Part number: 54856
  • Aluminum construction for HVAC service applications
  • Plate & fin design
  • Block fitting inlet and outlet connections
  • Core dimensions: 8-7/8 in. width, 9 in. height, 2-3/8 in. depth
  • Core size in metric: 225.425 mm x 228.600 mm x 60.000 mm
  • Uses Green O-Ring fittings: [24668] and [24670]

Product Details

The Four Seasons Evaporator Core product line focuses on direct-fit HVAC replacement components for vehicle air conditioning systems. This Four Seasons 54856 evaporator core is specified for Volvo C30, C70, S40, and V50 models across the listed model years, including 2004-2006 Volvo S40 and 2005-2006 Volvo V50 with bolt-on tubes. If you are replacing a leaking or restricted Volvo A/C evaporator core, this part number 54856 provides the listed dimensions and fitting style needed for service work.

This part cross-references TYC 97237 and UAC EV939901PFXC for the same application.

Vehicle Fitment

  • Fits 2008-2013 Volvo C30, N/A
  • Fits 2006-2013 Volvo C70, N/A
  • Fits 2007-2011 Volvo S40, N/A
  • Fits 2007-2011 Volvo V50, N/A
  • Fits 2004-2006 Volvo S40, N/A, w/ Bolt-On Tubes
  • Fits 2005-2006 Volvo V50, N/A, w/ Bolt-On Tubes

Common Repair Uses

  • Restores cabin cooling when the original evaporator core is leaking
  • Addresses restricted refrigerant flow through a damaged or clogged core
  • Replaces a corroded aluminum evaporator in the HVAC case
  • Supports repair of weak A/C performance in Volvo C30, C70, S40, and V50 models
  • Helps correct odor or moisture issues caused by a failing evaporator assembly

Installation Notes

Verify the inlet and outlet fitting style, core dimensions, and vehicle year before installation. For the 2004-2006 Volvo S40 and 2005-2006 Volvo V50 applications, confirm the bolt-on tube configuration noted in the fitment data. Always inspect the system for contamination, replace damaged seals as needed, and evacuate and recharge the A/C system according to factory service procedures.

Quality Assurance

Four Seasons supplies HVAC replacement parts for automotive air conditioning service, and this evaporator core is built to the listed specifications for the confirmed Volvo applications.

Related reading

This part fits 29 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2013VolvoC30——N/AEvaporator Core
2013VolvoC70——N/AEvaporator Core
2012VolvoC30——N/AEvaporator Core
2012VolvoC70——N/AEvaporator Core
2011VolvoC30——N/AEvaporator Core
2011VolvoC70——N/AEvaporator Core
2011VolvoS40——N/AEvaporator Core
2011VolvoV50——N/AEvaporator Core
2010VolvoC302.5LL5N/AEvaporator Core
2010VolvoC70——N/AEvaporator Core
2010VolvoS40——N/AEvaporator Core
2010VolvoV50——N/AEvaporator Core
2009VolvoC302.5LL5N/AEvaporator Core
2009VolvoC70——N/AEvaporator Core
2009VolvoS40——N/AEvaporator Core
2009VolvoV50——N/AEvaporator Core
2008VolvoC302.5LL5N/AEvaporator Core
2008VolvoC70——N/AEvaporator Core
2008VolvoS40——N/AEvaporator Core
2008VolvoV50——N/AEvaporator Core
2007VolvoC70——N/AEvaporator Core
2007VolvoS40——N/AEvaporator Core
2007VolvoV50——N/AEvaporator Core
2006VolvoC70——N/AEvaporator Core
2006VolvoS40——N/Aw/ Bolt-On Tubes; Evaporator Core
2006VolvoV50——N/Aw/ Bolt-On Tubes; Evaporator Core
2005VolvoS40——N/Aw/ Bolt-On Tubes; Evaporator Core
2005VolvoV50——N/Aw/ Bolt-On Tubes; Evaporator Core
2004VolvoS40——N/Aw/ Bolt-On Tubes; Evaporator Core
Directly replaces or cross-references 16 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Four Seasons — 54856Global Parts Distributors LLC — 4712064TYC — 97237UAC — EV939901PFXC28885677325380519027338581115485629939901PF3066531530767329306653150307673290A88856EV939901PF
