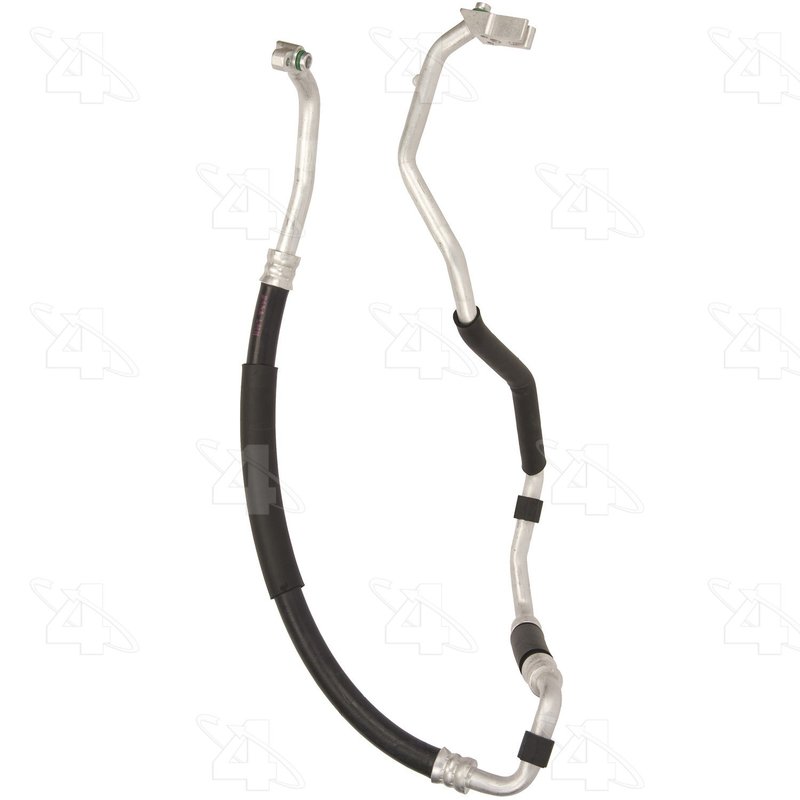

Four Seasons 55288 A/C Refrigerant Suction Hose
OE Quality 60-Day Returns
Four Seasons
 Hose Assembly

Four Seasons 55288 A/C Refrigerant Suction Hose

Brand Four Seasons 55288
Bracket? w/o Bracket
Component Type Suction Line
Description Hose Assemblies
End 1 Type P-Nut Fitting
End 2 Type Captured O-Ring
Fittings Included Included
Friction Material Attachment w/o Switch Port
Gasket Or Seal Included Included
Material Aluminum / Rubber
Muffler? w/o Muffler
O-Ring A Number/Desc [24641] / Green O-Ring
O.E. Replacement? Yes
Refrigerant Type R134-A
Service Port Qty 1
Service Port Size 13 mm
Service Port Type R134-A Quick Disconnect
Service Port? w/ Service Port
Suction End Type P-Nut Fitting
Sve Port Low Side Low Side
Switch Included? Not Included
System Pressure Low Pressure
Product line Hose Assembly
Fits Hyundai · 4 vehicles

OE replacement. Direct-fit hose assembly for the suction line.

Aluminum / rubber construction. Balances strength with flexibility in the refrigerant line.

Service port included. Built with an R134-A quick disconnect port.

Cross-references Four Seasons 55288, Global Parts Distributors LLC 4812007 and UAC HA11101C for the same application. See all 11.

$100.70Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $100.70
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all A/C Refrigerant Suction Hose options

Four Seasons 55288 A/C Suction Hose

Four Seasons 55288 is an OE replacement A/C refrigerant suction hose assembly for low-pressure HVAC service. It is built with aluminum and rubber construction and includes the service port, fittings, and seals needed for the specified application.

Compatible with 2003-2006 Hyundai Santa Fe HVAC systems, this suction line is built for R134-A refrigerant service and low-side operation. The Four Seasons Hose Assembly line focuses on direct-fit replacement components for air conditioning hose and pipe applications.

Key Features

  • Part number 55288
  • A/C refrigerant suction hose assembly for low-pressure systems
  • Aluminum / rubber construction
  • R134-A refrigerant type
  • P-nut fitting suction end with captured O-ring end
  • Includes service port with 13 mm R134-A quick disconnect
  • OE replacement design
  • Includes gasket or seal and fittings
  • Low-side service port configuration

Application Details

This Four Seasons 55288 hose assembly is used in the HVAC suction side to route refrigerant vapor back to the compressor. It is a direct replacement for the original suction line on 2003-2006 Hyundai Santa Fe models and is built for R134-A systems. Cross-reference part numbers for the same application include UAC HA11101C and Global Parts Distributors LLC 4812007.

What This Part Helps Resolve

  • Refrigerant loss from a cracked or leaking suction hose
  • Damaged or corroded hose fittings
  • Improper low-side service port function
  • HVAC performance issues caused by a compromised suction line
  • Seal leakage at hose connection points

Installation Notes and Tips

Verify the vehicle uses an R134-A low-pressure suction line with a 13 mm quick disconnect service port before installation. Replace the hose only after recovering refrigerant and inspecting mating surfaces, O-rings, and connection points for wear or contamination. Confirm the routing matches the original hose assembly on the Hyundai Santa Fe to ensure proper fitment.

Quality Assurance

Four Seasons 55288 is an OE replacement hose assembly built to match the original application requirements for the 2003-2006 Hyundai Santa Fe. The part is specified with included seals, fittings, and service port details to support a direct replacement installation.

Related reading

This part fits 4 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2006HyundaiSanta Fe3.5LV6N/AA/C Refrigerant Suction Hose fits multiple vehicle models.; Hose Assembly
2005HyundaiSanta Fe3.5LV6N/AA/C Refrigerant Suction Hose fits multiple vehicle models.; Hose Assembly
2004HyundaiSanta Fe3.5LV6N/AA/C Refrigerant Suction Hose fits multiple vehicle models.; Hose Assembly
2003HyundaiSanta Fe3.5LV6N/AA/C Refrigerant Suction Hose fits multiple vehicle models.; Hose Assembly
Directly replaces or cross-references 11 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Four Seasons — 55288Global Parts Distributors LLC — 4812007UAC — HA11101C200356785297802867111552889776326300A70303CWK785297T55288
