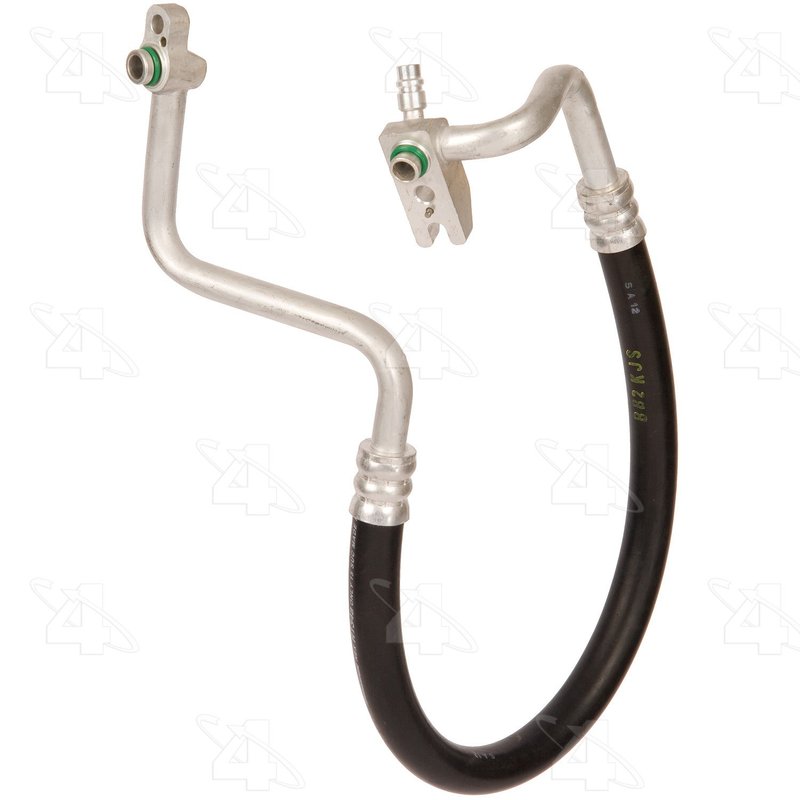

Four Seasons 55293 A/C Refrigerant Suction Hose
| Brand | Four Seasons 55293 |
|---|---|
| Bracket? | w/o Bracket |
| Component Type | Suction Line |
| Description | Hose Assemblies |
| End 1 Type | P-Nut Fitting |
| End 2 Type | Captured O-Ring |
| Fittings Included | Included |
| Friction Material Attachment | w/o Switch Port |
| Gasket Or Seal Included | Included |
| Material | Aluminum / Rubber |
| Muffler? | w/o Muffler |
| O-Ring A Number/Desc | [24641] / Green O-Ring |
| O.E. Replacement? | Yes |
| Refrigerant Type | R134-A |
| Service Port Qty | 1 |
| Service Port Size | 13 mm |
| Service Port Type | R134-A Quick Disconnect |
| Service Port? | w/ Service Port |
| Suction End Type | P-Nut Fitting |
| Sve Port Low Side | Low Side |
| Switch Included? | Not Included |
| System Pressure | Low Pressure |
| Product line | Hose Assembly |
| Fits | Hyundai · 5 vehicles |
OE replacement. Direct-fit suction hose assembly for straightforward service.
Aluminum / rubber construction. Balances strength with flexibility in the refrigerant line.
Service port included. Built with an R134-A quick disconnect port for easy servicing.
Cross-references Four Seasons 55293, UAC HA11310C and 200366 for the same application. See all 10.
Four Seasons 55293 A/C Suction Hose
Four Seasons 55293 is an OE replacement A/C refrigerant suction hose assembly for the low-pressure side of the air conditioning system. Built with aluminum and rubber construction, it is made for R134-A systems and includes the service port and required seals for a direct replacement on select Hyundai Accent applications.
Key Features
- Part number 55293 from Four Seasons Hose Assembly line
- A/C refrigerant suction hose for low-pressure operation
- Aluminum / rubber construction
- R134-A refrigerant type
- Captured O-ring end and P-nut fitting suction end
- Includes service port, fittings, and gasket or seal
- OE replacement design for factory-style service
- Fits 2001-2005 Hyundai Accent, N/A
Product Details
This Four Seasons 55293 suction line is built for the low side of the HVAC system where refrigerant returns to the compressor. The hose assembly uses a P-nut fitting on one end and a captured O-ring connection on the other, with a 13 mm R134-A quick disconnect service port. It is specified for R134-A refrigerant systems and is listed as an OE replacement part for 2001-2005 Hyundai Accent models. Four Seasons 55293 is also referenced under cross numbers such as 200366 and HA11310C for the same application.
The Four Seasons Hose Assembly product line focuses on replacement HVAC hose assemblies that match factory connection styles and service-port requirements. For Hyundai Accent A/C repair work, this part number 55293 provides the suction-side hose configuration needed to restore refrigerant flow through the low-pressure circuit.
Common Repair Uses
- Leaking or cracked A/C suction hose
- Damaged low-side refrigerant line connections
- Service-port wear or seal leakage
- Loss of refrigerant pressure in the suction circuit
- Restoring A/C function on 2001-2005 Hyundai Accent models
Installation Notes
Verify the vehicle uses an R134-A low-side suction hose with a 13 mm quick disconnect service port before installation. Inspect mating surfaces, replace worn seals as needed, and confirm the captured O-ring and P-nut fitting align with the original routing and connection points. Evacuate and recharge the system according to the vehicle service procedure after replacement.
Quality Assurance
Four Seasons 55293 is an OE replacement HVAC hose assembly built to match the original suction-line application for select Hyundai Accent vehicles. Its factory-style fittings, included seals, and service-port configuration support a direct repair approach for the A/C refrigerant circuit.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Hyundai | Accent | — | — | N/A | A/C Refrigerant Suction Hose fits multiple vehicle models.; Hose Assembly |
| 2004 | Hyundai | Accent | — | — | N/A | A/C Refrigerant Suction Hose fits multiple vehicle models.; Hose Assembly |
| 2003 | Hyundai | Accent | 1.6L | L4 | N/A | A/C Refrigerant Suction Hose fits multiple vehicle models.; Hose Assembly |
| 2002 | Hyundai | Accent | 1.6L | L4 | N/A | A/C Refrigerant Suction Hose fits multiple vehicle models.; Hose Assembly |
| 2001 | Hyundai | Accent | 1.6L | L4 | N/A | A/C Refrigerant Suction Hose fits multiple vehicle models.; Hose Assembly |
