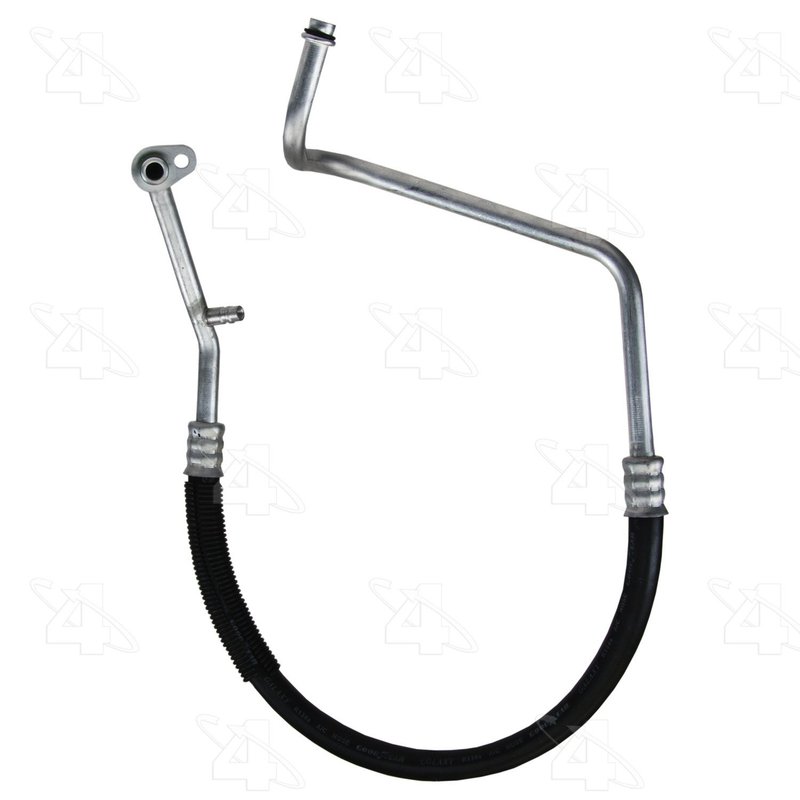

Four Seasons 56097 A/C Refrigerant Suction Hose

Overview of Four Seasons Hose Assembly 56097

The Four Seasons Hose Assembly 56097 is designed specifically for the A/C refrigerant suction line in Chrysler, Dodge, and Plymouth vehicles. This hose assembly is engineered to meet original equipment specifications, ensuring reliable performance in your Caravan, Grand Caravan, Grand Voyager, or Voyager models.

• Constructed from durable aluminum and rubber materials
• Includes P-nut fitting on one end and O-ring on the other for secure connections
• Compatible with R134-a refrigerant systems
• Equipped with a low-pressure suction line and flange suction end type
• Comes with included gaskets, seals, fittings, and a mounting bracket
• Features a 13 mm service port on the low-pressure side without a switch or muffler
• OE replacement part ensuring proper fit and function

Detailed Product Description

The Four Seasons Hose Assembly 56097 belongs to the Hose Assembly product line, which focuses on delivering precise and durable hose solutions for automotive HVAC systems. This particular assembly is crafted from a combination of aluminum and rubber, providing flexibility and resistance to wear under typical operating conditions. The hose features a P-nut fitting on one end and an O-ring on the other, both designed to maintain a secure, leak-free connection within the A/C system. It is compatible with R134-a refrigerant, the standard for many modern vehicles, including Chrysler, Dodge, and Plymouth models such as the Caravan and Voyager series.

This suction line operates under low pressure and includes a flange suction end type, which helps ensure proper sealing and fitment. The assembly comes complete with green O-rings (part numbers 24622 and 24681), a gasket, and all necessary fittings, along with a mounting bracket for secure installation. The service port is sized at 13 mm and located on the low-pressure side, facilitating maintenance without the need for a switch or muffler.

Common Applications and Issues Addressed

• Replacement of worn or damaged A/C refrigerant suction hoses in Chrysler Caravan and Dodge Grand Caravan
• Resolving refrigerant leaks caused by deteriorated seals or fittings
• Restoring proper refrigerant flow in Plymouth Grand Voyager A/C systems
• Addressing low-pressure side failures in HVAC hoses
• Ensuring compatibility with R134-a refrigerant systems for effective cooling

Installation Notes and Tips

• Verify vehicle compatibility with Chrysler, Dodge, or Plymouth Caravan and Voyager models before installation
• Ensure all O-rings and gaskets are properly seated to prevent leaks
• Use the included mounting bracket to secure the hose assembly firmly in place
• Check the service port for accessibility and proper sealing after installation
• Follow manufacturer torque specifications for P-nut fittings to avoid damage

Quality Assurance and Warranty

The Four Seasons Hose Assembly 56097 is an OE replacement part, manufactured to meet or exceed original equipment standards. It undergoes rigorous quality control to ensure durability and reliable performance in automotive HVAC systems. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
