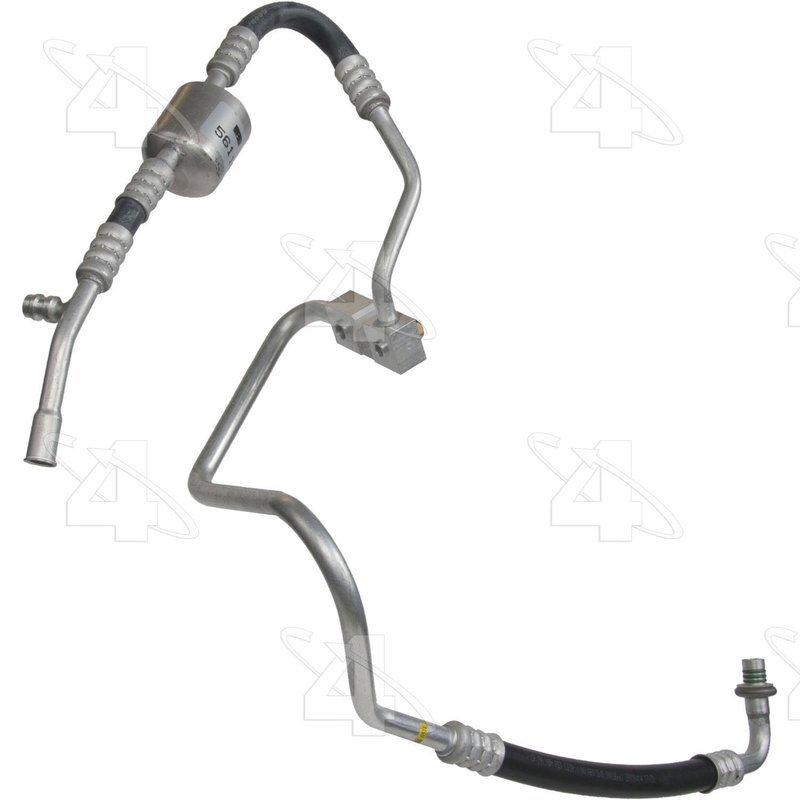

Four Seasons 56116 A/C Refrigerant Discharge / Suction Hose Assembly

Overview of Four Seasons Hose Assembly 56116

The Four Seasons Hose Assembly 56116 is designed specifically for Ford Explorer and Mazda Navajo models, providing reliable A/C refrigerant discharge and suction line functionality. Constructed with durable aluminum and rubber materials, this hose assembly supports R134a refrigerant systems and includes essential sealing components for optimal performance.

• Compatible with Ford Explorer and Mazda Navajo vehicles
• Constructed from aluminum and rubber for durability
• Designed for R134a refrigerant systems
• Includes green O-rings and gasket for secure sealing
• Features female and male springlock fittings
• Equipped with a muffler and manifold for noise reduction and system efficiency
• Service port included without switch or bracket

Detailed Product Description

This Four Seasons Hose Assembly 56116 belongs to the Hose Assembly product line, which focuses on delivering precise HVAC hose and pipe solutions for automotive air conditioning systems. The assembly combines aluminum and rubber materials to withstand pressure and temperature variations typical in A/C systems. It is engineered for use with R134a refrigerant, the standard for many modern vehicles, including the Ford Explorer and Mazda Navajo.

The hose assembly features a female springlock fitting on the discharge end (0.500 inches / 12.7 mm) and a male springlock fitting on the suction end (0.625 inches / 15.875 mm). It includes a manifold and muffler to help maintain system integrity and reduce noise. The package comes with multiple green O-rings ([24606], [24668], [24670]) and a spring O-ring ([24218]) to ensure leak-free connections. While fittings and brackets are not included, the assembly is an original equipment replacement part, ensuring compatibility and performance.

Common Applications and Issues Addressed

• Replacement of worn or damaged A/C refrigerant discharge and suction hoses
• Resolving refrigerant leaks caused by degraded seals or hoses
• Restoring proper refrigerant flow in Ford Explorer and Mazda Navajo A/C systems
• Eliminating noise issues with the included muffler
• Maintaining system pressure and preventing contamination with included O-rings and gasket

Installation Notes and Tips

• Ensure vehicle compatibility with Ford Explorer or Mazda Navajo before installation
• Verify that the refrigerant type is R134a to match system requirements
• Use the included green O-rings and gasket to prevent leaks during assembly
• Note that fittings and brackets are not included and may need to be reused or sourced separately
• Check for proper seating of the female and male springlock fittings to ensure secure connections

Quality Assurance and Warranty

The Four Seasons Hose Assembly 56116 is an original equipment replacement part, designed to meet or exceed OEM specifications for durability and fitment. It includes all necessary sealing components to maintain system integrity. While specific warranty details are not provided here, Four Seasons products typically come with manufacturer-backed warranties to ensure customer confidence and product reliability.
