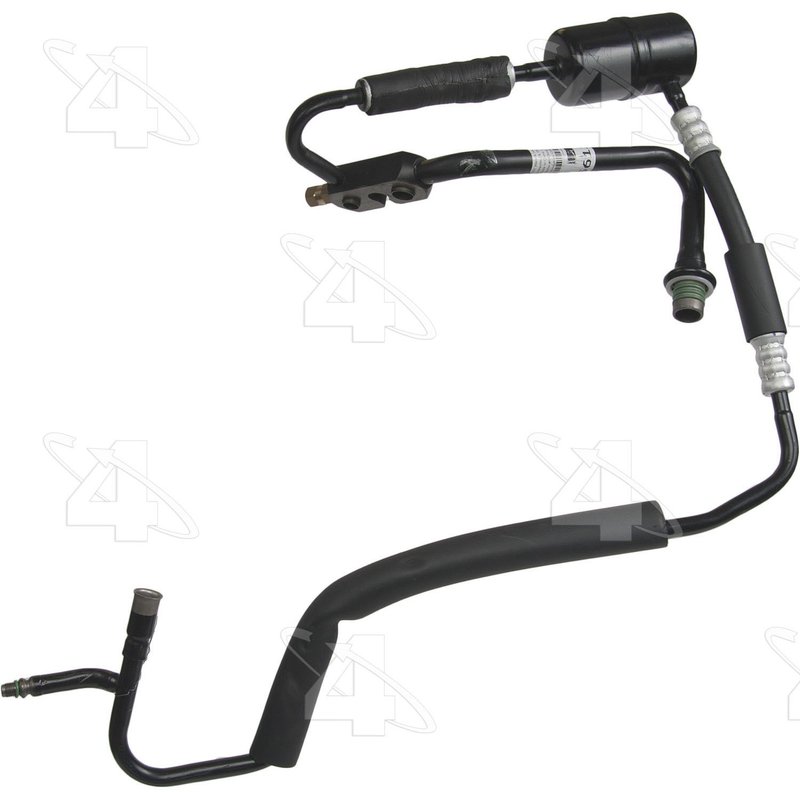

Four Seasons 56117 A/C Refrigerant Discharge / Suction Hose Assembly

Overview of Four Seasons Hose Assembly 56117

The Four Seasons Hose Assembly 56117 is designed specifically for Ford and Mercury vehicles, including the Sable and Taurus models. This A/C refrigerant discharge and suction hose assembly ensures reliable HVAC system performance by maintaining proper refrigerant flow and pressure.

• Constructed from durable aluminum and rubber materials
• Compatible with R134a refrigerant type
• Includes green O-rings and spring seals for secure connections
• Features female and male springlock fittings for discharge and suction ends
• Equipped with a muffler and manifold for noise reduction and system efficiency
• Includes gasket or seal but excludes fittings and brackets
• Designed as an OE replacement part

Detailed Product Description

The Four Seasons Hose Assembly 56117 belongs to the Hose Assembly product line, which focuses on delivering precise HVAC hose and pipe solutions for automotive air conditioning systems. This assembly combines aluminum and rubber components to provide durability and flexibility, essential for handling the pressures and temperatures within the A/C system. It is engineered for use with R134a refrigerant, the standard for many modern vehicles.

The discharge end features a 0.500 inch (12.7 mm) female springlock fitting, while the suction end uses a 0.750 inch (19.05 mm) male springlock fitting, ensuring a secure and leak-resistant connection. The assembly includes multiple green O-rings ([24670] and [24672]) and spring seals ([24220] and [24222]) to maintain system integrity. Additionally, the hose assembly comes with a muffler and manifold to reduce noise and improve overall system performance. Note that fittings and brackets are not included, and the service port is without a switch port.

Applications and Common Issues Addressed

• Replacement of worn or leaking A/C refrigerant discharge and suction hoses
• Restoring proper refrigerant flow in Ford Sable and Taurus HVAC systems
• Eliminating A/C system noise through integrated muffler
• Preventing refrigerant leaks with included O-rings and seals
• Ensuring compatibility with R134a refrigerant systems

Installation Notes and Tips

• Verify compatibility with Ford Sable and Mercury Taurus models before installation
• Ensure all O-rings and seals are properly seated to prevent leaks
• Use appropriate tools for springlock fittings to avoid damage
• Check for the presence of the muffler and manifold during installation for noise reduction benefits
• Note that fittings and brackets are not included and may need to be sourced separately

Quality Assurance and Warranty

The Four Seasons Hose Assembly 56117 is designed as an original equipment replacement, meeting or exceeding OEM specifications for fit, form, and function. The inclusion of multiple O-rings and seals ensures a secure and leak-free installation. While specific warranty details are not provided, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship.
