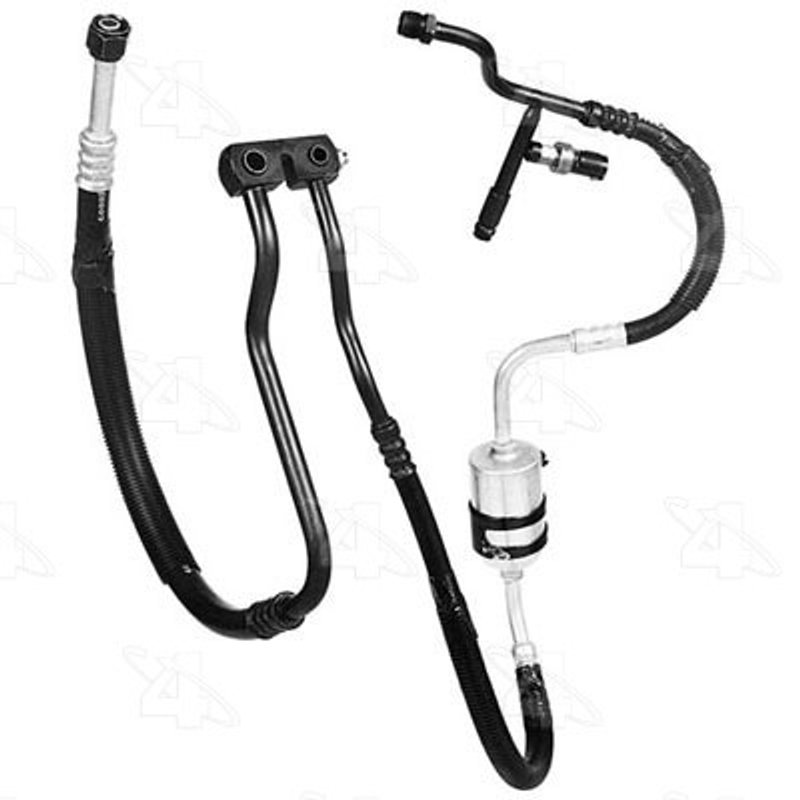

Four Seasons 56206 A/C Refrigerant Discharge / Suction Hose Assembly

Overview of Four Seasons Hose Assembly 56206

The Four Seasons Hose Assembly 56206 is designed specifically for Ford F-150 and F-250 models, providing reliable A/C refrigerant discharge and suction line functionality. Constructed with durable aluminum and rubber materials, this hose assembly supports R134a refrigerant systems and includes essential sealing components for a secure fit.

• Compatible with Ford F-150 and F-250 models
• Constructed from aluminum and rubber for durability
• Designed for R134a refrigerant systems
• Includes green O-rings and gasket for proper sealing
• Features a discharge end with UNF O-ring and P-nut fitting
• Equipped with a suction end UNF O-ring and P-nut fitting
• Includes a muffler and manifold for noise reduction and system efficiency
• Service port with R134a quick disconnect for easy maintenance
• Part number 56206 for precise identification

Four Seasons Hose Assembly Product Line Details

The Four Seasons Hose Assembly product line focuses on delivering reliable HVAC hose and pipe solutions tailored to specific vehicle applications. This line emphasizes compatibility and quality materials, ensuring that each hose assembly meets original equipment (O.E.) replacement standards. The 56206 hose assembly exemplifies this approach by integrating multiple features such as included O-rings, a service port, and a muffler to maintain system integrity and performance.

Detailed Product Description

The Four Seasons 56206 hose assembly combines aluminum and rubber components to withstand the demands of automotive air conditioning systems. It is engineered for use with R134a refrigerant, the standard for many modern vehicles. This assembly includes green O-rings ([24615], [24610], and [24606]) in quantities sufficient to ensure leak-free connections. The discharge and suction ends both utilize UNF O-ring styles with P-nut fittings, facilitating secure attachment to the vehicle’s HVAC system. Additionally, the assembly features a built-in muffler and manifold to reduce noise and improve refrigerant flow. The service port with an R134a quick disconnect allows for straightforward system servicing without the need for additional adapters.

Common Applications and Issues Addressed

• Replacement of worn or leaking A/C refrigerant discharge and suction hoses
• Resolving refrigerant leaks caused by damaged O-rings or fittings
• Restoring proper refrigerant flow in Ford F-150 and F-250 HVAC systems
• Eliminating noise issues related to faulty mufflers in the A/C line
• Facilitating maintenance with integrated service ports for quick refrigerant access

Installation Notes and Tips

• Ensure compatibility with Ford F-150 and F-250 models before installation
• Verify that all included green O-rings are properly seated to prevent leaks
• Use appropriate tools for tightening P-nut fittings to avoid damage
• Check the service port for proper function and accessibility during installation
• Inspect the hose assembly for any signs of damage before installation

Quality Assurance and Warranty

The Four Seasons Hose Assembly 56206 is manufactured to meet original equipment replacement standards, ensuring reliable performance and fitment. The inclusion of all necessary sealing components and the use of durable materials contribute to its longevity. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship.
