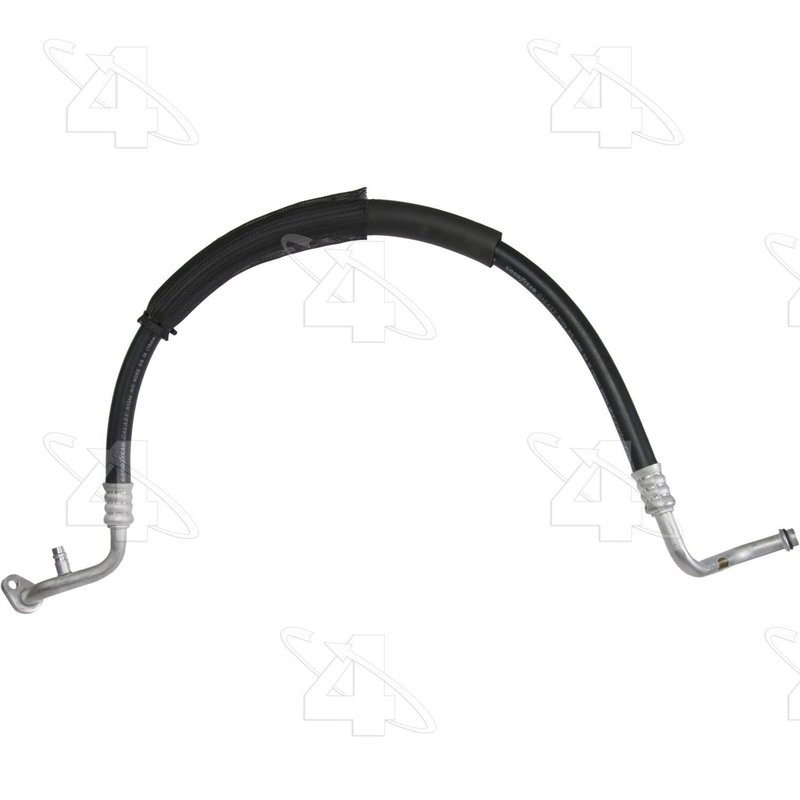

Four Seasons 56506 A/C Refrigerant Suction Hose

Overview of Four Seasons Hose Assembly 56506

The Four Seasons Hose Assembly 56506 is designed specifically for low-pressure A/C refrigerant suction line applications. Engineered with durable aluminum and rubber materials, this hose assembly is compatible with select Chrysler, Dodge, and Plymouth models, including Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager.

• Constructed from aluminum and rubber for durability and flexibility
• Features a flange end and a captured o-ring end for secure connections
• Compatible with R134-a refrigerant systems
• Includes gasket, fittings, and green round o-rings for proper sealing
• Equipped with a 13 mm R134-a quick disconnect service port on the low-pressure side
• OE replacement part ensuring proper fit and function
• Designed without a bracket, muffler, or switch for straightforward installation

Four Seasons Hose Assembly Product Line Details

The Four Seasons Hose Assembly product line focuses on providing reliable hose assemblies for HVAC systems in vehicles. This line emphasizes quality materials and precise fitment to meet OEM specifications. The 56506 hose assembly is part of this line, offering a direct replacement for suction lines in compatible vehicles, ensuring system integrity and performance.

Detailed Product Description

This A/C refrigerant suction hose assembly is built to handle low-pressure refrigerant flow within the HVAC system. The combination of aluminum and rubber materials provides resistance to wear and environmental factors while maintaining flexibility. The hose features a flange on one end and a captured o-ring on the other, with included green round o-rings ([24602] and [24681]) to ensure a tight, leak-free seal. The integrated 13 mm quick disconnect service port allows for efficient servicing of R134-a refrigerant systems without the need for additional adapters. This hose assembly is an OE replacement part, designed to fit Chrysler, Dodge, and Plymouth minivans such as the Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager models.

Common Applications and Issues Addressed

• Replacement of worn or damaged A/C refrigerant suction hoses
• Resolving refrigerant leaks caused by cracked or deteriorated hoses
• Restoring proper low-pressure refrigerant flow in HVAC systems
• Eliminating poor A/C performance due to faulty suction lines
• Ensuring compatibility with R134-a refrigerant systems in specified vehicles

Installation Notes and Tips

When installing the Four Seasons Hose Assembly 56506, ensure all old seals and o-rings are removed and replaced with the included green round o-rings to prevent leaks. The flange and captured o-ring ends should be securely tightened to manufacturer torque specifications. The 13 mm quick disconnect service port facilitates easy connection during servicing but verify that the service port is free of debris before installation. This hose assembly does not include a bracket or muffler, so verify existing mounting points and supports on the vehicle before installation.

Quality Assurance and Warranty

Four Seasons manufactures this hose assembly to meet or exceed OEM standards for fit, form, and function. The part number 56506 is an exact OE replacement, ensuring compatibility with specified Chrysler, Dodge, and Plymouth models. The product includes all necessary fittings and seals for a complete installation. Warranty coverage details should be confirmed with the product supplier or manufacturer, as they may vary.
