Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

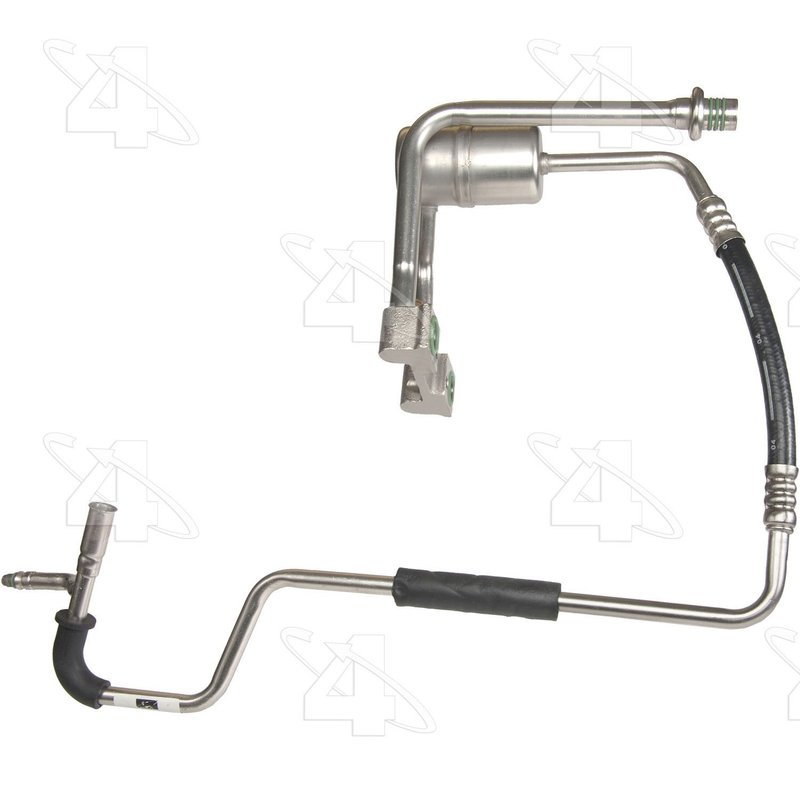

Four Seasons 56570 A/C Refrigerant Discharge / Suction Hose Assembly
| Brand | Four Seasons 56570 |
|---|---|
| Bracket? | w/o Bracket |
| Discharge End IN | 0.500 |
| Discharge End MM | 12.700 |
| Discharge End Style | Female Springlock |
| Discharge End Type | Female Springlock |
| Fittings Included | Not Included |
| Friction Material Attachment | w/ Switch Port |
| Gasket Or Seal Included | Included |
| Manifold? | Yes |
| Material | Steel / Rubber |
| Muffler? | w/ Muffler |
| O-Ring A Number/Desc | [24668] / Green O-Ring |
| O-Ring B Number/Desc | [24672] / Green O-Ring |
| O-Ring C Number/Desc | [24222] / Spring |
| O-Ring D Number/Desc | [24218] / Spring |
| O-Rings Included? | Included |
| O.E. Replacement? | Yes |
| Refrigerant Type | R134a |
| Service Port? | w/o Service Port |
| Suction End IN | 0.750 |
| Suction End MM | 19.050 |
| Suction End Style | Male Springlock |
| Suction End Type | Male Springlock |
| Switch Included? | Not Included |
| Type | Discharge & Suction Line |
| Product line | Hose Assembly |
| Fits | Ford and Mercury · 7 vehicles |
OE replacement. Direct-fit A/C refrigerant line assembly for straightforward service.
Steel / rubber construction. Combines strength and flexibility for dependable refrigerant routing.
Seals included. Comes with O-rings and a gasket for a tighter connection.
Cross-references Dorman - HELP 56570, 282602 and 607265 for the same application. See all 17.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE A/C Hose Assembly for Ford and Mercury
Four Seasons 56570 is an OE replacement A/C refrigerant discharge and suction hose assembly for select Ford Taurus and Mercury Sable applications. Built with steel and rubber construction, it is configured for R134a systems and includes the seals needed for service-ready sealing at the connection points.
Key Features
- Part type: A/C refrigerant discharge / suction hose assembly
- OE replacement design for factory-style HVAC routing
- Steel / rubber construction for durability and flexibility
- R134a refrigerant system application
- Female springlock discharge end, 0.500 in. / 12.700 mm
- Male springlock suction end, 0.750 in. / 19.050 mm
- Includes gasket or seal and O-rings
- Manifold design with muffler
- Switch port provision included; switch not included
- Four Seasons 56570 cross-references Dorman HELP 56570 for the same application
Product Details
Four Seasons Hose Assembly 56570 is built as a discharge and suction line for HVAC service on vehicles using an FS6 compressor layout. It is engineered for direct replacement use on 1986-1989 Mercury Sable and 1986-1989 Ford Taurus applications, including 1989 Ford Taurus and 1986-1987 Ford Taurus. The assembly uses springlock-style connections, a manifold configuration, and an integrated muffler to match the original system layout. Four Seasons 56570 is an OE replacement part intended for R134a refrigerant systems and is identified by part number 56570 for ordering and catalog lookup.
Common Problems This Part Addresses
- Refrigerant loss from cracked, worn, or leaking hose sections
- Improper sealing at springlock hose connections
- HVAC performance issues caused by damaged discharge or suction lines
- Noise or flow irregularities related to a failing hose assembly muffler
- Service concerns on Ford Taurus and Mercury Sable FS6 compressor hose routing
Installation Notes and Tips
Verify the vehicle uses the listed FS6 compressor hose layout before installation. Confirm the discharge and suction end styles match the original connections, and transfer any required system components not included with the hose assembly. Replace seals as needed, evacuate and recharge the system with the correct R134a refrigerant, and inspect the entire A/C circuit for leaks after installation. Use the part number 56570 to confirm the correct Four Seasons hose assembly before service.
Quality Assurance
Four Seasons 56570 is an OE replacement HVAC hose assembly built to match factory-style fitment and connection design for the listed Ford Taurus and Mercury Sable applications. The included seals and O-rings support proper sealing at the hose interfaces, and the part is cataloged for direct replacement use in R134a A/C systems.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1989 | Ford | Taurus | SHO | 3.0L | V6 | N/A | Attaches to top of compressor (FS6); Hose Assembly |
| 1989 | Mercury | Sable | — | 3.0L | V6 | N/A | Attaches to top of compressor (FS6); Hose Assembly |
| 1988 | Mercury | Sable | — | 3.0L | V6 | N/A | Attaches to top of compressor (FS6); Hose Assembly |
| 1987 | Ford | Taurus | — | 3.0L | V6 | N/A | Attaches to top of compressor (FS6); Hose Assembly |
| 1987 | Mercury | Sable | — | — | — | N/A | Attaches to top of compressor (FS6); Hose Assembly |
| 1986 | Ford | Taurus | — | 3.0L | V6 | N/A | Attaches to top of compressor (FS6); Hose Assembly |
| 1986 | Mercury | Sable | — | 3.0L | V6 | N/A | Attaches to top of compressor (FS6); Hose Assembly |
