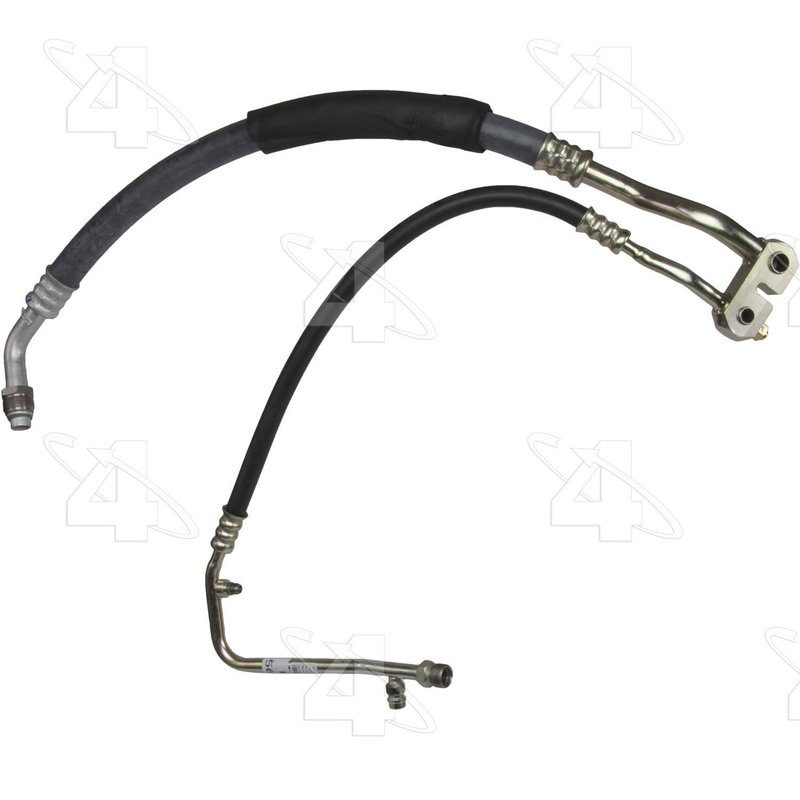

Four Seasons 56683 A/C Refrigerant Discharge / Suction Hose Assembly

Overview of Four Seasons Hose Assembly 56683

The Four Seasons Hose Assembly 56683 is designed specifically for Ford Econoline models, including E-150, E-250, and E-350 variants. This A/C refrigerant discharge and suction hose assembly ensures reliable performance with R134-a refrigerant systems, providing a direct replacement for original equipment.

• Constructed from durable aluminum and rubber materials
• Compatible with Ford E-150 Econoline, E-150 Econoline Club Wagon, E-250 Econoline, E-350 Econoline, E-350 Econoline Club Wagon, and E-350 Super Duty
• Includes green O-rings ([24608], [24612], [24650]) for secure sealing
• Equipped with a male insert o-ring discharge and suction end style
• Features a manifold and R134-a quick disconnect service port with switch port included
• Does not include fittings, bracket, muffler, or switch

Four Seasons Hose Assembly Product Line Details

The Hose Assembly product line by Four Seasons focuses on delivering precise HVAC hose and pipe solutions tailored for specific vehicle applications. This line emphasizes compatibility and quality materials, such as aluminum and rubber, to maintain system integrity and refrigerant containment. The 56683 hose assembly fits within this line by offering a direct OE replacement designed for Ford Econoline models, ensuring proper fit and function within the vehicle's A/C system.

Detailed Product Description

The Four Seasons 56683 hose assembly is engineered for use with R134-a refrigerant systems in Ford Econoline vehicles. It features a combination of aluminum and rubber construction to withstand pressure and temperature variations typical in automotive HVAC systems. The assembly includes three green O-rings for effective sealing at connection points, preventing leaks and maintaining system efficiency. Both the discharge and suction ends utilize male insert o-ring styles, compatible with original equipment standards. The inclusion of a manifold and a quick disconnect R134-a service port with a switch port facilitates serviceability, although fittings, brackets, mufflers, and switches are not included with this assembly.

Common Applications and Issues Addressed

• Replacement of worn or damaged A/C refrigerant discharge and suction hoses
• Resolving refrigerant leaks due to degraded seals or hose material
• Restoring proper refrigerant flow in Ford Econoline R134-a systems
• Addressing issues related to faulty or missing O-rings in the A/C line connections
• Improving system reliability by replacing OEM hoses with direct-fit assemblies

Installation Notes and Tips

• Ensure vehicle compatibility with Ford Econoline E-150, E-250, or E-350 models before installation
• Verify that all included O-rings are properly seated to prevent refrigerant leaks
• Use appropriate tools for disconnecting and reconnecting the R134-a quick disconnect service port
• Inspect surrounding components for wear or damage during installation
• Do not reuse old fittings or brackets as they are not included with this assembly

Quality Assurance and Warranty

The Four Seasons Hose Assembly 56683 is manufactured to meet or exceed original equipment specifications for Ford Econoline vehicles. It includes all necessary O-rings to ensure a secure and leak-free installation. While specific warranty details are not provided, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship, supporting long-term reliability in automotive HVAC applications.
