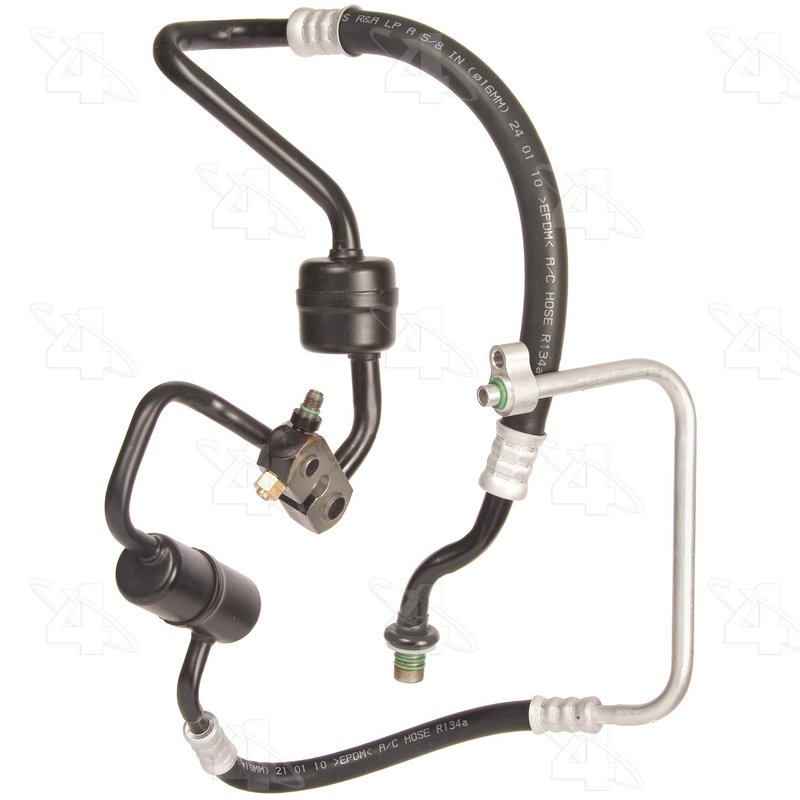

Four Seasons 56696 A/C Refrigerant Discharge / Suction Hose Assembly

Overview of Four Seasons Hose Assembly 56696

The Four Seasons Hose Assembly 56696 is designed specifically for Ford and Mercury vehicles, including the Sable and Taurus models. This A/C refrigerant discharge and suction hose assembly ensures reliable HVAC system performance by maintaining proper refrigerant flow and pressure.

• Constructed from durable aluminum and rubber materials
• Compatible with R134-a refrigerant type
• Includes green O-rings and gasket for secure sealing
• Features a P-nut fitting discharge end and male springlock suction end
• Equipped with a muffler and manifold for noise reduction and system efficiency
• Includes a switch service port but does not come with fittings or brackets
• O.E. replacement part designed for direct fit

Four Seasons Hose Assembly Product Line Details

The Four Seasons Hose Assembly product line focuses on providing high-quality HVAC hoses and pipes engineered for precise fit and function. This line includes assemblies that combine both discharge and suction lines, designed to meet original equipment specifications. The 56696 part exemplifies this approach by integrating essential components such as O-rings, mufflers, and service ports to support efficient air conditioning system operation in compatible vehicles.

Detailed Product Description

This hose assembly is constructed with a combination of aluminum and rubber, offering durability and flexibility necessary for automotive HVAC systems. It is compatible with R134-a refrigerant, the standard for many modern vehicles. The discharge end features a P-nut fitting style, while the suction end uses a male springlock block type connection, measuring 0.625 inches (15.875 mm). The assembly includes multiple green O-rings ([24676], [24649], [24670]) and a spring O-ring ([24220]) to ensure leak-free connections. Additionally, the included gasket and muffler help maintain system integrity and reduce operational noise. Although fittings and brackets are not included, the assembly is designed as a direct O.E. replacement for Ford Sable and Taurus models, as well as Mercury vehicles.

Common Applications and Issues Addressed

• Replacement of worn or damaged A/C refrigerant discharge and suction hoses
• Resolving refrigerant leaks caused by degraded seals or O-rings
• Eliminating noise issues in the HVAC system with the integrated muffler
• Restoring proper refrigerant flow and pressure for efficient cooling
• Upgrading to a reliable hose assembly compatible with R134-a refrigerant

Installation Notes and Tips

• Ensure compatibility with Ford Sable, Taurus, and Mercury models before installation
• Verify that all included O-rings and gasket are properly seated to prevent leaks
• Use appropriate tools for P-nut fitting and male springlock connections to avoid damage
• Check the condition of related HVAC components during installation for optimal performance
• Note that fittings and brackets are not included and may need to be sourced separately

Quality Assurance and Warranty

The Four Seasons Hose Assembly 56696 is manufactured to meet original equipment standards, ensuring a precise fit and reliable operation. The inclusion of multiple O-rings and a gasket supports leak prevention and system durability. While specific warranty details are not provided, Four Seasons products typically adhere to industry quality controls and are backed by manufacturer support for defects in materials and workmanship.
