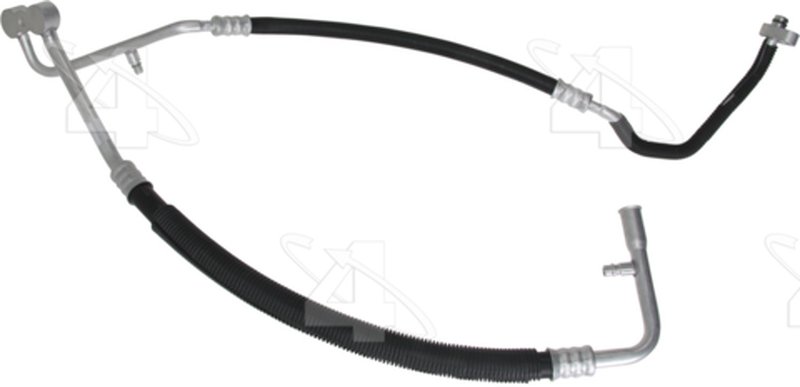

Four Seasons 56817 A/C Refrigerant Discharge / Suction Hose Assembly

Overview of Four Seasons Hose Assembly 56817

The Four Seasons Hose Assembly 56817 is designed specifically for Dodge Ram 2500 and Ram 3500 models, providing reliable A/C refrigerant discharge and suction line functionality. Engineered with durable aluminum and rubber materials, this hose assembly supports R134-a refrigerant systems and includes essential sealing components for a secure fit.

• Constructed from aluminum and rubber for durability and flexibility
• Compatible with R134-a refrigerant systems
• Includes green o-rings and sealing washers for leak prevention
• Features a discharge end with capture o-ring and P-nut fitting
• Equipped with a female springlock suction end and block type connection
• Includes a manifold and R134-a quick disconnect service port
• O.E. replacement part designed for Dodge Ram 2500 and Ram 3500
• Part number 56817 for precise identification

About the Four Seasons Hose Assembly Product Line

The Four Seasons Hose Assembly line focuses on delivering reliable HVAC hose and pipe solutions tailored to specific vehicle applications. This product line emphasizes compatibility and quality, ensuring that each hose assembly meets original equipment specifications. The 56817 hose assembly is part of this line, offering a combination of aluminum and rubber materials with included sealing components to maintain system integrity in Dodge Ram 2500 and Ram 3500 A/C systems.

Detailed Product Description

This A/C refrigerant discharge and suction hose assembly (part number 56817) is engineered to replace original equipment on Dodge Ram 2500 and Ram 3500 trucks. The assembly features a discharge end with a capture o-ring and P-nut fitting, ensuring a secure and leak-resistant connection. The suction end is a 0.625 inch (15.875 mm) female springlock block type, designed for easy installation and reliable sealing. Included are multiple o-rings—green o-rings and sealing washers—to provide a tight seal and prevent refrigerant leaks. The assembly also includes a manifold and a service port with an R134-a quick disconnect, facilitating maintenance and refrigerant charging. Note that fittings and brackets are not included, and the assembly does not come with a muffler or switch.

Common Applications and Issues Addressed

• Replacement of worn or damaged A/C refrigerant discharge and suction hoses on Dodge Ram 2500 and Ram 3500
• Resolving refrigerant leaks caused by degraded o-rings or seals
• Restoring proper refrigerant flow and pressure in R134-a systems
• Addressing issues related to faulty or missing service ports for maintenance access
• Eliminating connection failures due to damaged fittings or hose material deterioration

Installation Notes and Tips

• Ensure compatibility with Dodge Ram 2500 and Ram 3500 models before installation
• Use the included green o-rings and sealing washers to prevent leaks
• Verify that the discharge end’s capture o-ring and P-nut fitting are properly seated
• Confirm the suction end’s female springlock connection is securely engaged
• Check the service port for proper quick disconnect operation during maintenance
• Note that fittings and brackets are not included and may need to be sourced separately

Quality Assurance and Warranty

The Four Seasons Hose Assembly 56817 is an original equipment replacement part designed to meet or exceed manufacturer specifications for Dodge Ram 2500 and Ram 3500 HVAC systems. The product includes all necessary sealing components to ensure a reliable, leak-free installation. While specific warranty details are not provided, Four Seasons products typically adhere to industry standards for quality and durability.
