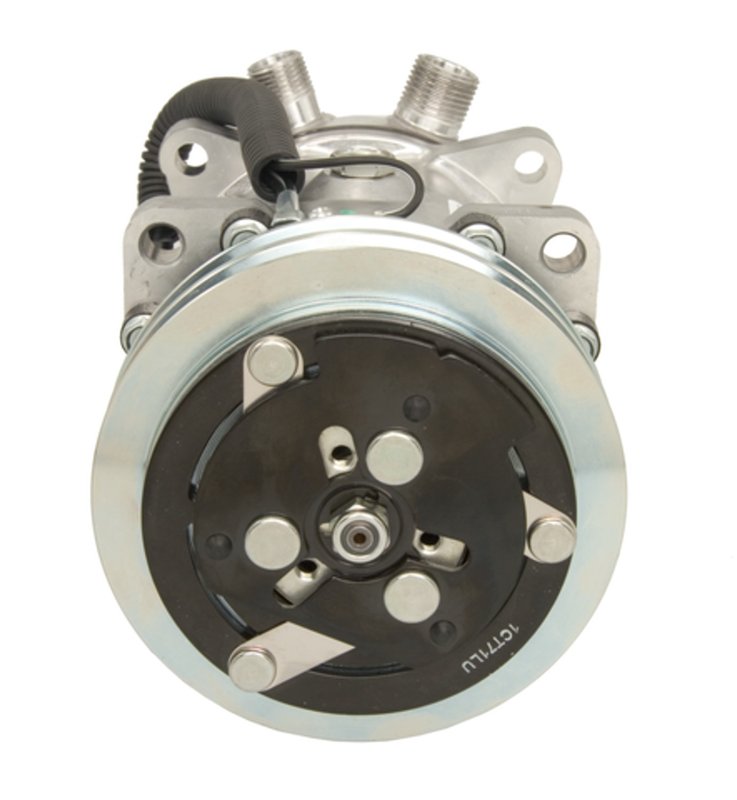

Four Seasons 58701 A/C Compressor

Overview of Four Seasons New Compressor 58701

The Four Seasons New Compressor 58701 is designed for automotive HVAC systems requiring reliable air conditioning performance. Engineered to work with R134a refrigerant and compatible with Pag 100 oil, this A/C compressor supports efficient cooling in various vehicle makes and models.

• Compatible refrigerant type: R134a
• Includes oil pre-filled (Pag 100 compatible)
• Compressor type: SD7H15 with 12V coil voltage
• Includes clutch assembly with 5.125-inch maximum diameter
• Serpentine belt pulley with 2 grooves and 0.5-inch belt width
• Ear mount installation with precise mounting distances
• Pin-type electrical terminal with 1 wire lead coil clock position
• Discharge port and compressor head use O-ring seals

Four Seasons New Compressor Product Line Details

The Four Seasons New Compressor line offers brand-new, direct replacement compressors designed to meet or exceed OEM specifications. This product line focuses on delivering reliable performance and durability for automotive air conditioning systems. The 58701 model is part of this line, providing a complete compressor solution including the clutch and oil fill, optimized for vehicles using R134a refrigerant.

Technical Description and Specifications

This Four Seasons A/C compressor features the SD7H15 compressor type, known for its compatibility with many domestic and import vehicles. The unit is pre-filled with Pag 100 oil, ensuring proper lubrication and extended compressor life. The clutch assembly is included, with a maximum diameter of 5.125 inches and a pulley designed for serpentine belts with two grooves. The pulley diameter measures approximately 130 mm, and the belt width is 12.7 mm (0.5 inches). The compressor mounts via an ear mount system, with mounting distances precisely specified for accurate fitment. Electrical connection is via a pin-type terminal with a single wire lead coil clock position, operating at 12 volts. The discharge port and compressor head use O-ring seals to maintain system integrity and prevent leaks.

Common Applications and Problem Resolution

• Replacement for failed or leaking A/C compressors in vehicles using R134a refrigerant
• Restores proper air conditioning function when clutch engagement is faulty
• Solves issues related to worn or damaged compressor pulleys and belts
• Addresses oil contamination or depletion problems by including pre-filled compatible oil
• Eliminates refrigerant leaks caused by damaged O-ring seals on compressor ports

Installation Notes and Tips

Ensure compatibility with your vehicle’s make and model before installation. The Four Seasons 58701 compressor requires an ear mount installation and uses a serpentine belt with two grooves. Verify the clutch maximum diameter and pulley dimensions match your vehicle’s specifications. The unit comes pre-filled with Pag 100 oil, so additional oil is typically not necessary. Note that mounting hardware is not included and must be sourced separately. Properly torque mounting bolts and check electrical connections to the pin-type terminal for secure fitment. Replace O-rings as needed to maintain a leak-free system.

Quality Assurance and Warranty

The Four Seasons New Compressor 58701 is a new, direct replacement part manufactured to meet industry standards for durability and performance. It includes a clutch and is pre-filled with compatible refrigerant oil to ensure reliable operation. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
