OE Quality
60-Day Returns

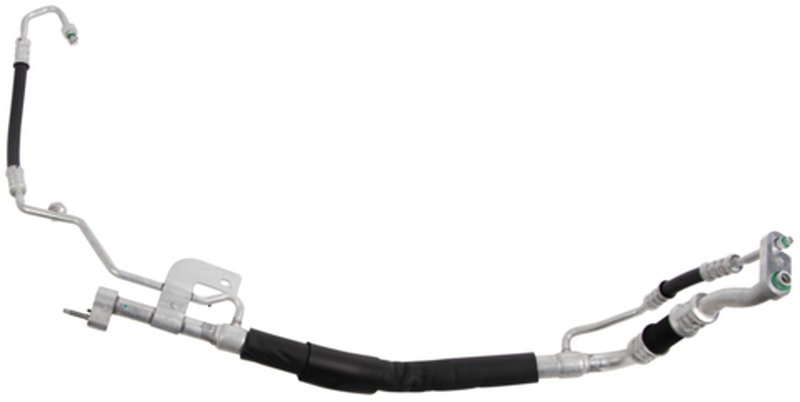

Four Seasons 63007 A/C Suction and Liquid Line Hose Assembly
Genesis G80 A/C Hose Assembly
Four Seasons 63007 is an A/C suction and liquid line hose assembly built for the 2018-2020 Genesis G80. It combines aluminum and rubber construction with an integrated IHX style to support refrigerant flow in the HVAC system.
Four Seasons hose assemblies are engineered and tested for dependable operation, drawing on more than 50 years of mobile A/C experience. This Four Seasons 63007 hose assembly is specified for R134A and R1234YF refrigerant systems and includes the gasket or seal needed for the connection points.
Key Features
- Part number 63007 A/C suction and liquid line hose assembly
- Compatible With 2018-2020 Genesis G80, hose assembly application
- Aluminum / rubber construction for HVAC routing
- Style: hose assembly with IHX
- End 1: P-nut fitting; End 2: flange
- Refrigerant type: R134A and R1234YF
- Switch service port: yes
- Gasket or seal included
- Fittings included
- Without bracket
Product Details
This Four Seasons 63007 hose assembly is designed for the Genesis G80 HVAC system where a suction and liquid line connection is required. The aluminum and rubber design supports the routing and sealing needs of the air conditioning circuit, while the integrated IHX style reflects the original system layout used on the application. This part cross-references Hyundai/Kia OE numbers 97775B1100 and 212701 for the same application.
Common Problems This Part Can Address
- Refrigerant line leakage at the hose assembly connection points
- Damaged or deteriorated A/C hose material
- Improper sealing at the flange or P-nut fitting
- HVAC performance loss caused by a compromised suction and liquid line
- Service issues on Genesis G80 A/C line routing
Installation Notes and Tips
Verify the vehicle’s refrigerant system type before installation and confirm the end connections match the original hose routing. Replace any disturbed seals during service, and inspect mating surfaces for wear, corrosion, or contamination before assembly. Because this part includes a switch service port but no service port, confirm the system service procedure for the specific Genesis G80 application.
Quality Assurance
Four Seasons states that its mobile A/C products are engineered and tested for years of trouble-free operation. Backed by more than 50 years of mobile air conditioning experience, the brand positions this hose assembly as a direct-fit service part for the listed Genesis G80 applications.
| Brand | Four Seasons |
|---|---|
| Part Number | 63007 |
| Position | Hose Assembly |
| Material | Aluminum / rubber |
| End 1 Type | P-nut fitting |
| End 2 Type | Flange |
| Refrigerant Type | R134a r1234yf |
| Gasket Or Seal Included | Included |
| Switch Service Port | Yes |
| Fittings Included | Included |
| Bracket? | W/o bracket |
| Description | Hose assemblies |
| Muffler? | No |
| Service Port Included | No |
| Style | Hose assembly w/ ihx |
| Type | Suction & liquid line |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Genesis | G80 | 3.8L | V6 | N/A | Hose Assembly |
| 2019 | Genesis | G80 | 3.8L | V6 | N/A | Hose Assembly |
| 2018 | Genesis | G80 | 3.8L | V6 | N/A | Hose Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
