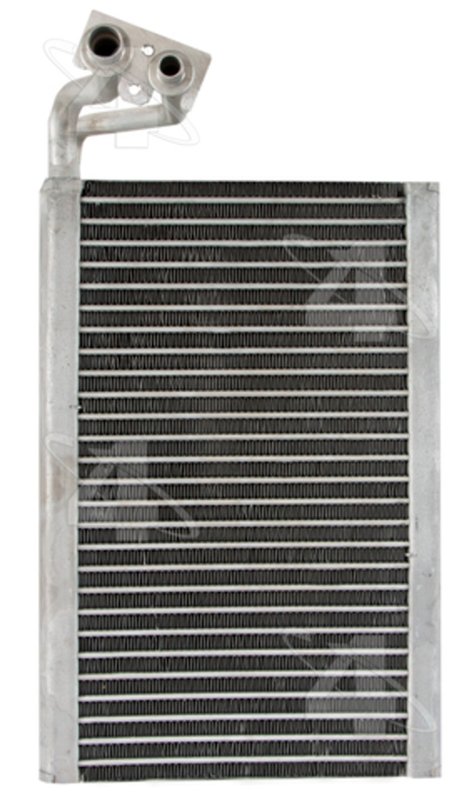

Four Seasons 64016 A/C Evaporator Core - Front

Overview of Four Seasons Evaporator Core 64016

The Four Seasons Evaporator Core 64016 is designed for reliable HVAC performance in select Chrysler, Dodge, Ram, and Volkswagen vehicles. This A/C evaporator core ensures efficient cooling by effectively managing refrigerant flow within the vehicle's air conditioning system.

• Dimensions: 8.23 inches width, 12.17 inches height, 2.75 inches depth
• Core size: 200 mm width, 300 mm height, 65 mm depth
• Inlet fitting: No. 8 flange type
• Outlet fitting: No. 10 flange type
• Material: Durable aluminum construction
• Type: Parallel flow evaporator core

Detailed Product Description

The Four Seasons Evaporator Core 64016 is engineered with a parallel flow design to optimize refrigerant distribution and heat exchange efficiency. Constructed from aluminum, this evaporator core offers corrosion resistance and durability for long-term use. The core dimensions of 8.23 inches in width, 12.17 inches in height, and 2.75 inches in depth provide a precise fit for compatible vehicles. The inlet and outlet fittings both use flange types, with the inlet fitting having an outside diameter of No. 8 and the outlet fitting No. 10, ensuring secure connections within the HVAC system.

Compatible Vehicles and Applications

This evaporator core is compatible with several models including the Chrysler C/V, Dodge Grand Caravan, Volkswagen Routan, and Chrysler Town & Country. It is specifically designed to replace the original evaporator core in these vehicles, maintaining proper air conditioning performance and system integrity.

• Restores efficient cooling in Chrysler C/V and Town & Country models
• Replaces worn or leaking evaporator cores in Dodge Grand Caravan
• Ensures proper refrigerant flow in Volkswagen Routan HVAC systems
• Addresses issues related to reduced airflow or insufficient cabin cooling

Installation Notes and Tips

Installation of the Four Seasons Evaporator Core 64016 requires removal of the vehicle’s HVAC housing to access the evaporator core. It is recommended to have the system evacuated and recharged by a certified technician to ensure proper refrigerant handling. Verify the flange fittings match the vehicle’s existing connections to avoid leaks. Proper sealing and alignment during installation are critical for optimal performance.

Quality Assurance and Warranty

Four Seasons products, including the Evaporator Core line, are manufactured to meet or exceed OEM specifications. The aluminum construction and parallel flow design contribute to durability and consistent performance. While specific warranty details for part number 64016 should be confirmed at the point of purchase, Four Seasons typically offers limited warranties covering defects in materials and workmanship.
